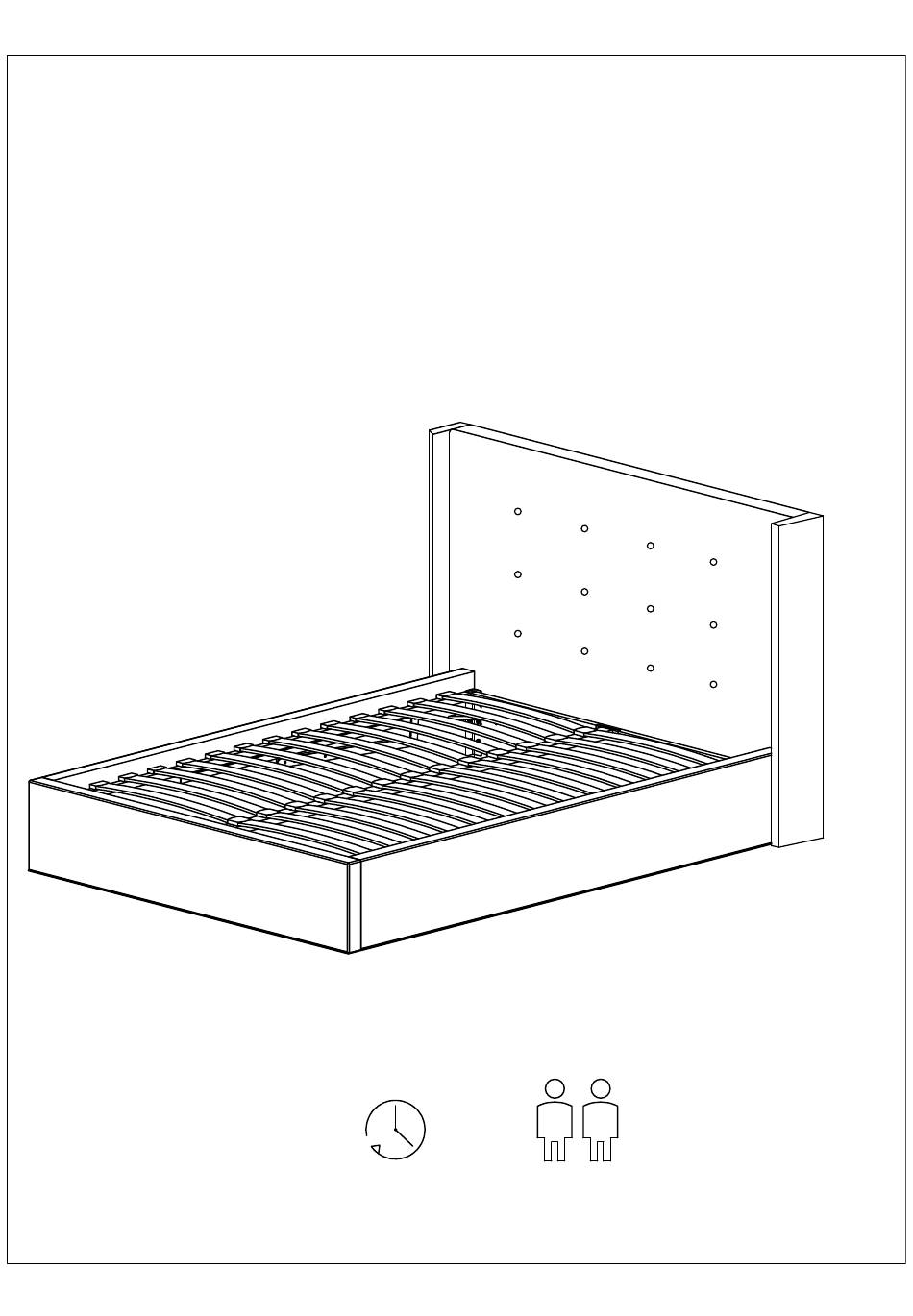

- Page 1 DUSK Dakota Ottoman Bed Frame Double/ King Up to 2 hour approx Two person assembly assembly time Page 1 V2.0...
-
Page 2: Assembly Tip
Important Assembly Tip Before you begin, it's best to identify all of the parts and fittings to build your ottoman bed frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. - Page 3 Operating Your Ottoman Bed Frame Safely · Caution, this ottoman bed frame uses a pressurised mechanism. · Please ensure children and animals are kept away from the ottoman bed frame when operating the mechanism. · Use caution when operating, and always use two hands at arm's length.
- Page 4 Parts Before you begin building your ottoman bed frame, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Page 4...
-
Page 5: Parts Checklist
Parts Check List Parts List Parts List 4pcs Headboard Angle Corner Bracket Footboard Holding Block Slde Rall with Lift Mechanism - Strap Slde Rall with Lift Mechanism - 26/30pcs Slat Side Slat Cap Double/king 26/30pcs 4pcs Adjustable leg Front/Rear Ottoman Metal Centre Slat Cap Double/ 13/15pcs 2pcs... - Page 6 Step 1: Firstly secure 2 x feet (part 5) to the base of the headboard, followed by attaching the headboard wings (parts 17 & 18) to the headboard (1) by fastening the Headboard wing bracket (M) with screw A, followed by unzipping the headboard rear to secure with 6 x screw K.
- Page 7 Step 2: Loosely fasten 6 x bolt A, using washer F and G, to the Footboard (2) leaving a 1cm (10mm) gap to allow for siderail attachment in step3. 6pcs 6pcs 6pcs A F G CORRECT WRONG NB: Before tightening the bolts, please ensure the bed frame is square Step 3: Attach the Left &...
- Page 8 Step Fasten the second holding block to the Footboard using bolt B. Followed by adding the corner bracket (10) to each corner using bolt D. 2pcs 8pcs Step 5: Open the left and right lift mechanism by removing the plastic cap on the lift mechanism, fasten the bottom of the gas lift to the frame using bolt E 2pcs Leave the ottoman bed frame in an elevated position.
- Page 9 Carefully place the bed frame on its side to apply the fabric base (16) Step 6: followed by attaching the legs (5). We recommend doing this on the box the bed came in to protect it and your floor. Attach the Rear Ottoman Metal Frame (6) to the Left and Right Hand Side Step 7: Rails pre-attached to the lift mechanism on the side rails.
- Page 10 Attaching the Horizontal Support Rails (7) to the Left & Right Side Step 8: Rails using bolt C. 6pcs Step 9: Attach the Central Support Rail (8) to the Rear Ottoman Metal Frame (6) using bold D. 2pcs Page 10...
- Page 11 Attach the Front Ottoman Metal Frame (6) to the left and right hand Step 10: Side Rails with Plastic Corner Brackets (9). Followed by fastening the Central Support Rail using bolt D 2pcs 2pcs Page 11...
-
Page 12: Care And Maintenance
Step 11: Attaching the Slats & Strap to the Ottoman Metal Frame Side Slat Caps Double/King 26/30 pcs Centre Slat Caps Double/King 13/15 pcs Push down firmly on the Slat Caps into the pre-drilled holes on the Ottoman Metal Frame. It is recommended to push the Centre Slat Caps into position before pushing down on the Side Slat Caps. - Page 13 Gas strut/piston best use: · Use caution when operating - always use two hands. · Only attempt to close the ottoman frame, once the mattress has been placed on the frame. · The thicker side of the cylinder should be above the thinner side- this will increase longevity of the part.
- Page 14 DUSK Dakota Ottoman Bed Frame Super King p to 2 hours Two person assembly assembly time Page 1 V2.0...
- Page 15 Important Assembly Tip Before you begin, it's best to identify all of the parts and fittings to build your ottoman bed frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.
- Page 16 Operating Your Ottoman Bed Frame Safely · Caution, this ottoman bed frame uses a pressurised mechanism. · Please ensure children and animals are kept away from the ottoman bed frame when operating the mechanism. · Use caution when operating, and always use two hands at arm's length.
- Page 17 Parts Before you begin building your ottoman bed frame, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Page 4...
- Page 18 Parts Check List Parts List Parts List 4pcs Headboard Angle Corner Bracket Footboard Holding Block Slde Rall with Lift Mechanism - Strap Slde Rall with Lift Mechanism - Slat 45pcs Side Slat Cap Double/king 30pcs 4pcs Adjustable leg Front/Rear Ottoman Metal Centre Slat Cap Double/ 2pcs 30pcs...
- Page 19 Step 1: 6pcs 8pcs 14pcs 2pcs Page 6...
- Page 20 Loosely fasten 6 x bolt A, using washer F and G, to the Footboard (2) Step 2: leaving a 1cm (10mm) gap to allow for siderail attachment in step3. 6pcs 6pcs 6pcs A F G CORRECT WRONG NB: Before tightening the bolts, please ensure the bed frame is square Attach the Left &...
- Page 21 Fasten two holding blocks to the Footboard using bolt B. Step Followed by adding the corner bracket to each corner using bolt D. 6pcs 8pcs cap on the Step 5: lift mechanism 2pcs Leave the ottoman bed frame in an elevated position. Page 8...
- Page 22 Carefully place the bed frame on its side to apply the fabric base (16) followed by attaching the legs (5) Step 6: Attach the Legs (5) to the base and tighten. Step 7: 2pcs Attach the Rear Ottoman Metal Frame (6) to the Left and Right Hand Side Rails with the Plastic Corner Brackets (9).
- Page 23 Attaching the Horizontal Support Rails (7) to the Left & Right Side Step 8 Rails 6pcs Attach the Central Support Rail (8) to the Rear Ottoman Metal Frame (6) Step 9: using bold D. 4pcs Page 10...
- Page 24 Attach the Front Ottoman Metal Frame (6) to the left and right hand Step 10: Side Rails with Plastic Corner Brackets (9). Followed by fastening the Central Support Rail using bolt D 2pcs 4pcs Page 11...
-
Page 25: Maintenance
Attaching the Slats & Strap to the Ottoman Metal Frame Step 11: Side Slat Caps Super King 30pcs Centre Slat Caps Super King 30pcs Push down firmly on the Slat Caps into the pre-drilled holes on the Ottoman Metal Frame. It is recommended to push the Centre Slat Caps into position before pushing down on the Side Slat Caps. - Page 26 Gas strut/piston best use: · Use caution when operating - always use two hands. · Only attempt to close the ottoman frame, once the mattress has been placed on the frame. · The thicker side of the cylinder should be above the thinner side- this will increase longevity of the part.
