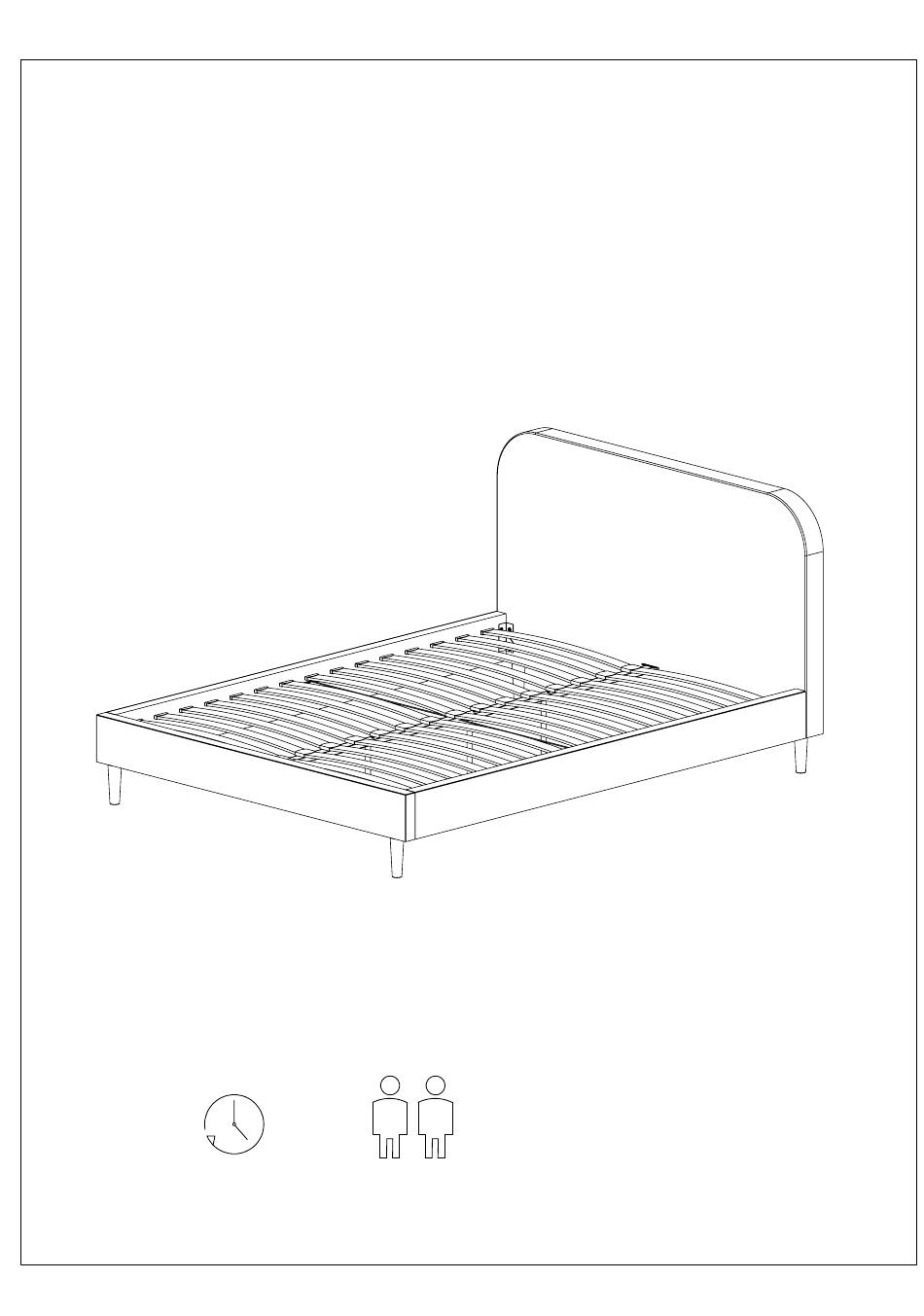

- Page 1 DUSK Ascot Bed Frame Double/Kin Two person p to 2 hours assembly assembly time V1.0 Page 1...
-
Page 2: Assembly Tip
Important Assembly Tip Before you begin, it's best to identify all of the parts and fittings to build your bed frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new bed frame in the room you'd like it to be located. - Page 3 Parts B efore you begin building your bed frame, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Page 3...
-
Page 4: Parts Checklist
Parts Check List Parts List Parts List 3pcs Headboard Central Support Leg Footboard 26/30pcs Slat Double/King 26/30pcs 2pcs Side Cap Double/King Side Rail 13/15pcs 4pcs Centre Slat Cap Double/King Horizontal Support Rail Central Support Rail Fittings Please check you have all the fittings listed below with your product. Flat Washer 8pcs M6 15mm Bolt 6pcs Spring Washer 8pcs... - Page 5 Step 1: Screwing the Legs to the Headboard & Footboard Attaching the Side Rails to the Headboard and Footboard Step 2: 8pcs 8pcs 8pcs NB: The Angle Brackets are pre-attached. CORRECT WRONG Page 5 NB: Before tightening the bolts, please ensure the bed frame is square...
- Page 6 Step 3: Attaching the Horizontal Support Rail to the Side Rails 4pcs Step 4: Attaching the Central Support Legs to the Central Support Rail 6pcs 6pcs 2pcs C C C C C C Page 6...
- Page 7 Attaching the Central Support Rail to the Headboard & Footboard Step 5: 4pcs Step 6: Attaching the Slat Caps & Slats to the Bed Frame Centre Slat Caps Double/King 13/15 pcs Side Slat Caps Double/King 26/30 pcs It is recommended to slot the Side Slat Caps into position before pushing down on the Centre Slat Caps.
-
Page 8: Care And Maintenance
Care and Maintenance Here are some good tips to keep your new bed frame in tip-top condition. Cleaning To clean your new bed frame, we advise using a damp cloth if the fabric is dusty or a low suction vacuum. Do not use abrasive chemicals or bleach as this may damage the product. Checking and Moving Periodically, we recommend you check that the screws and fixtures haven't become loose over time. - Page 9 DUSK Ascot Bed Frame Super Kin Two person p to 2 hours assembly assembly time V1.0 Page 1...
- Page 10 Important Assembly Tip Before you begin, it's best to identify all of the parts and fittings to build your bed frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new bed frame in the room you'd like it to be located.
- Page 11 Parts B efore you begin building your bed frame, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Page 3...
- Page 12 Parts Check List Parts List Parts List 6pcs Headboard Central Support Leg 45pcs Slat Super King Footboard Side Cap Super King 30pcs Side Rail 2pcs 4pcs Centre Slat Cap Super King 30pcs Central Support Rail Horizontal Support Rail 2pcs Fittings Please check you have all the fittings listed below with your product.
- Page 13 Step 1: Screwing the Legs to the Headboard & Footboard Attaching the Side Rails to the Headboard and Footboard Step 2: 8pcs 8pcs 8pcs CORRECT WRONG Page 5 NB: Before tightening the bolts, please ensure the bed frame is square...
- Page 14 Step 3: Attaching the Horizontal Support Rail to the Side Rails 4pcs Step 4: Attaching the Central Support Legs to the Central Support Rails 12pcs 12pcs 2pcs NB: Repeat this step for the other Central Support Rail C C C C C C C C C C Page 6...
- Page 15 Attaching the Central Support Rail to the Headboard & Footboard Step 5: 8pcs Step 6: Attaching the Slat Caps & Slats to the Bed Frame Centre Slat Caps Super King 30pcs Side Slat Caps Super King 30 pcs It is recommended to slot the Side Slat Caps into position before pushing down on the Centre Slat Caps.
- Page 16 Care and Maintenance Here are some good tips to keep your new bed frame in tip-top condition. Cleaning To clean your new bed frame, we advise using a damp cloth if the fabric is dusty or a low suction vacuum. Do not use abrasive chemicals or bleach as this may damage the product. Checking and Moving Periodically, we recommend you check that the screws and fixtures haven't become loose over time.
