Seneca S6001-RTU Installation Manual

Straton multifunction rtu with 3g router and embedded i/o
Hide thumbs Also See for S6001-RTU:
Table of Contents

Advertisement

Quick Links

Download this manual
Manual Language
Seneca line product
Product
Description
Contents:
1.
2.
3.
4.
5.
6.
7.
Display panel installation
8.
9.
10.
11.
12.
Dimensioni e ingombri
13.
Factory
Site
Mail
This document is property of SENECA srl. Duplication and reproduction are forbidden, if not authorized.
The content of the present documentation refers to products and technologies described in it. All
technical data contained in the document may be modified without prior notice. Content of this
documentation is subject to periodical revision.
INSTALLATION MANUAL
MI004150-E.DOCX

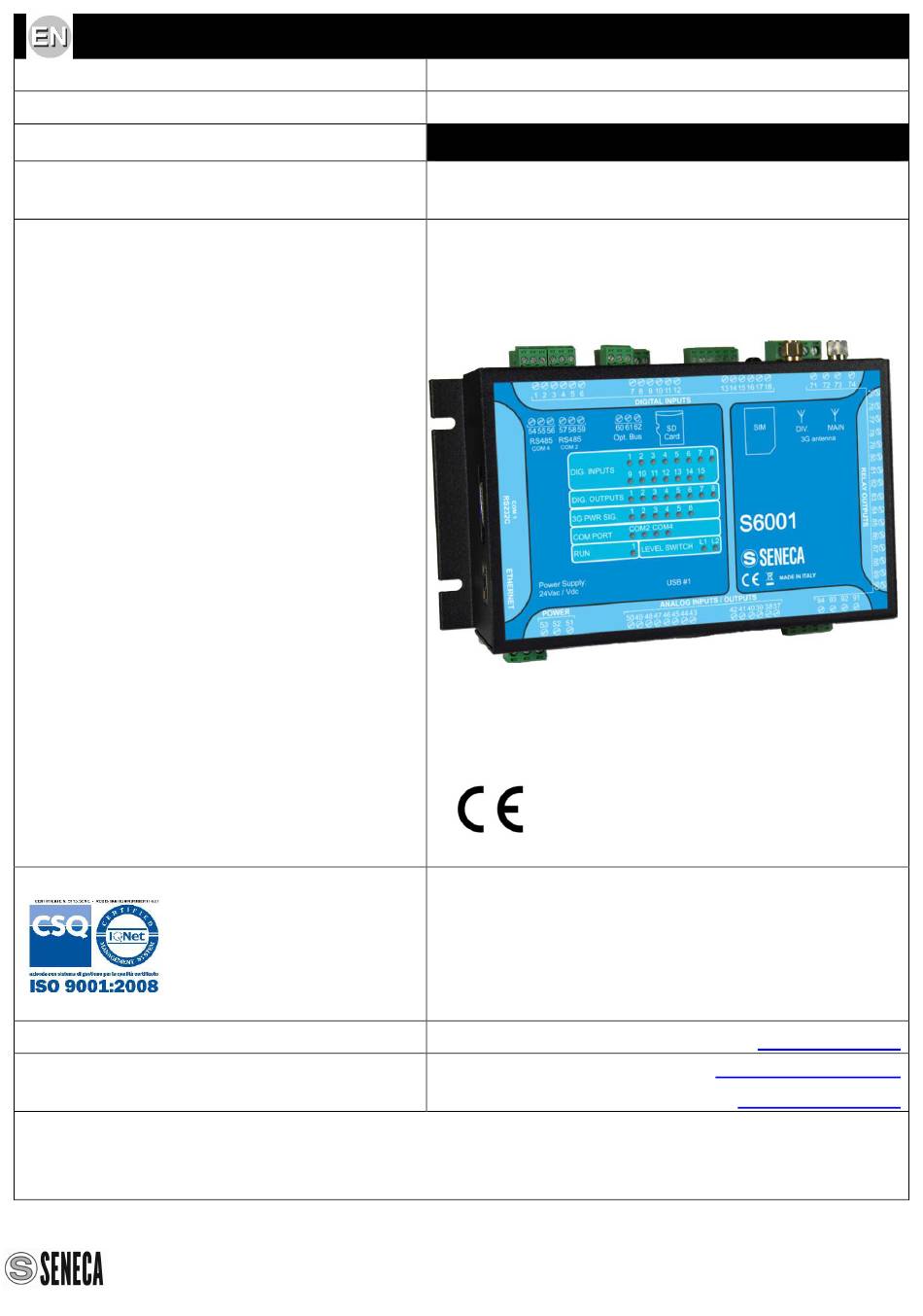

Straton multifunction RTU
with 3G Router and Embedded I/O
Headquarters: Via Austria 26
35127 - Z.I. - Padova - IT
Phone: +39.049.8705355- 8705355
Fax +39 049.8706287
Technical support:
Product Informations:
ENGLISH
S
S6001-RTU
Seneca srl
www.seneca.it
support@seneca.it
sales@seneca.it
ENGLISH 1/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S6001-RTU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seneca S6001-RTU

Summary of Contents for Seneca S6001-RTU

  • Page 1: Table Of Contents

    Product Informations: sales@seneca.it This document is property of SENECA srl. Duplication and reproduction are forbidden, if not authorized. The content of the present documentation refers to products and technologies described in it. All technical data contained in the document may be modified without prior notice. Content of this documentation is subject to periodical revision.

  • Page 2: Preliminary Warnings

    Specific documentation is available at website: www.seneca.it/products/s6001-rtu Only the Manufacturer is authorized to repair the module or to replace damaged parts. The product is susceptible to electrostatic discharge, take appropriate countermeasures during any operation.

  • Page 3: Technical Specifications

    Technical specifications 3.1 Power supply Power Supply 24 VA/C ± 15% @ 50/60Hz Consumption 10 VA max , 6 VA typical Cable section for Connectors Screw terminal 0.2 – 2.5 mm2 (AWG 24-12) Isolation 1500 V 3.2 CPU and memory 32 bits, 400MHz CPU I/O 8 bits, 24 MHz...
  • Page 4 3.7 Communication ports and storage device Ethernet 10/100 Base Tx with RJ45 connector RS485 #COM2 Isolated port 110 to 115200 bit/s RS485 #COM4 Isolated port 110 to 115200 bit/s RS232 #COM1 Full handshaking signal port from DB9 male connector USB#1 host USB A maximum current 300 mA SD card MicroSD max 32 GB storage...
  • Page 5 5.2 Analog inputs and outputs IOA1 Current analog output VOA2 Voltage analog output IIA1-IIA2-IIA3-IIA4: Screw terminals from 43 to 46 are available for analog current inputs (0 to 20 mA) active sensors. Screw terminal 49 is a supply output (+12VC C C C ) for passive current sensor. IOA1: It is available between 47 and 50 screw analog current output (0 to 20 mA)

  • Page 6: Installation Standards

    Installation Standards For the best performance and long life never install the device near heat sources. We suggest installing the product at the bottom of the control panel. Installation and removal from IEC EN 60715 rail A= DIN rail support B= DIN rail support 1= S6001 2= Rail IEC EN 60715...
  • Page 7 5.4 Alarm Output Use the supply voltage (12 VC Max. 50mA) from screw terminals 38 and 37 to connect for example an acoustic alarm. The screw terminal 39 must be not connected. 5.5 Digital Outputs The 8 relays SPDT has operating voltage 250 VA @ 3 A. 5.6 Digital Inputs 15 Digital Inputs are available from 1 to 18 screw terminals.
  • Page 8 5.7 Ethernet and Display Ethernet communication port is available on the left side of S6001 from RJ45 connector. Ethernet communication can be used to connect a HMI display like the Seneca VISUAL 4, DCS or SCADA device. 5.8 RS232 RS232 with full handshaking signals is available from DB9 male connector in the left side of S6001.

  • Page 9: Frontal Led Segnalling

    Frontal LED signalling Groups Number Colour Status Meaning Digital Inputs 1,2,3,4,5,6,7,8,9, Green Close Activated 10,11,12,13,14,15 Open Digital 1,2,3,4,5,6,7,8 Close Activated outputs Open 3G power 2,3,4,5,6 Yellow LED6 ON = Max Signal LED1 Blink. = min. Blinking Comm. Port RX, TX Blinking Activity RS485 COM2...

  • Page 10: Ports Map

    Ports map RS 232c I, L Relay outputs Ethernet M, N, O Digital inputs Power supply P, Q RS485 Analog inputs / outputs Optonal Bus Relay outputs microSD card slot USB #1 Host SIM card slot Diversity antenna Main antenna Accessories CS-DB9F-DB9F DB9F- DB9F serial cable...

  • Page 11: Decommissioning And Disposal

    For configuration, please use S6001-RTU web pages or Z-NET4 SW available for download at website: www.seneca.it. For more information please read the USER MANUAL. Decommissioning and disposal Disposal of Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collections programs).
