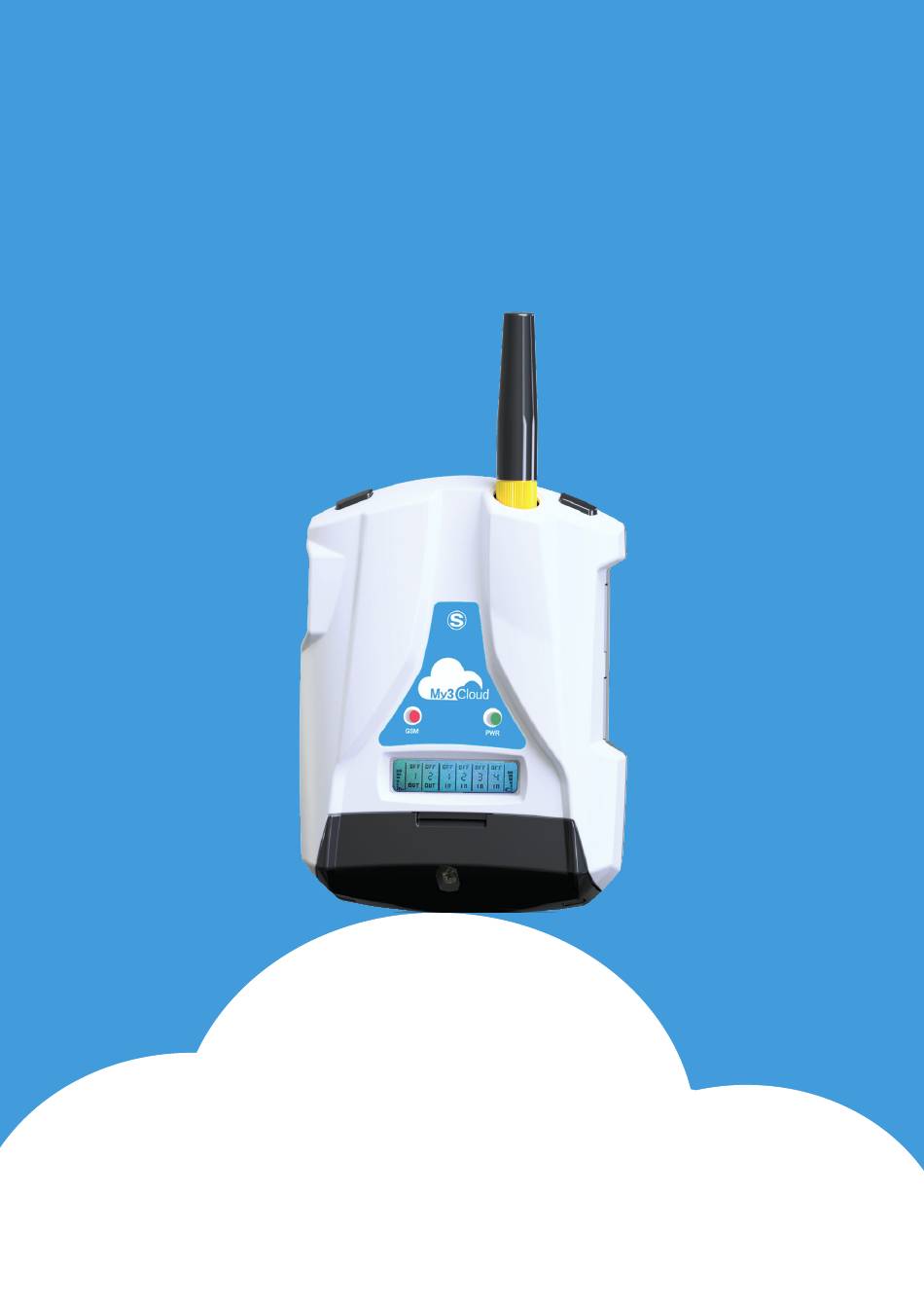

- Page 1 MyAlarm3 Cloud INSTALLATION MANUAL My3 Cloud MI00535-4-EN...
- Page 2 My3 Cloud MI00535-4-EN...
-
Page 3: Table Of Contents
CONTENTS 1-WARNINGS SAFETY REGULATIONS 2-PRODUCT DESCRIPTION 3-PACKET CONTENT 4-CONTROL UNIT OPERATION 5-CONTROL UNIT INSTALLATION 6-ELECTRICAL CONNECTIONS 7-DISPLAY FUNCTIONS AND USE 8-CLOUD SERVICE ACTIVATION AND MANAGEMENT 9-GPS ANTENNA INSTALLATION 10-EXTERNAL NTC PROBE INSTALLATION 11-TROUBLESHOOTING My3 Cloud MI00535-4-EN... -
Page 4: 1-Warnings Safety Regulations
• Do not apply different voltages or higher voltages than indicated between terminals, or between any terminal and earth (voltages greater than 50Vdc). • Do not use the MyAlarm3 Cloud control unit if damaged, or if signs of possible damage are visible on it. -
Page 5: 2-Product Description
ASSEMBLY REGULATIONS If the purchased model has GPS. For optimum reception of the GPS signal given by satellites, it is better to place the MyAlarm3 Cloud vertically in an area not covered by metal structures. SYMBOLS ON THE ENCLOSURE... - Page 6 Temperature sensor NTC internal (as standard), external (option) thermistor Ambient conditions Seneca recommends use at 0 to 45°C for correct operation With the power supply present: -20 .. +55°C Temperature With use of the battery (when discharged): -20 .. 45°C. Charging is possible in the range: 0 ..
- Page 7 2-PRODUCT DESCRIPTION MyAlarm3 Cloud control unit Technical characteristics: • Display LCD 128 x 32 Dots • Rechargeable Li-Io buffer battery, up to 8 hours’ autonomy • GSM/GPRS antenna • Slot for mini SIM (15x25 mm) • Internal GPS module with built-in antenna (OPTION) •...
-
Page 8: 3-Packet Content
3-PACKET CONTENT 1 - MyAlarm3 Cloud control unit 2 - NTC sensor for temperature measurement (Included in the control unit) 3 - Installation manual 4 - Power supply unit 12 V 5 - Coupling system for the control unit (wall or DIN rail) -
Page 9: 4-Control Unit Operation
4-CONTROL UNIT OPERATION Connection to the Seneca Cloud system Stylus antenna Internal GPS antenna If present in the purchased model Cable for power supply on 230 V socket Accessory supplied NTC probe for temperature measurement probe length 5 cm, accessory supplied... -
Page 10: 5-Control Unit Installation
SD card; Switching on and menu keys: 2. Insert the micro SD card into the MyAlarm3 Cloud control unit; MyAlarm3 Cloud is fitted with an 3. Power the control ON/OFF PWR key positioned in the 4. Wait for the message confirming LH top corner (Figure 3). - Page 11 5-CONTROL UNIT INSTALLATION N.B.: in order to guarantee the correct operation of the MyAlarm3 Cloud control , THE CONTENT OF THE SD CARD MUST NOT BE REMOVED unit Follow the instructions below to update the firmware via the app: 1. From the “home” screen, select “settings” via the dedicated icon 2.
-
Page 12: 6-Electrical Connections
6-ELECTRICAL CONNECTIONS TERMINAL BLOCK CONTACT KEY USE OF THE PUSH-WIRE TERMINALS Insertion of a rigid cable AUX 1 Press Recommended Common to the two relays down flaying: AUX 2 8-9 mm DIN 1 DIN 2 DIN 3 Insertion of a thin cable DIN 4 AUX+12 Vdc A: press with a... -
Page 13: 7-Display Functions And Use
7-DISPLAY FUNCTIONS AND USE The main MyAlarm3 Cloud display page provides the following information: A - GSM signal level B - output 1 status C - output 2 status D - digital input 1 status E - digital input 2 status... -
Page 14: 8-Cloud Service Activation And Management
"OWNER ACCOUNT". The "OWNER ACCOUNT" can either invite other "USER ACCOUNTS" to use its MyAlarm3 Cloud as guest users, or be invited by other owner accounts to use their MyAlarm3 Cloud as a guest user. The "USER ACCOUNT" is the guest user of MyAlarm3 Cloud not owned by him after the invitation to use by the respective "OWNER ACCOUNTS". - Page 15 8-CLOUD SERVICE ACTIVATION AND MANAGEMENT Example 1: three “OWNER ACCOUNTS” manage just their devices: Control unit 1 Control unit 2 Control unit 3 OWNER 1 OWNER 2 OWNER 3 ACCOUNT ACCOUNT ACCOUNT Example 2: A device is managed by one “OWNER ACCOUNT” and two “USER ACCOUNTS”: USER 1 ACCOUNT...
- Page 16 8-CLOUD SERVICE ACTIVATION AND MANAGEMENT Example 3: two "OWNER ACCOUNTS" own one device, a third device is used by the two different accounts, one as the "OWNER ACCOUNT" and one as the "USER ACCOUNT": Control unit 1 Control unit 2 Control unit 3 OWNER 1 OWNER 2...
- Page 17 8-CLOUD SERVICE ACTIVATION AND MANAGEMENT To use MyAlarm3 Cloud, it is necessary to register a SENECA Cloud account and activate the dedicated service. The MyAlarm3 Cloud KIT includes a usage fee for 12 months from first activation. For further information and renewal costs go to: https://www.seneca.it/myalarm3-cloud...
- Page 18 1. Start the control unit as per first startup procedure (see chapter 5 of the following manual); 2. Install the MyAlarm3 Cloud app by Seneca available in the iOS and Android stores, using the following QR codes or searching for MyAlarm3 Cloud by SENECA: 3.
- Page 19 "ADD" button. If the user is already registered as an account in the Seneca Cloud, go to point 9). If he is not registered, the system reports that the user is not present in the Seneca Cloud as an account, then asks if you want to send him an invitation (via email) to register.
- Page 20 "INVITE" button. If the user is already registered as an account in the Seneca Cloud, go to point 6). If he is not registered, the system reports that the user is not present in the Seneca Cloud as an account, then asks if you want to send him an invitation (via email) to register.
- Page 21 8-CLOUD SERVICE ACTIVATION AND MANAGEMENT Factory data reset: To reset the MyAlarm3 Cloud monitoring system to the factory settings, follow the instructions below: Access your Cloud account via the https://cloud.seneca.it WEB browser (that can also be opened from the MyAlarm3 Cloud app by going to: "options"...
- Page 22 8-CLOUD SERVICE ACTIVATION AND MANAGEMENT Change of ownership To transfer ownership of the MyAlarm3 Cloud control unit to another administrator account (*) follow the instructions below: • Log in to the administrator Cloud account where the service to be transferred is located by connecting to https://cloud.seneca.it.
- Page 23 8-CLOUD SERVICE ACTIVATION AND MANAGEMENT Remove Guest User • To remove a guest user via the service administrator account: • Log in to the Cloud administrator account by logging in at: https://cloud.seneca.it • Select “CLOUD SERVICES”. • Select the “MANAGE” button for the Service •...
-
Page 24: 9-Gps Antenna Installation
9-GPS ANTENNA INSTALLATION WARNING The use of the A-GPS accessory (external GPS antenna) is only allowed for My3Cloud models with GPS. To install and activate the A-GPS accessory (external GPS antenna with 3 meter cable) follow the procedure below: 1. Connect the external antenna through the dedicated connection (image 1 on page 11) as shown in figure 1;... -
Page 25: 10-External Ntc Probe Installation
10-EXTERNAL NTC PROBE INSTALLATION CAUTION Disconnect the power supply before proceeding with the wiring. Before proceeding with the installation of the external NTC probe, it is necessary to remove the NTC probe supplied with the control unit. It will be sufficient to cut or remove the probe located on the back of the control unit. -
Page 26: 11-Troubleshooting
TO THE GPRS/ flashing quickly Active until the connected to the CLOUD and GSM signal control unit is GPRS network NETWORK indication on the switched off and to the (PHASE 4) display Seneca cloud My3 Cloud MI00535-4-EN... - Page 27 The control card correctly. unit remains 1. Download the updated "APN.bin" file from in the GSM the Seneca website and replace the one NETWORK SIM active but on the SD card. CONNECTION of an unknown 2. If your telephone provider is not among phase“...
- Page 28 CONTACTS AND INFORMATION Addresses Via Austria 26 - 35127 Padova (I) Tel. +39 049 8705 359 (408) Fax +39 049 8706287 Website: www.seneca.it/myalarm3-cloud Support: www.seneca.it/support Email: Sales department: sales@seneca.it Product technical support: support@seneca.it The information in this document can be modified or supplemented without notice for technical or commercial reasons.
