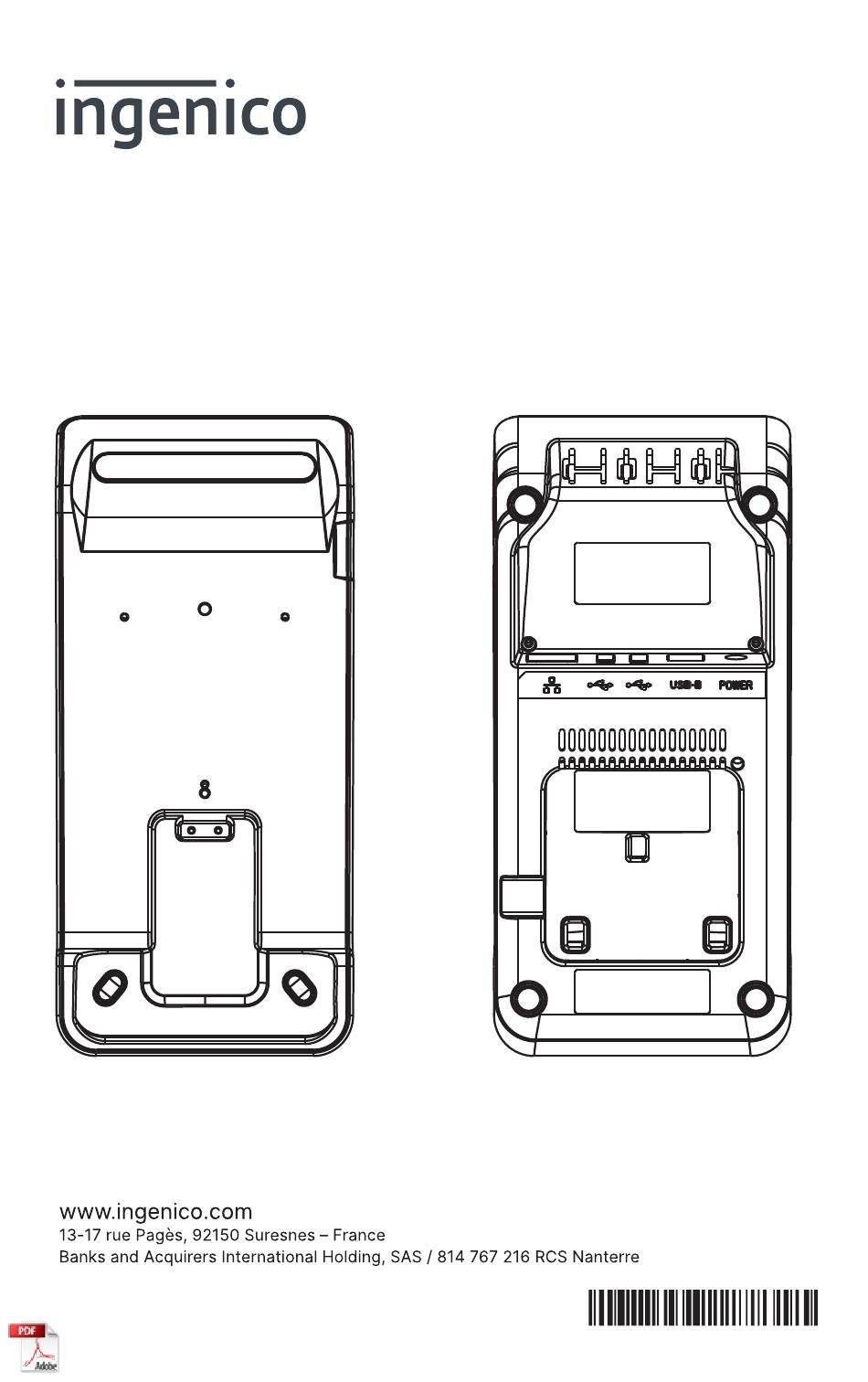

- Page 1 AXIUM DX8000-BASE-W2 User Guide UYS01000572...
-
Page 2: Table Of Contents
2.4 Change SSID Pre-shared Keys (passwords) 2.5 Advanced Setting 2.6 Upgrade the Base Firmware – contact Ingenico for firmware updates 2.6.1 Use Software Manager to download “firmware.apk” to the DX8000 Terminal: 2.6.2 Log into the Base Manage app on the Terminal 2.7 Load or Save Base setting... -
Page 3: Product Introduction
5) Factory Reset Button 6) Power connector – 12 VDC 7) Network Status LED 8) Pairing Status indicator 9) USB Pairing Button 10) DX8000 battery contacts AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 4: Power Supply Warning
1.3 Power Supply WARNING The power adapter provided is specially designed for Ingenico AXIUM DX8000-BASE-W2. Do not use any other power supply. Failure to use a certified power supply may damage your terminal and not be covered under the product warranty. -
Page 5: Setup & Management With Dx Terminal
Enter the new password in the New Password box. Re-enter the password in the Confirm New Password box. Click Save and wait for the confirmation. AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 6: Wan And Lan Settings
Click on the 5GHz WAN tab at the top of the screen. Repeat steps 3-4. Base WLAN WLAN – 2.4 GHz WLAN – 5.0 GHz AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 7: Advanced Setting
Leave set to disable by default. d) Static / DHCP: Choose Static IP address if required. DHCP is the default. Advanced Operating Mode DMZ Setting Static IP / DHCP AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 8: Upgrade The Base Firmware - Contact Ingenico For Firmware Updates
2.6 Upgrade the Base Firmware – contact Ingenico for firmware updates 2.6.1 Use Software Manager to download “firmware.apk” to the DX8000 Terminal: 2.6.2 Log into the Base Manage app on the Terminal. Click on the Management tab. Click Upload to the right of Update Firmware. -
Page 9: Load Or Save Base Setting
Wait for updating to complete. Verify that Update Parameter is successful. Load Settings Updating Confirmation 2.8 Restore Factory Settings – see section 3.4 later in this guide AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 10: Setup & Management With Administrator Webpage
Click on the 5GHz WAN tab at the top of the screen. Repeat steps 2-4. 3.3 Change Default Administrator Password Select Manage Page Type new password in both boxes Click save button Wait for confirmation AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... - Page 11 GHz Wifi networks and also a list of clients that have connected to either of the Wifi mode is the typical choice for most users. networks. AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved...
-
Page 12: Restore Factory Settings
Use paperclip or similar tool to press the RESET button for approximately 10 seconds. Base will revert to factory setting and automatically reboot. The location of the RESET button highlighted in the diagram. AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 13: Base Operating Modes
Base DHCP server is turned off and NAT is not used. All device IP and MAC Addresses are visible to and addressable by the network. AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 14: Wifi Repeater Mode
Put Base B between Base A and DX8000 & Set Base B repeat the Base A. DX8000 can connect to internet via Base B. Does not operate with a Mesh network. AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 15: Mount Base To Counter (Optional)
NOTE: fasteners should be appropriate for counter material. Replace the battery cover of DX8000. Put DX8000 on the base to lock it. AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 16: Appendix 1 - Frequently Asked Questions
And for Linux which version is lower than 2.6.32, it also needs to be installed manually. More details please consult after-sales personnel. AXIUM DX8000-BASE-W2 Copyright© 2023 Ingenico – Banks and Acquirers International Holding SAS 07/25 All rights reserved... -
Page 17: Appendix 2 - Standards And Operating Information
CE Marking The CE marking indicates AXIUM DX8000-BASE-W2 complies with the requirements of European Directive 2014/53/EU on Radio Equipment for the protection of the health and safety of the user and any other person. -
Page 18: Environment (Weee, Batteries And Packaging)
Electrical and Electronic Equipment Waste, which can have an effect on the environment and human health. “INGENICO is a trademark of BANKS AND ACQUIRERS INTERNATIONAL HOLDING . This Document is Copyright © 2023 BANKS AND ACQUIRERS INTERNATIONAL HOLDING . BANKS AND ACQUIRERS INTERNATIONAL HOLDING retains full copyright ownership, rights and protection in all material contained in this document.
