- Page 1 AXIUM DOCK User Guide...
-
Page 2: Table Of Contents
Contents 1_Introduction 2_Presentation 2_1 Content of the box 2_2 Overview on the AXIUM DOCK 3_Use of the Docking Station 3_1 Power on the device 3_2 Docking / undocking of the D7 3_3 AXIUM D7 charging 3_4 Advance paper 3_5 LED information... - Page 3 4_4_2 Factory default settings 4_4_3 Firmware upgrade 4_4_4 Emergency firmware upgrade 4_4_5 Change settings 5_Recommendations 5_1 Securisation 5_2 Safety 5_3 FCC/IC Compliance 6_Environment (WEE, Batteries and Packaging) 7_Troubleshooting 8_Marking Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
-
Page 4: 1_Introduction
WARRANTY / SECURITY Use only the power supply included with the product to ensure best performance and safety. Maintenance should only be provided by Ingenico authorized technician. Failure to comply with these instructions will void the manufacturer’s responsibility. This symbol indicates an important Warning. -
Page 5: 2_Presentation

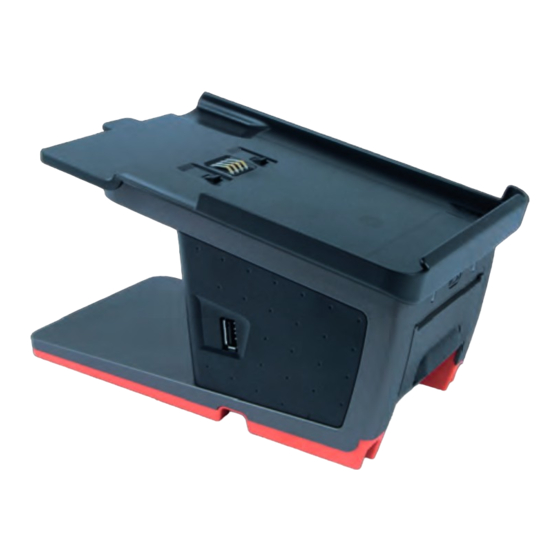

2_Presentation 2_1 Content of the box AXIUM DOCK station The AXIUM DOCK is an accessory for AXIUM D7 POS terminal. It offers different types of functions: Charge contacts for Axium D7 charging. 3 USB slots Ethernet connection through a Wifi router (option) - Page 6 Magic box cable (option) Power cable WARNING The power supply unit provided with your equipment is specially designed for Ingenico terminals. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal.
-
Page 7: 2_2 Overview On The Axium Dock
2_2 Overview of the AXIUM DOCK Charging contact + USB interface USB connector Docking Station unit Led for Bluetooth connection (Blue) Power Supply Advance paper Printer door Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319... - Page 8 Electrical mains network 100-240VAC / 50-60 Hz - Class VI equipment 3 USB slots Connections on station Charging contacts + USB interface through the tablet 1 Ethernet port (option) Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
-
Page 9: 3_Use Of The Docking Station
In order to charge the D7, you have to dock it on the station. This action is automatic by sliding down the D7 on the terminal support as per below. Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319... -
Page 10: 3_3 Axium D7 Charging
In case you need to undock the product, please action the dedicated button on the station as per below. 3_3 Axium D7 charging The Axium Dock allows to charge the Axium D7 through the contacts spring on the tablet holder. The Axium Dock offers a 5V voltage with a maximum current of 2A. -
Page 11: 3_4 Advance Paper
Blue : when indicate that the Docking the device is Station is powered. connected over the Bluetooth Flashing Orange : to link. indicate that there is no paper for printing Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319... -
Page 12: 4_Installation
4_Installation 4_1 Recommendation Location of the AXIUM DOCK Place the terminal on flat surface near an electric socket. The terminal should be placed far from any very hot zones, protected from vibrations, dust, damp and electromagnetic radiation (computer screen, anti-theft barrier etc.). -
Page 13: 4_2 Docking Station Connections
The four contacts on the tablet holder offer the power supply to the Axium D7 and the USB interface. Charging contacts Insert the Axium D7 terminal on the tablet support to make the charge Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319... -
Page 14: Nfc Interface For Bluetooth Paring
Bluetooth connection. To proceed to this pairing, please launch the pairing application from the tablet and then approach the terminal to the dock. NFC pairing area Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319... - Page 15 For best product performances, only use heat sensitized paper approved by Ingenico. WARNING Switch off the terminal prior to install a paper roll. Use only paper approved by Ingenico The use of non-approved paper is likely to damage the printer of the Docking Station. Copyright© 2019 Ingenico...
-
Page 16: Installing Paper Roll
Pull the paper up to the top of the terminal Maintain the paper and close the lid Press simultaneously on both upper corners of the paperflap, as shown by arrows on picture, until it clips into position Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319... - Page 17 Remark: if you change some settings on the web interface and you save those settings, you will not be able to access to the Factory default mode. Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 18 Or you could access the device via Ethernet with WAN IP and management port when the “Enable Remote Management” function is enabled. And with the password you set or default password. Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 19 4_4_2 Factory default settings Enter TOOLS SYSTEM page and click “Restore Factory Defaults” button and click OK in the Popup message, then the router will restore all factory configuration settings. Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 20 4_4_4 Emergency firmware upgrade If the firmware is damaged, the device could not load the runtime firmware and it would stop in bootloader. You could access the device using Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 21 Change settings then click “Save Settings” button, the settings will be saved and taking effect. Below is an example (function details could be found in external spec) Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 22 5_Recommendations 5_1 Securisation AXIUM / series offers the possibility to secure AXIUM DOCK and AXIUM D7 with one single Kensington. When the D7 is docked lock the Kensington system as per below. 5_2 Safety Powering down the AXIUM DOCK Disconnect the AXIUM DOCK power supply block adapter from the electrical mains network.
- Page 23 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 24 This device must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 25 Ingenico ensures that efficient collection and recycling schemes are set-up for WEEE and batteries according to the local regulation of your country. Please contact your retailers for more detailed information about the compliance solution in place for disposing of your old product and used batteries.
- Page 26 LED to indicate if the device is switched on. Bluetooth marking placed on the docking station close to a LED to indicate if the device is connected in Bluetooth. Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 27 NOTES Copyright© 2019 Ingenico All rights reserved AXIUM DOCK 900035196 R11 000 04/0319...
- Page 28 28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35 Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre Copyright© 2019 Ingenico...
