Summary of Contents for Force USA Jammer Arms 2

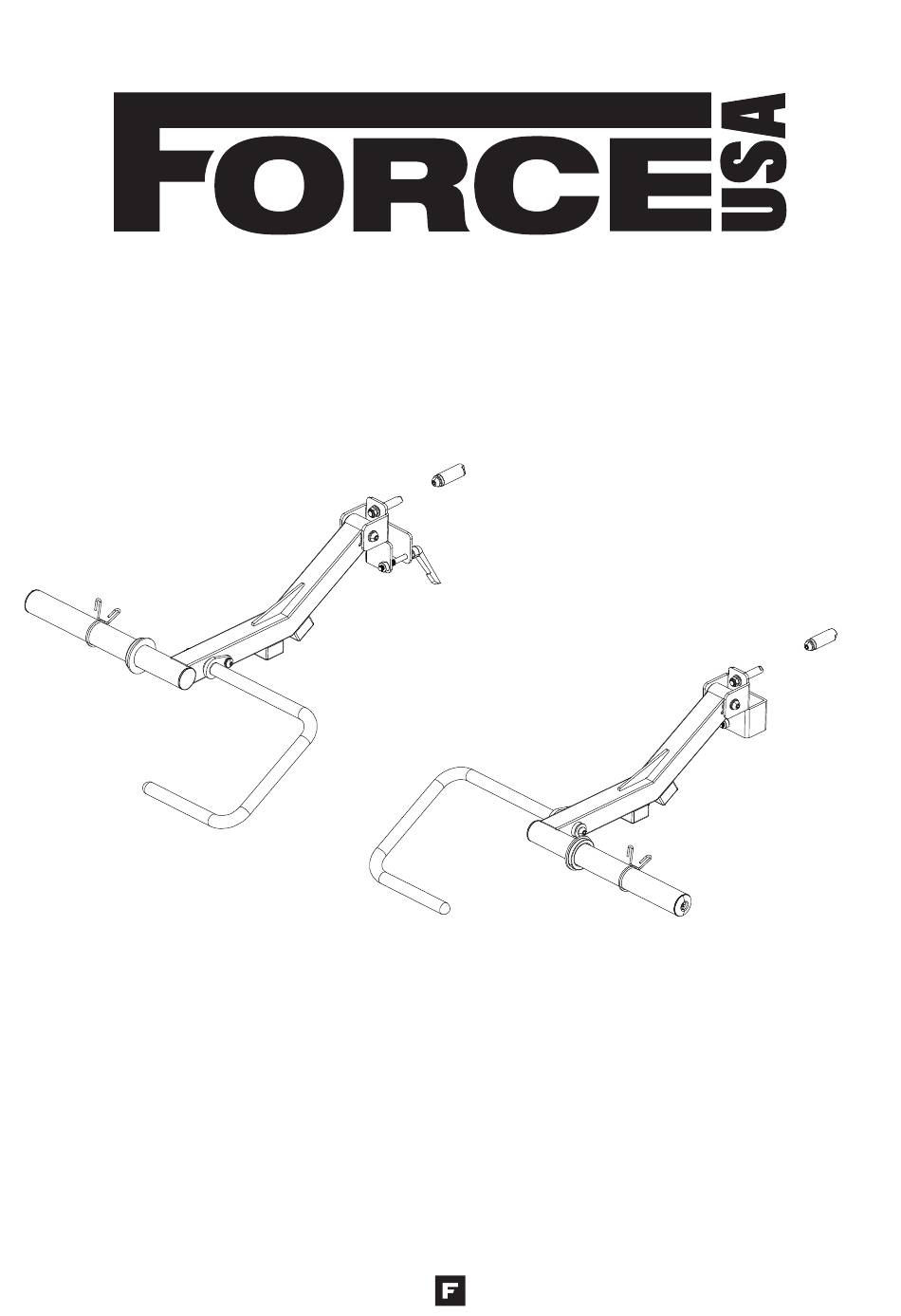

- Page 1 USER MANUAL | F-JAMMER-2...
- Page 2 THANK YOU FOR YOUR PURCHASE For the most up to date info about using your equipment and our latest support videos, please visit: www.forceusa.com...
- Page 4 BEFORE YOU START Read all instructions in this manual before assembling or using this equipment Only tighten nuts and bolts loosely until all equipment is assembled. Once the equipment is fully assembled, tighten from the bottom up, working evenly around the unit. •...
- Page 5 BEFORE YOU START CONTINUED SAFETY PRECAUTIONS PREVENTATIVE MAINTENANCE Daily Maintenance • • cloth • • • components • Monthly Maintenance • • • • • • • manufacturer • • • • • • • • • F-JAMMER-2...
- Page 6 EXPLODED DIAGRAMS For selecting the correct pin for your equipment, refer to the following guidance: Use Pin #25 (diameter 16mm) for the following models: F-G1-V2, F-G3-V2, F-G10, F-G12-V2, F-G15, F-G20-V2, F-C10. Use Pin #30 (diameter 25mm) for these models: F-G6-B, F-G9, F-G12. KEY NUMBER DESCRIPTION OF PART QUANTITY...
- Page 7 ASSEMBLY - STEP 1 LEFT ARM KEY NUMBER DESCRIPTION OF PART QUANTITY Push Arm Weldment Assembly Left Push Arm Fixed Pedestal Handle Left Assembly Part Internal Thread Axle φ20*56.5-M12 Hexagon Socket Button Head Screw M12*25 Flat Washer φ12 Spring Washer φ12 Hexagon Socket Button Head Screw M10*20 Flat Washer φ10 Big Washer φ32*φ12*T2...
- Page 8 ASSEMBLY - STEP 2 RIGHT ARM KEY NUMBER DESCRIPTION OF PART QUANTITY Push Arm Right Assembly Spring Washer φ10 Spring Collar φ50 Hexagon Socket Button Head Screw M12*25 Big Washer φ32*φ12*T2 Flat Washer φ10 Hexagon Socket Button Head Screw M10*20 Spring Washer φ12 Flat Washer φ12 Internal Thread Axle φ20*56.5-M12...
- Page 9 EXPLODED DIAGRAMS LEFT HANDLE The upcoming pages feature an exploded view drawing of your product. These diagrams visually represents each component as it relates to the whole, although additional assembly by you is not required. It serves to help you identify and understand every part included in your purchase.
- Page 10 EXPLODED DIAGRAMS LEFT PUSH ARM WELDMENT KEY NUMBER DESCRIPTION OF PART QUANTITY Bearing 6004 Rubber Shock Pad φ50*50*30 Rubber Ring φ80*13 Outer Support Sleeve φ50*φ10.5* 37.5 Stainless Steel Outer Casing φ50*0.7 Hexagon Socket Button Head Screws M10*25 Flat Washer φ10 Hexagon Socket Button Head Screw M10*35 Tube Plug φ48*2 Push Arm Weldment Left...
- Page 11 EXPLODED DIAGRAMS LEFT PUSH ARM FIXED PEDESTAL KEY NUMBER DESCRIPTION OF PART QUANTITY Hexagon Socket Button Head Screw M12*25 Flat Washer φ12 Spring Washer φ12 Hang Rod Shaft φ25*M12*62 Push Arm Fixed Pedestal Left Weldment φ16 Hang Rod Shaft F-JAMMER-2...
- Page 12 EXPLODED DIAGRAMS RIGHT HANDLE KEY NUMBER DESCRIPTION OF PART QUANTITY Handle Right Weldment Handle Cover φ25*830 F-JAMMER-2...
- Page 13 EXPLODED DIAGRAMS RIGHT PUSH ARM WELDMENT KEY NUMBER DESCRIPTION OF PART QUANTITY Push Arm Weldment Right Bearing 6004 Rubber Ring φ80* 13 Outer Support Sleeve φ50*φ10.5*37.5 Stainless Steel Outer Casing φ50*0.7 Hexagon Socket Button Head Screws M10*25 Flat Washer φ10 Hexagon Socket Button Head Screw M10*35 Tube Plug φ48*2 Rubber Shock Pad φ50*50*30...
- Page 14 EXPLODED DIAGRAMS RIGHT PUSH ARM FIXED PEDESTAL KEY NUMBER DESCRIPTION OF PART QUANTITY Hexagon Socket Button Head Screw M12*25 Flat Washer φ12 Spring Washer φ12 Hang Rod Shaft φ25*M12*62 Push Arm Fixed Pedestal Weldment Right φ16 Hang Rod Shaft F-JAMMER-2...
- Page 15 WARRANTY INFO For warranty information please contact the dealer nearest to you. F-JAMMER-2...
