- Page 1 MicroPar Quad User Manual Order code: EQLED444...
- Page 2 Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk MicroPar Quad User Manual...

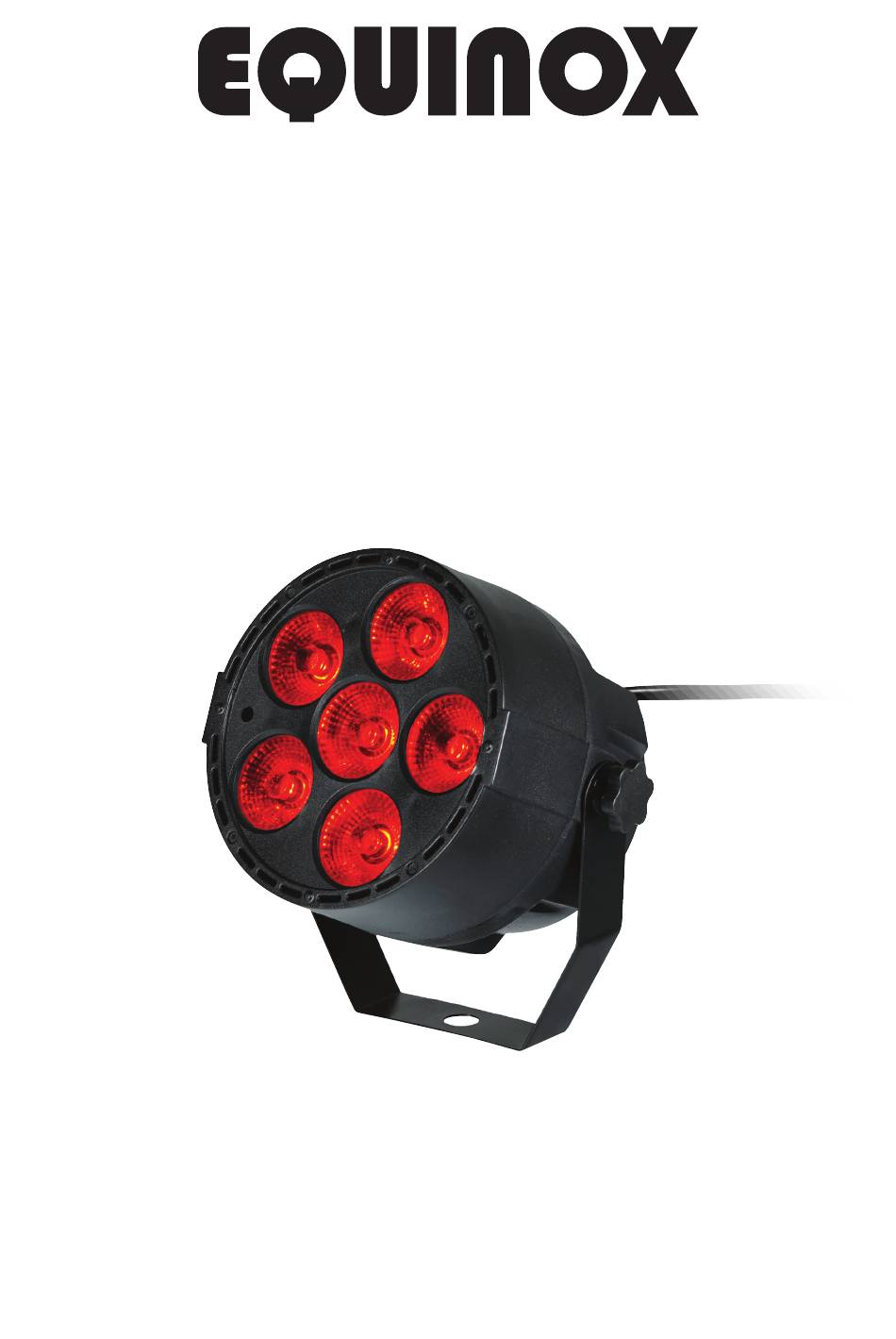

- Page 3 Product overview & technical specifications MicroPar Quad The MicroPar Quad features 6 x 10W quad-colour LEDs and produces a varied range of effects including colour changes and fades, controllable in auto and sound active modes along with DMX. This compact fixture also comes with a handy RF remote providing quick access to the various modes.
- Page 4 2 5 5 G 0 0 0 G 2 5 5 RGBW colour mix mode r 0 0 0 b 0 0 0 b 2 5 5 u 0 0 0 u 2 5 5 www.prolight.co.uk MicroPar Quad User Manual...
- Page 5 “ENTER” button and use the “UP” and “DOWN” buttons to set the colour change speed from ff 1 ff99 (slow - fast). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MicroPar Quad User Manual...
- Page 6 LEDs. Press the “ENTER” button to confirm the setting and move to the next colour. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MicroPar Quad User Manual...
- Page 7 (1-15) 09 - Adjusts the program/strobe speed/sound sensitivity/ static colour – use the ‘+’ and ‘-‘ buttons to select the ROSEO AMBER CYAN desired speed – WHITE SPEED www.prolight.co.uk MicroPar Quad User Manual...
- Page 8 Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk MicroPar Quad User Manual...
- Page 9 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk MicroPar Quad User Manual...
- Page 10 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk MicroPar Quad User Manual...
