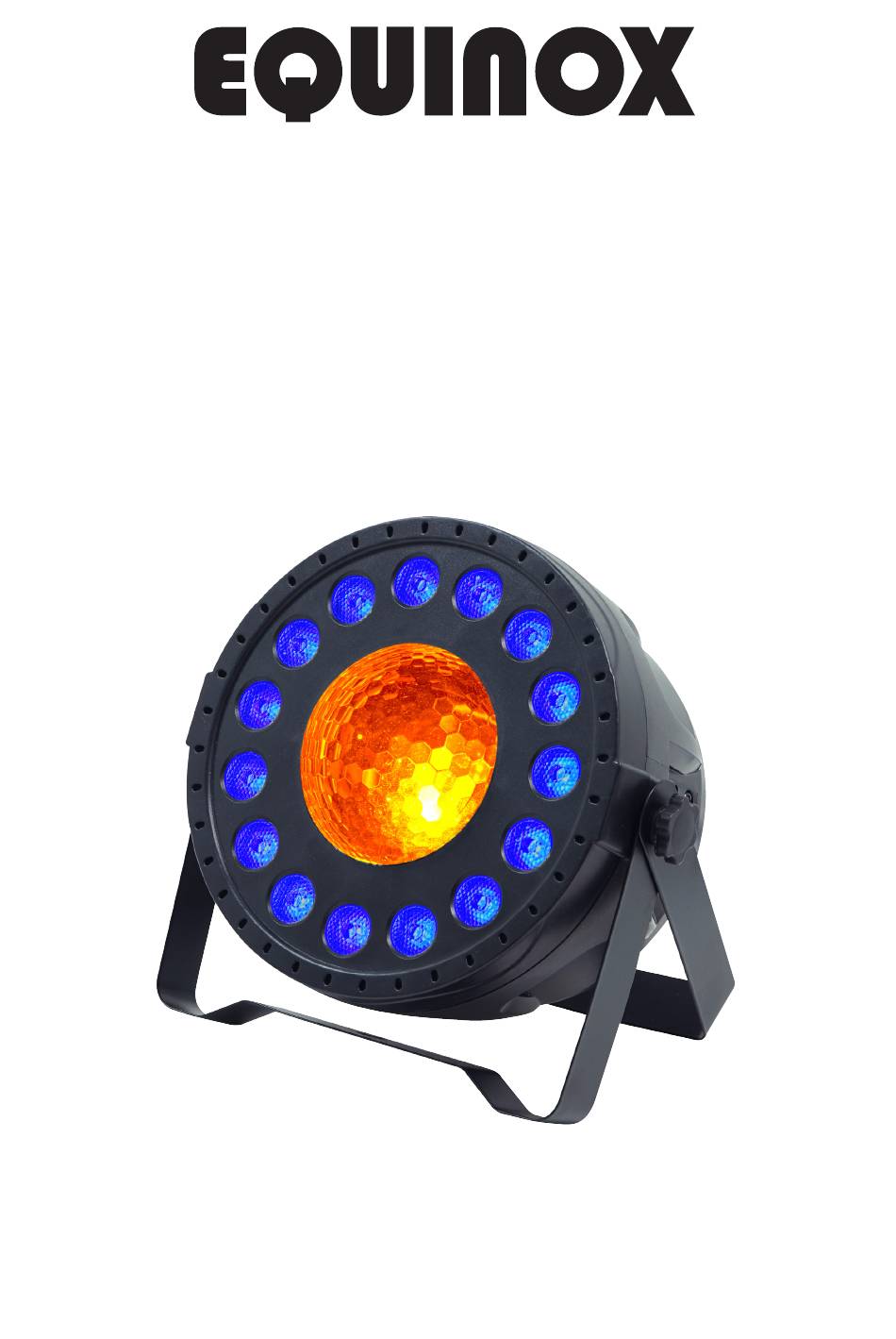

- Page 1 MoonPar User Manual Order code: EQLED044...
-
Page 2: Safety Advice

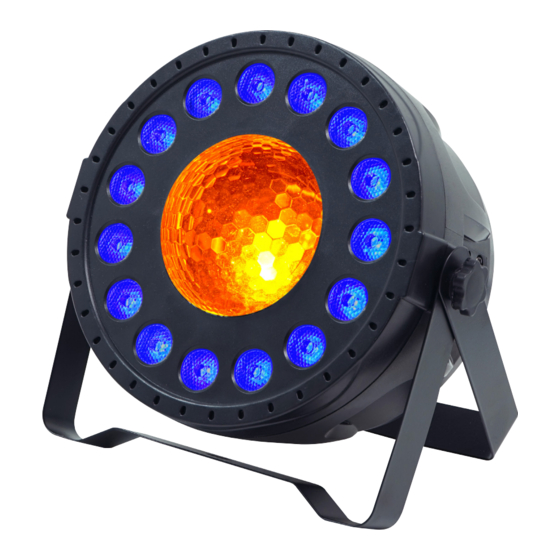

Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk MoonPar User Manual... - Page 3 MoonPar The MoonPar projects a wide array of multicoloured beams of light that rotate and twist around the room. 15 tri-colour LEDs sit in circle around the front of the unit adding a coloured wash effect for an extra dimension.
- Page 4 - - - r 2 5 5 g 0 0 0 g - - - Colour mix mode (LEDs) g 2 5 5 b 0 0 0 b - - - b 2 5 5 www.prolight.co.uk MoonPar User Manual...
-
Page 5: Dmx Mode
Colour change mode (LEDs) 201-250 Colour fade mode (LEDs) 251-255 Sound mode (LEDs) 000-050 No function 051-150 Static colours/patterns 151-200 Colour change mode (moonflower) 201-250 Colour fade mode (moonflower) 251-255 Sound mode (moonflower) 000-255 Motor speed (slow-fast) www.prolight.co.uk MoonPar User Manual... - Page 6 LEDs Blue, Moonflower Red & Green CC14 LEDs White, Moonflower Red, Green & Amber CC07 LEDs Green, Moonflower Green & Blue CC15 LEDs White, Moonflower Red, Blue & Amber CC08 LEDs Yellow, Moonflower Blue & Amber CC16 Moonflower Full On www.prolight.co.uk MoonPar User Manual...
- Page 7 Press the “MENU” button and repeat for green ( ) and blue ( Value: 000 - 255 (000 = low brightness, 255 = high brightness) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MoonPar User Manual...
-
Page 8: Dmx Setup
Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk MoonPar User Manual... -
Page 9: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk MoonPar User Manual... -
Page 10: Ir Remote Functions
051 you would need to press ‘0’ followed by ‘5’ and then ‘1’. Adjusts the auto mode, sound mode, colour fade mode, colour change mode, strobe and motor speeds, DMX address and colour mix brightness value www.prolight.co.uk MoonPar User Manual... - Page 11 MoonPar User Manual...
- Page 12 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk MoonPar User Manual...
