Summary of Contents for Equinox Systems MIRR22

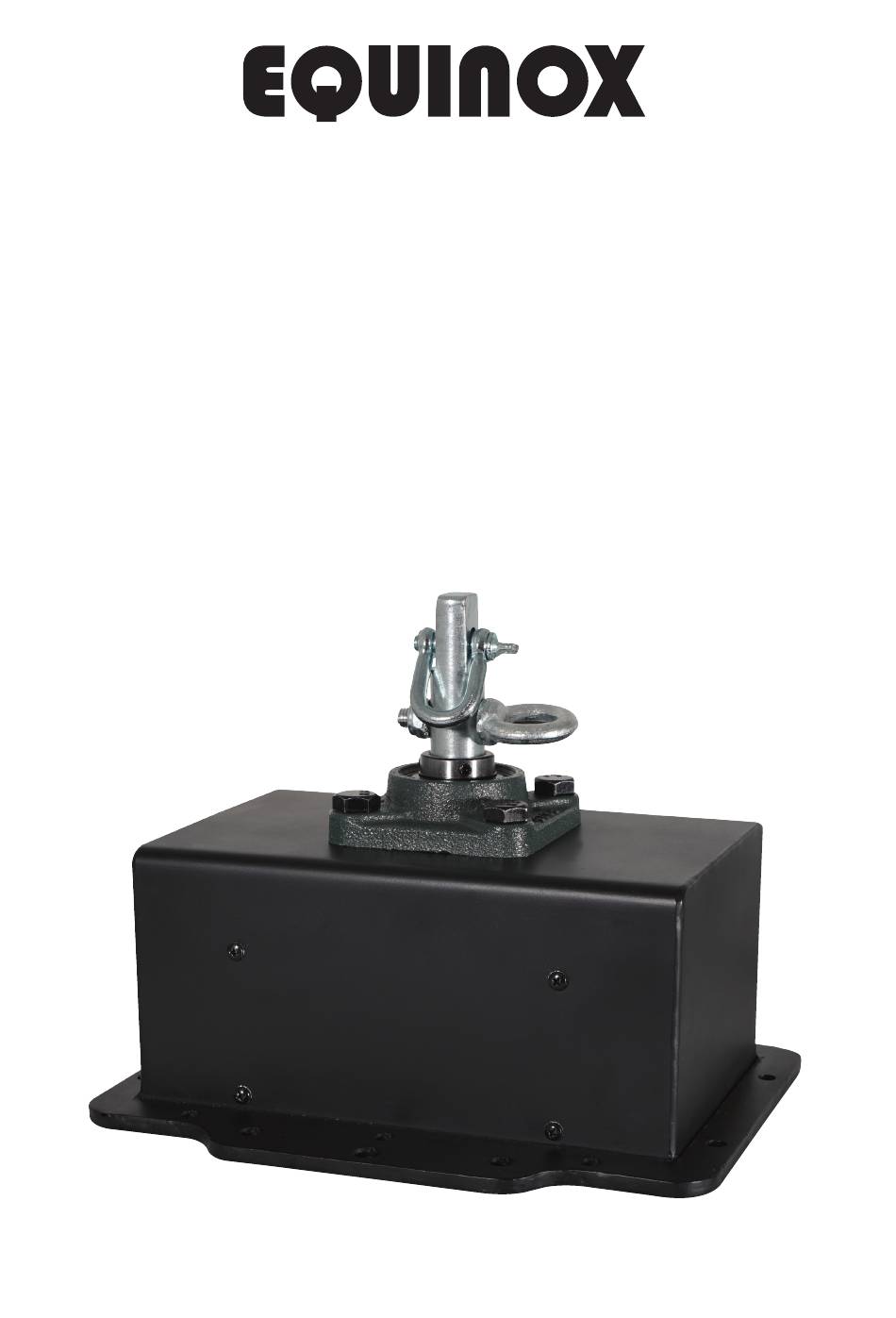

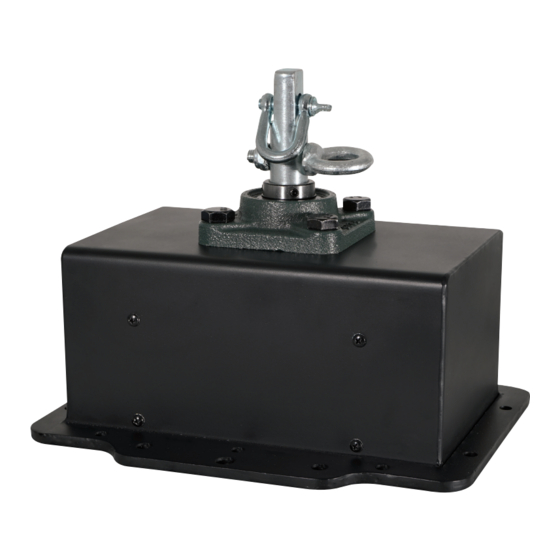

- Page 1 DMX Heavy Duty 1 RPM Mirror Ball Rotator with Safety Eye User Manual Order code: MIRR22...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •... - Page 3 1 RPM Dimensions 235 x 292 x 252mm Weight 11.1kg Order code MIRR22 01 - Mirror ball motor 06 - Mirror ball 02 - Motor axle 07 - Safety eyelet In the box: 03 - Screw-on chain link 08 - Safety chain 1 x rotator &...
-
Page 4: Installation
Installation DANGER TO LIFE! PLEASE CONSIDER THE EN 60598-2-17 AND THE RESPECTIVE NATIONAL REGULATIONS DURING THE INSTALLATION. THE INSTALLATION MUST ONLY BE CARRIED OUT BY A COMPETENT AND QUALIFIED INSTALLER! The motor must be installed in an absolutely horizontal position in a vibration-free, oscillation-free and fire-resistant location If the motor and the mirror ball are to be operated above persons, additional risks arise. -
Page 5: Installation And Maintenance
Installation & maintenance The fittings used for installation must never include abrading material eg steel cables in order to avoid wear through abrasion. The length of the chain must never exceed 100cm. Install the mirror ball chain with the screw-on chain link at the installation eyelet of the mirror ball and tighten with the fixing screw. -
Page 6: Master/Slave Operation
Operating instructions Master/slave operation: The master/slave operation enables that several devices can be synchronized and controlled by one master device. On the rear panel of the device you can find an XLR jack and an XLR plug, which can be used for connecting several devices. Choose the device which is to control the effects. -
Page 7: Dmx Protocol
Maintenance & DMX setup Occupation of the DIP-switches: Setting the DMX DIP Switch starting address number Device number Starting and channels address Device 1 - Channel 1 Device 2 - Channel 2 Device 3 - Channel 3 Device 4 - Channel 4 Device 5 - Channel 5 DMX protocol:... - Page 8 DMX setup & WEEE notice Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing.
