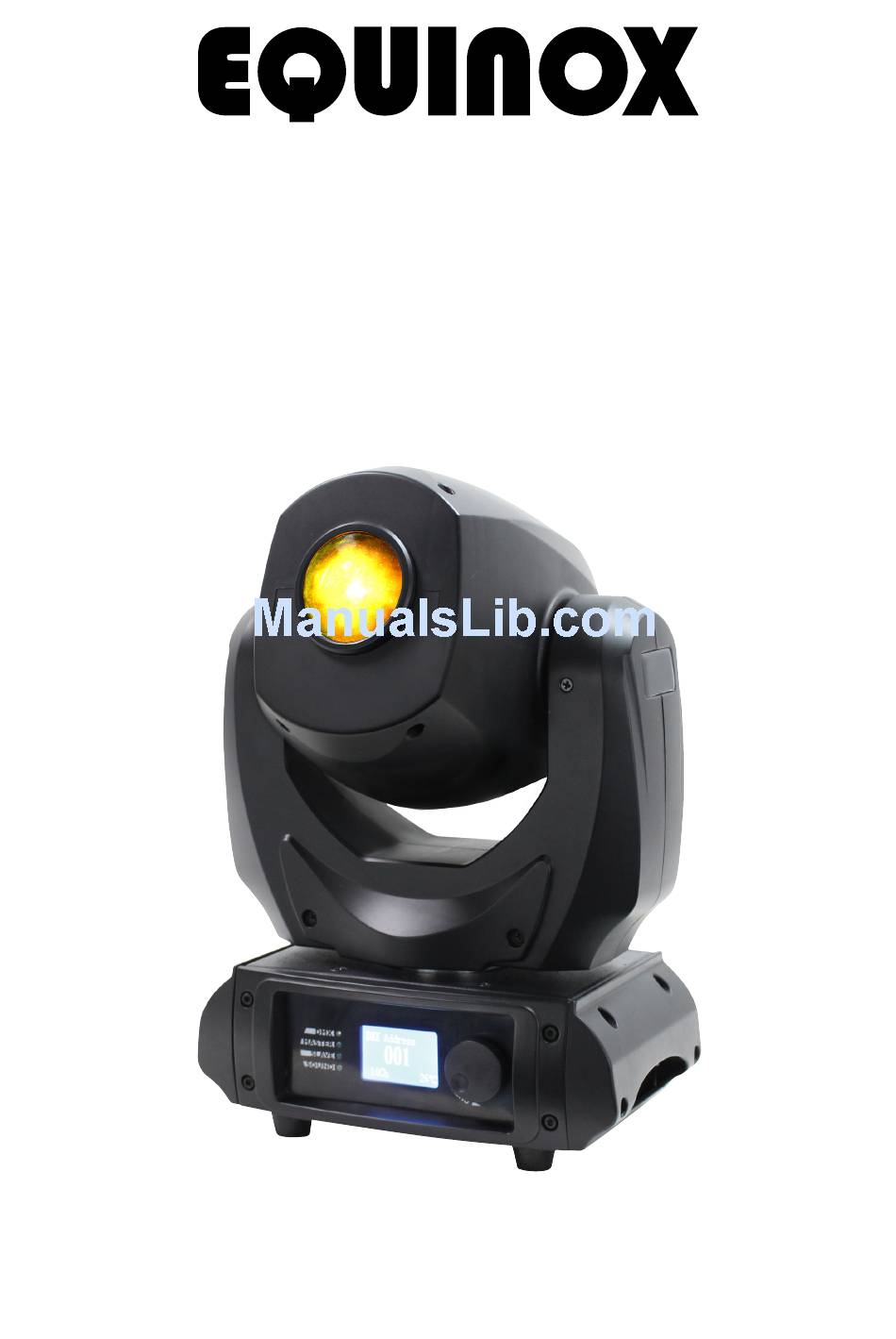

- Page 1 Midas Spot User Manual Order code: EQLED072...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Midas Spot User Manual... - Page 3 • Pan/tilt auto correction • 16-Bit pan/tilt positioning • Pan: 540°, Tilt: 270° 16° - Lux 64000 16000 7110 4000 2560 • 0-100% dimming and variable strobe • Supplied with quick release omega clamp • Jog wheel menu with 2” LCD display 16° • PowerCON input/output • 3-Pin XLR input/output • Fan cooled 242mm 147mm Specifications Midas Spot Power consumption 105W Fuse T2A 250V Power supply 100~240V, 50/60Hz Dimensions 365 x 242 x 147mm Weight 6.9kg Order code EQLED072 www.prolight.co.uk Midas Spot User Manual...
-
Page 4: Technical Specifications
POWER OUTPUT: 100-240V~50/60Hz 100-240V~50/60Hz DMX INPUT DMX OUTPUT 01 - Earth point 05 - On/off switch 09 - PowerCON output In the box: 1 x fixture, 02 - LCD display 06 - 3-Pin DMX input 10 - Fuse T2A 250V 1 x omega clamp, 1 x power cable 03 - Jog wheel 07 - 3-Pin DMX output 11 - Omega bracket plate & 1 x user manual 04 - LED mode indicators 08 - PowerCON input 12 - Fan cooling vents www.prolight.co.uk Midas Spot User Manual... -
Page 5: Rotating Gobo Replacement
Rotating Gobo Replacement Rotating Gobo Replacement: The fixture is supplied with 7 rotating, replaceable gobos. See below for installation instructions. 1) Disconnect and isolate from the power then 2) Remove the head shell from the head. place the fixture on a flat surface and unscrew the head shell. 3) Carefully remove one of the gobo trays by 4) Now you can remove the circlip, followed by lifting slightly and pulling towards you releasing the gobo from the gobo tray. Replace the gobo the tray from the spring clip. and fit the circlip back into the tray. 5) Place the gobo tray back 6) Place the head shell back 7) Tighten the screws until the into the gobo wheel by sliding it onto the head. head shell is secure. back under the spring clip and pushing it down into the wheel. www.prolight.co.uk Midas Spot User Manual... -
Page 6: Operating Instructions
Operating instructions Control Panel Menu: The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on it will show “Wait...” followed by “Equinox Midas Spot”. The fixture will then return to its home screen. To access the main menu turn the jog wheel clockwise or anti-clockwise until the menu required is highlighted. Pressing the jog wheel on one of these options allows you to access the sub menu where you can turn the jog wheel clockwise or anti-clockwise to select the option/value required. Once the option/value has been selected press the jog wheel once more to confirm the setting. There are 4 LED indicators on the front panel of the fixture: DMX - This LED indicator will flash when the unit is receiving a DMX signal. MASTER - This LED indicator will illuminate when in Master mode. SLAVE - This LED indicator will flash when in Slave mode. SOUND - This LED indicator will flash when in Sound mode. MASTER SLAVE SOUND MIDAS SPOT www.prolight.co.uk Midas Spot User Manual... - Page 7 Exit Normal 1:Pan Invert Pan Inverse Setting Invert Normal 2:Tilt Invert Tilt Inverse Setting Invert 1:Square Law 2:Linear 3:Dimmer Curve Dimming Curve Settings 3:S-Curve 4:InvSquare Law 1:Off 7)Settings 4:DMX Fail 2:Hold DMX Fail Settings Exit 1:Auto rotate 2:Normal 5:Display Display Inverse Setting 3:Inverted Exit 1:On 2:Off 6:Back Light Display Back Light Setting 3:Adjust(01-10) Exit www.prolight.co.uk Midas Spot User Manual...
- Page 8 Sub Menu Options/Values Description 7:Reset Motor Reset 8:Factory Sets Factory Reset 7)Settings Test 9:Auto Test Auto Test Exit Exit Exit Sub Menu 1:Pan 000--255 2:Tilt 000--255 3:Color 000--255 8)Calibrations Initial Home Position Calibration Password (088) 4:Gobo 000--255 5:Focus 000--255 6:Default (Reset all home positions to 127/) 9)Version Vx.xx Software Version Exit Return to Home Screen www.prolight.co.uk Midas Spot User Manual...
- Page 9 Split colour (Red/Green) 132-143 Split colour (Green/Blue) 144-155 Split colour (Blue/Yellow) 156-167 Split colour (Yellow/Magenta) 168-179 Split colour (Magenta/Sky Blue) 180-191 Split colour (Sky Blue/Orange) 192-203 Split colour (Orange/Tri-colour Filter (RGB)) 204-215 Split colour (Tri-colour Filter (RGB)/Open) 216-235 Colour scroll clockwise (fast-slow) 236-255 Colour scroll anti-clockwise (slow-fast) 000-011 Open 012-023 Rotating gobo 1 024-035 Rotating gobo 2 036-047 Rotating gobo 3 048-059 Rotating gobo 4 060-071 Rotating gobo 5 072-083 Rotating gobo 6 084-095 Rotating gobo 7 www.prolight.co.uk Midas Spot User Manual...
- Page 10 Gobo rotation clockwise (fast-slow) 192-255 Gobo rotation anti-clockwise (slow-fast) 000-080 No function 081-255 3 facet prism 000-255 Focus 000-009 No function 010-020 Reset motors (hold for 5 seconds) 021-255 No function 000-007 No function 008-037 Show 1 038-067 Show 2 068-097 Show 3 098-127 Show 4 128-157 Show 5 158-187 Show 6 188-217 Show 7 218-247 Show 8 248-255 Forward Facing Show www.prolight.co.uk Midas Spot User Manual...
- Page 11 Operating instructions Rotating gobos: Gobo size: 24mmØ Image size: 19.5mmØ Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Additional rotating gobos (supplied): Gobo size: 24mmØ Image size: 19.5mmØ www.prolight.co.uk Midas Spot User Manual...
-
Page 12: Installation
Installation Installation: 1) Bolt each clamp to the Omega bracket(s) with the bolt and locking nut throughout the hole in the bracket. 2) Fasten the Omega bracket(s) to the bottom of the moving head base by inserting the quick lock fasteners into the receiving holes in the base and tighten. 3) Hang the fixture to the support through the clamp and secure with the locking nuts. Fasten the safety cable through the bottom of the base and over the support. Attention: • Always ensure that the structure to which you are attaching the fixture is secure and able to support a weight of 10 times the fixtures weight. • Always use a safety cable that cab hold 12 times the weight of the fixture when installing. • Make sure that the fixture is firmly attached in a way that no vibrations or movement could occur during operation. • The equipment must be installed by professionals and must be installed in an area where it is out of reach of people and no one can pass by or under it. www.prolight.co.uk Midas Spot User Manual... -
Page 13: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Midas Spot User Manual... - Page 14 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Midas Spot User Manual...
-
Page 15: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Midas Spot User Manual... - Page 16 Midas Spot User Manual...
