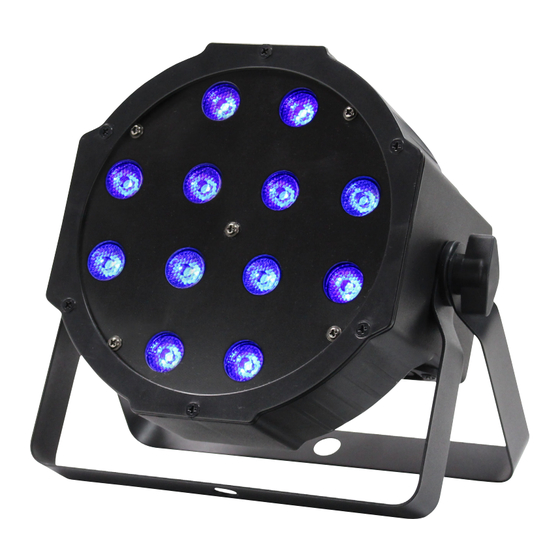

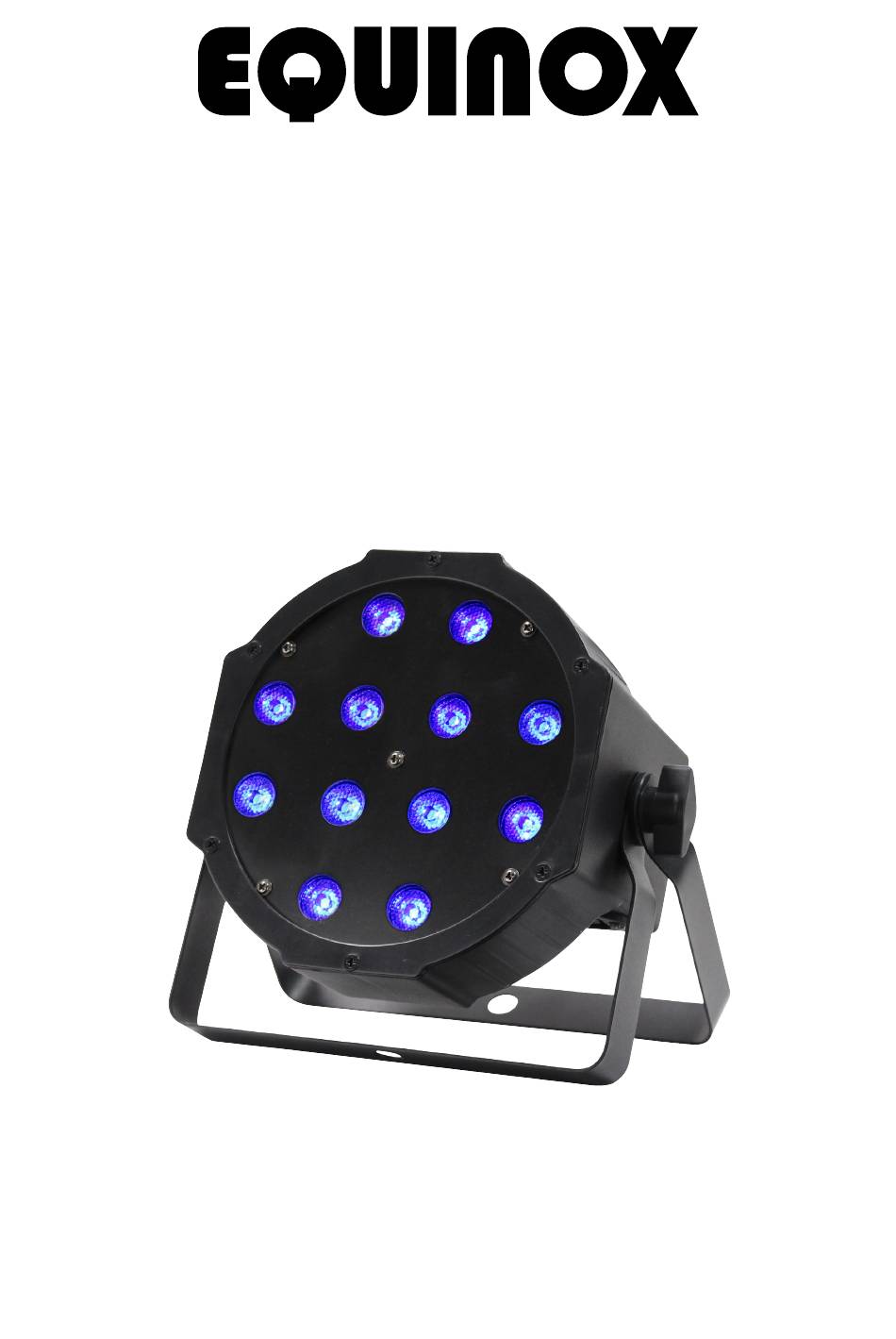

- Page 1 MaxiPar Tri MKII User Manual Order code: EQLED111A...
-
Page 2: Safety Advice
• Only use the equipment indoors. • If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 100~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk MaxiPar Tri MKII User Manual... - Page 3 DMX OUTPUT POWER OUTPUT: DMX OUTPUT 100-240V~50/60Hz POWER OUTPUT: 100-240V~50/60Hz 01 - Bracket 05 - Microphone In the box: 1 x fixture, 02 - Bracket knobs 06 - DMX input socket 1 x power cable & 03 - LED display 07 - DMX output socket 09 - IEC power output socket 1 x user manual 04 - Function buttons 08 - IEC power input socket 10 - Fuse T1A 250V www.prolight.co.uk MaxiPar Tri MKII User Manual...
- Page 4 MENU P r 0 1 Built in programs P r 1 3 S L A V Slave mode 0 0 0 S O U d S E n S Sound settings 1 0 0 www.prolight.co.uk MaxiPar Tri MKII User Manual...
- Page 5 056-083 (use CH6 for speed) for speed) 078-090 White fade in/out 084-111 091-116 Auto colour fade in/out 112-139 Green 117-142 Colour fade 140-167 Blue 143-168 Colour change 168-195 Yellow 169-181 Colour change with strobe 196-223 Purple 182-207 All auto shows 224-251 Cyan 208-255 Sound active flash (when CH6 is 000) 252-255 White 208-255 Sound active (when CH6 is 001-255) 000-255 Speed (slow-fast)/Sensitivity (low-high) www.prolight.co.uk MaxiPar Tri MKII User Manual...
-
Page 6: Master/Slave Mode
SP00 Sp20 . Press the “ENTER” button to confirm. To exit out of any of the above options, press the “MENU” button. Sound active mode: Soud To access the sound active mode, press the “MENU” button on the front of the unit to show on Sens the LED display. Now press the “ENTER” button and the display will show . Press the “ENTER” button again and use the “UP” and “DOWN” buttons to select the sensitivity level from 000-100. Press the “ENTER” button to confirm the setting. Value: 000 - 100 (000 = low,100 = high) To exit out of any of the above options, press the “MENU” button. Master/slave mode: To set the master unit, press the “MENU” button on the rear of the master unit to select your desired program (sound active or RGB colour mix). SLav To set the other units in slave mode, press the “MENU” button on the rear of the unit to show on the LED display and press the “ENTER” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk MaxiPar Tri MKII User Manual... -
Page 7: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk MaxiPar Tri MKII User Manual... -
Page 8: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk MaxiPar Tri MKII User Manual... -
Page 9: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk MaxiPar Tri MKII User Manual... - Page 10 MaxiPar Tri MKII User Manual...
- Page 11 MaxiPar Tri MKII User Manual...
- Page 12 MaxiPar Tri MKII User Manual...
