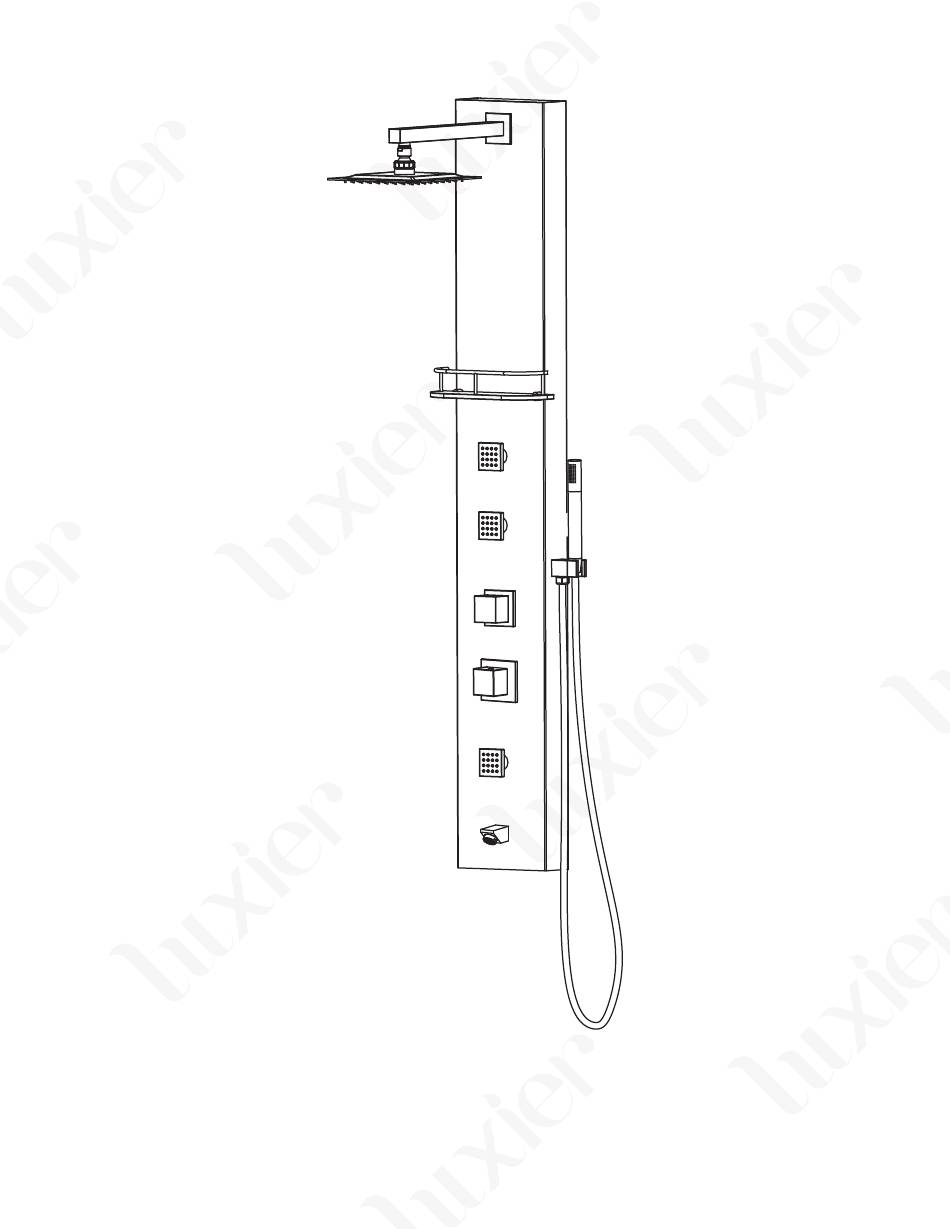

Luxier SP037-SS
Features
- Stunning stylish European inspired design
- Durable stainless steel frame construction
- Square stainless thin profile shower head
- Fingerprint resistance finish
- 4 stage shower functions (Rainfall, Massage Spray, Hand Shower, Tub Spout)
- Contemporary brass hand shower
- Tempered glass shelf
Luxier
1
SP37-SS Rev. A 102017

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP037-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP037-SS

Summary of Contents for Luxier SP037-SS

  • Page 1 Luxier SP037-SS Features - Stunning stylish European inspired design - Durable stainless steel frame construction - Square stainless thin profile shower head - Fingerprint resistance finish - 4 stage shower functions (Rainfall, Massage Spray, Hand Shower, Tub Spout) - Contemporary brass hand shower...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP37-SS Rev. A 102017...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP37-SS Rev. A 102017...
  • Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI 355mm 70mm 180mm 13.98” 2.76” 7.09” 1,400mm 55.11” 815mm 32.09” 550mm 21.65” 315.5mm 12.42” 206.5mm 54mm 8.13” 2.13” *All Measurements are Approximate Luxier SP37-SS Rev. A 102017...
  • Page 6 10. Hand Shower Supply Connector 11. Rubber Gasket 12. Hand Shower 13. Hand Shower Cradle 14. Rubber Gasket x 2 15. Hand Shower Hose 16. Screw x 4 17. Mounting Bracket x 2 18. Wall Anchors x 4 Luxier SP37-SS Rev. A 102017...

  • Page 7: Installation

    Use a piece of painters tape or masking tape over the drill area to prevent damages to the tiles. (NOTE: The distance between the two 815mm brackets should be 815 mm or 32.09”) 32.09” Luxier SP37-SS Rev. A 102017...
  • Page 8 4. Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any pip- ing or wiring in the wall. Insert the anchors into the wall. 1” 5. Secure the mounting brackets to the wall. Luxier SP37-SS Rev. A 102017...
  • Page 9 After the shower panel is set properly on the wall, apply silicon sealant on both sides of the shower panel to prevent the unit from moving. (NOTE: Do not seal the bottom of the panel.) Luxier SP37-SS Rev. A 102017...
  • Page 10 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Luxier SP37-SS Rev. A 102017...

  • Page 11: Operation

    6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier SP37-SS Rev. A 102017...
