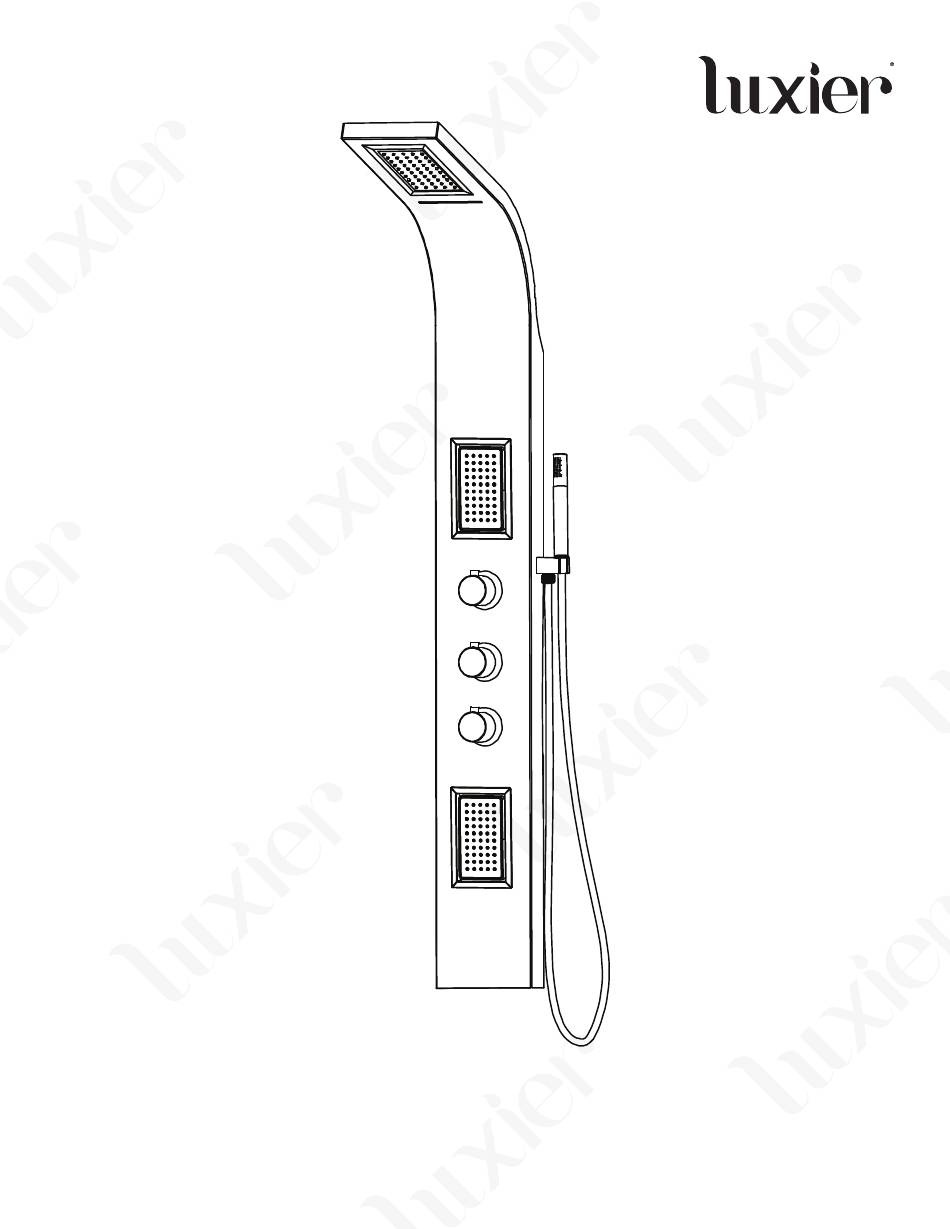

- Page 1 Luxier SP29-SS Features - Stunning stylish European inspired design - Elegant durable stainless steel frame construction - 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower) - Thermostatic valve control minimize the chance of scalding Luxier SP29-SS Rev. A2 022018...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP29-SS Rev. A2 022018...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP29-SS Rev. A2 022018...
-
Page 5: Technical Data
Uniform Plumbing Code (UPC ® ) National Plumbing Code of Canada IAPMO IGC 154-2016 Recommended Operating Pressure: 60 PSI 180mm 495mm 7.09” 19.49” 1620mm 63.78” 720mm 28.35” 755mm 29.72” 500mm 410mm 16.69” 16.14” 72mm 2.83” *All Measurements are Approximate Luxier SP29-SS Rev. A2 022018... - Page 6 06. Hand Shower Cradle 07. Rubber Washer 08. Hand Shower Hose 09. Diverter 10. Flow Control 11. Thermostatic Valve 12. Check Valve x 2 13. Screws x 4 14. Mounting Brackets x 2 15. Wall Anchors x 4 Luxier SP29-SS Rev. A2 022018...
-
Page 7: Installation
720mm 28.35” 4. Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any piping or wiring in the wall. Insert the anchors into the wall. 1” Luxier SP29-SS Rev. A2 022018... - Page 8 After the shower panel is set properly on the wall, apply silicon sealant on both sides of the shower panel to prevent the unit from moving. (NOTE: Do not seal the bottom of the panel.) Luxier SP29-SS Rev. A2 022018...
-
Page 9: Operation
8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 9. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP29-SS Rev. A2 022018... -
Page 10: Troubleshooting
The check valve should open when the center is pushed with tip of a pen or a cotton swab. The check valve should close automatically when no external pressure is applied to the center part of the valve. Luxier SP29-SS Rev. A2 022018... - Page 11 (NOTE: When inserting the thermostatic valve, make sure the marking on the tip of the valve is pointing up at 12 o’clock position as seen in Figure E) 10. Turn on water supply to the unit and test the system for leak. Luxier SP29-SS Rev. A2 022018...
- Page 12 6. Once the temperature is set, install the Temperature Control Knob #3. (NOTE: The Safety Pin should be pointing at 12 o’clock) and tighten setscrew #2 Fig. F Fig. H Safety Pin Chrome Trim with Temperature Scale (4) Temperature Limit Stop (5) Termostatic Valve (7) Fig. G Luxier SP29-SS Rev. A2 022018...
