ICP DAS USA PM-3033-MTCP Quick Start Manual

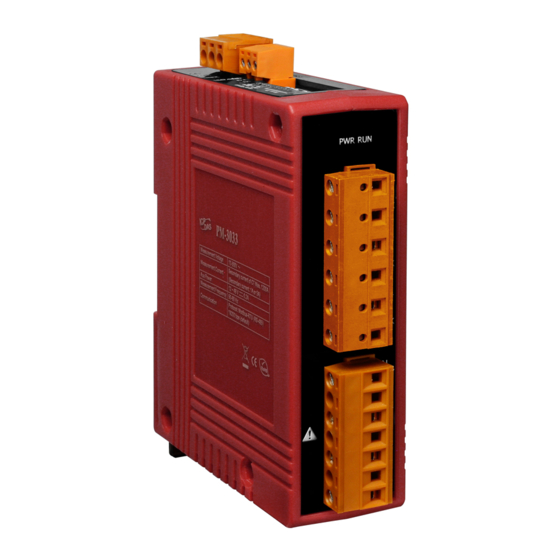

PM-3033-MTCP
3-Phase Smart Power Meter
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/pm_3033_mtcp

1. Introduction

The ICP DAS PM-3033-MTCP is a three phase smart power meter that communicates over
Modbus TCP for energy monitoring and analysis. It allows users to have real time access to their
power consumption by providing power measurements. It supports 10-500V, 1A or 5A and
50/60Hz. The PM-3033-MTCP not only supports low voltage on the primary side of the power
monitoring system but also the medium/high voltage on the secondary side. Based on the
success of our previous smart power meters, this new PM-3033-MTCP no longer uses dedicated
CT's, which helps users lower their implementation costs. Users can take direct input from the
"secondary side 1A/5A" type CT's. It operates over a wide voltages input range of 10 ~ 500 VAC
to ensure worldwide voltage compatibility. It supports Modbus TCP for easy integration with
other I/O and SCADA system.
PM-3033-MTCP 3-Phase Smart Power Meter - QuickStart (Jun/2018)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
