LEGRAND Wattstopper LMSH-PS610 Installation Instructions Manual

No: 29853 – 12/21 rev. 6
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMSH-PS610
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
IMPORTANT
SAFEGUARDS
When using electrical equipment, basic safety
precautions should always be followed including the
following:
a. READ AND FOLLOW ALL SAFETY
INSTRUCTIONS.
b. Do not use outdoors.
c. Do not mount near gas or electric heaters.
d. Equipment should be mounted in locations
and at heights where it will not readily be
subjected to tampering by unauthorized
personnel.
e. The use of accessory equipment not
recommended by the manufacturer may
cause an unsafe condition.
f. Do not use this equipment for other than
intended use.
g. Installation should be performed by qualified
service personnel.
SAVE THESE INSTRUCTIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular
installation. If this equipment does not cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interface by one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult an experienced radio/TV technician for help
Wattstopper

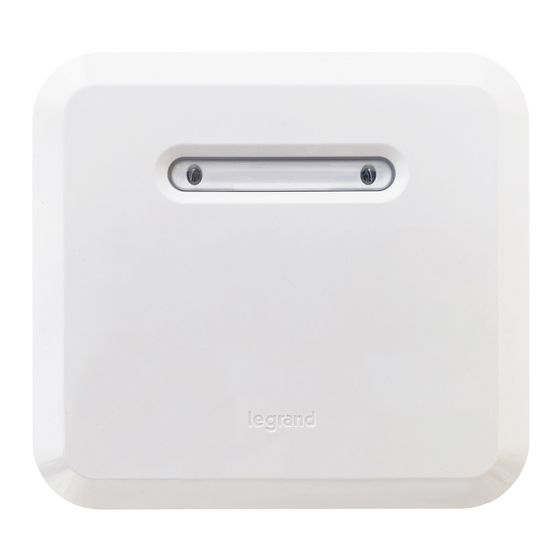

DLM Shade Controller Power Supply for Ten Shades
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Input Voltage ................................................................................... 120/277VAC, 50/60Hz
Maximum Power .........................................................................................................115W
Shade Bus Ports ........................................................................................................................2
Shade Bus Voltage...................................................................................36VDC, 1.5A, Class 2
Shade Capacity .................................................................. up to 10 DLM-based shade motors
Connection to the DLM Local Network .......................................................... 2 RJ-45 ports
Local Network Characteristics when using LMSH-PS610:
• DLM Local Network In-Room Bus (IRB) provides low voltage power to switches
over Cat 5e cable LMRJ; max current 800mA. Free topology up to 1,000' max.
• Shade Bus provides low voltage power to shade motors over Shade Bus cables, up
to 1,000' (no motor can be more than 500' from shade controller); don't intermingle
Shade Buses from different controllers;
• A full single shade room network supports up to 48 communicating devices on the
IRB (power supplies and switches) and up to 64 loads (shade motors) on the shade
bus
Environment:
Operating Temperature .......................................................32° to 131°F (0° to 55°C)
Storage Temperature .........................................................23° to 176°F (-5° to 80°C)
Relative Humidity .............................................................5 to 95% (non condensing)
UL 2043 Plenum Rated, ROHS Compliant
UL/CUL listed under UL60730.
Independently Mounted – Shade Controller, Type 1 Action, Pollution Degree 2, Impulse
Voltage: 4000V, Maximum Duty Cycle: 15%, 255 sec.
This unit is pre-set for Plug n' Go™ operation, adjustment is optional.
Plug and Go (PnG) is a process used by Digital Lighting Management (DLM)
systems to automate system configuration for room based lighting or shade control.
PnG settings can be overridden by using an LMSH-CR or mobile app to customize
configuration. The PnG is limited to room level control. The room is defined by all the
devices connected together using the In-Room-Bus (IRB). For shading, a room can
contain no more than 48 devices, defined by the number of shade motors, switches,
and shade controllers connected on a single IRB. For best results using PnG, we
recommend that rooms be kept small and defined by the type of control desired. For
instance a room could be a single conference room, office, or window facing.
Installation shall be in accordance with all applicable regulations, local and
NEC codes. Wire connections shall be rated suitable for the wire size (lead and
building wiring) employed.
®
SPECIFICATIONS
