LEGRAND Wattstopper LMRC-611MCC-A Quick Start Manual

No: 29867 – 5/22 rev. 6
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMRC-611MCC-A
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Models ending in -U are BAA and TAA compliant (Product produced in the U.S.)
Installation shall be in accordance with all applicable regulations,
local and NEC codes. Wire connections shall be rated suitable for the
wire size employed.
For Class 2 DLM devices and device wiring: To be connected to a Class 2
power source only. Do not reclassify and install as Class 1, or Power and
Lighting Wiring.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. Do not use outdoors.
c. Do not mount near gas or electric heaters.
d. Equipment should be mounted in locations and at heights
where it will not readily be subjected to tampering by
unauthorized personnel.
e. The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
f. Do not use this equipment for other than intended use.
g. Installation should be performed by qualified service
personnel.
SAVE THESE INSTRUCTIONS

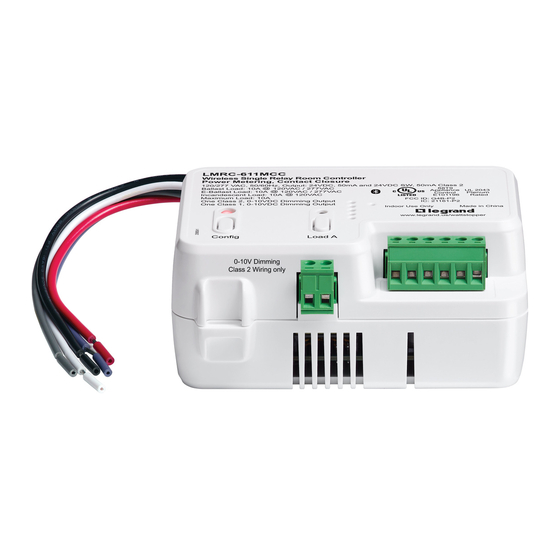

The LMRC-611MCC-A is a wireless room controller with external antenna intended for installations where electrical devices are required
to be mounted in a sealed enclosure (Chicago Plenum) or to meet local codes where all high and low voltage wiring is required to be
inside a rigid electrical conduit. The LMRC-611MCC-A is compatible with all Wattstopper IPv6/Bluetooth
DLM sensors and switches. Using Push-to-Pair or the DLM Config App, wireless devices can be paired to a room controller for stand-
alone room operation.
The LMRC-611MCC-A can also be joined to a multi-room mesh network by adding an LMBR-650 border router. Wireless room
controllers can join an LMBR-650 network using the wireless DLM Config App or LMCS v4.7 and later.
The room controller also includes a contact closure to support HVAC and DLM Plug load transmitter (WRC-TX) integration.
IMPORTANT INSTALLATION NOTES:
• You must maintain a minimum of 6" between each room controller and antenna.
• Ceiling mounted LMRCs must be mounted with the antenna pointing down, as shown on the following page.
• Any modifications to the antenna or this installation process may result in reduced wireless performance and non-acceptance of
local codes.
Wattstopper
Wireless Single Relay Dimming Room Controller With Antenna, Power
Metering, and Contact Closure
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Input Voltage ......................................................120/277VAC, 50/60Hz
Relay rated for up to:
Incandescent ......................................................... 10A @120VAC
Conduit
Ballast and E-Ballast ...................................... 10A @120/277VAC
Adapter
Class 1 & 2 Dimming Output, 0-10V sinks up to 50mA per channel
Metering capability provides power monitoring within 2% of the true value.
Connection to DLM Network .......................................................... Wireless
Wireless Radio ...................................Single, Concurrent 802.15.4 and
Antenna
Gland External antenna for J-box mounting
Wireless Communication
IPv6 Mesh range between wire powered devices
(LMBR-650, LMBC-650, LMRC-6xx, LMPL-6xx) ...... up to 100 ft.
IPv6 Mesh range for battery powered devices .................. up to 60 ft.
Bluetooth low energy technology range .......................up to 30 ft.
Wireless Encryption
AES-128 bit symmetric key, randomly generated per PAN
Environment
Operating Temperature ......................... 32° to 131°F (0° to 55°C)
Storage Temperature ........................... 23° to 176°F (-5° to 80°C)
Relative Humidity ............................... 5 to 95% (non condensing)
Other
Compatible border router: ....................... Wattstopper LMBR-650
BACnet IPv6 capable
Compliance/Regulatory
UL2043 plenum rated, FCC Part 15, RoHS,
Bluetooth certified
UL and cUL listed (E101196)
UL/CUL listed under UL60730. This model is Complementary
Listed to "Emergency Lighting Equipment", (UL924) intended
for Indoor Dry Locations.
Recommended junction box for Chicago Plenum or conduit requirements*:
Garvin Industries 4-11/16 Chicago Plenum Air Tight Junction Box,
2-1/8 in. Deep, 3/4 in. Knockouts, item #72171-3/4-VT or equivalent
* Sold separately by others
PRODUCT DESCRIPTION
®
SPECIFICATIONS
®
........................... Bluetooth low energy technology, 2.4GHz
®
low energy technology wireless
