LEGRAND Wattstopper LMRC-611MCC Quick Start Manual

No: 28018 – 06/20 rev. 5
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMRC-611MCC
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Installation shall be in accordance with all applicable regulations,
local and NEC codes. Wire connections shall be rated suitable for the
wire size employed.
For Class 2 DLM devices and device wiring: To be connected to a
Class 2 power source only. Do not reclassify and install as Class 1, or
Power and Lighting Wiring.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. Do not use outdoors.
c. Do not mount near gas or electric heaters.
d. Equipment should be mounted in locations and
at heights where it will not readily be subjected to
tampering by unauthorized personnel.
e. The use of accessory equipment not recommended by
the manufacturer may cause an unsafe condition.
f. Do not use this equipment for other than intended use.
g. Installation should be performed by qualified service
personnel.
SAVE THESE INSTRUCTIONS
The LMRC-611MCC is a wireless room controller that is compatible with all Wattstopper IPv6/Bluetooth
DLM sensors and switches. Using Push-to-Pair or the DLM Config App, wireless devices can be paired to a room controller for stand-alone
room operation.
The LMRC-611MCC can also be joined to a multi-room mesh network by adding an LMBR-650 border router. Wireless room controllers
can join an LMBR-650 network using the wireless DLM Config App or LMCS v4.7 and later.
The room controller also includes a contact closure to support HVAC and DLM Plug load transmitter (WRC-TX) integration.
IMPORTANT INSTALLATION NOTES:
• You must maintain a minimum of 6" between each room controller on the same junction box. This means mounting the LMRC on
opposite ends.
• Ceiling mounted LMRCs must be mounted with the label side facing down towards the floor to increase communication performance
with other wireless switch and sensor devices. LMRCs mounted on the wall must have the unit label face into the room.

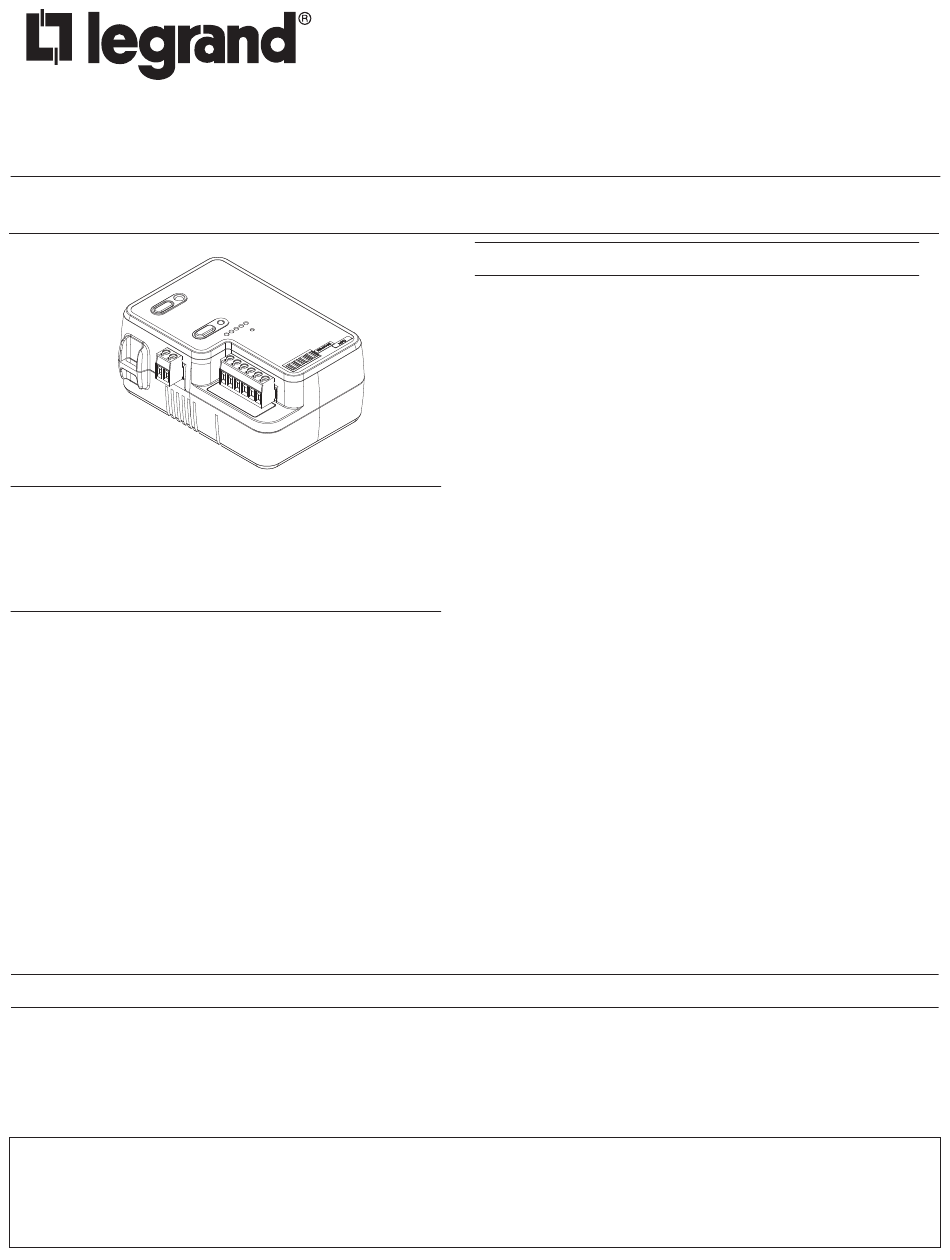

Wattstopper
DLM Single Relay Room Controller w/0-10V Dimming and IPv6/Bluetooth
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Input Voltage ......................................................120/277VAC, 50/60Hz
Relay rated for up to:
Incandescent ......................................................... 10A @120VAC
Ballast and E-Ballast ...................................... 10A @120/277VAC
Class 1 & 2 Dimming Output, 0-10V sinks up to 50mA per channel
Metering capability provides power monitoring within 2% of the true
value.
Connection to DLM Network .......................................................... Wireless
Wireless Radio ...................................Single, Concurrent 802.15.4 and
Wireless Communication
IPv6 Mesh range between wire powered devices
(LMBR-650, LMBC-650, LMRC-6xx, LMPL-6xx) ...... up to 100 ft.
IPv6 Mesh range for battery powered devices .................. up to 60 ft.
Bluetooth low energy range .........................................up to 30 ft.
Wireless Encryption .................................... AES-128 bit symmetric key
Environment
Operating Temperature ......................... 32° to 131°F (0° to 55°C)
Storage Temperature ........................... 23° to 176°F (-5° to 80°C)
Relative Humidity ............................... 5 to 95% (non condensing)
Other
Compatible border router: ....................... Wattstopper LMBR-650
BACnet IPv6 capable
Compliance/Regulatory
UL2043 plenum rated, FCC Part 15, RoHS,
Bluetooth certified
UL and cUL listed (E101196)
UL/CUL listed under UL60730. This model is Complementary
Listed to "Emergency Lighting Equipment", (UL924) intended
for Indoor Dry Locations.
PRODUCT DESCRIPTION
®
SPECIFICATIONS
.............................................. Bluetooth Low Energy, 2.4GHz
® low energy technology wireless
®
