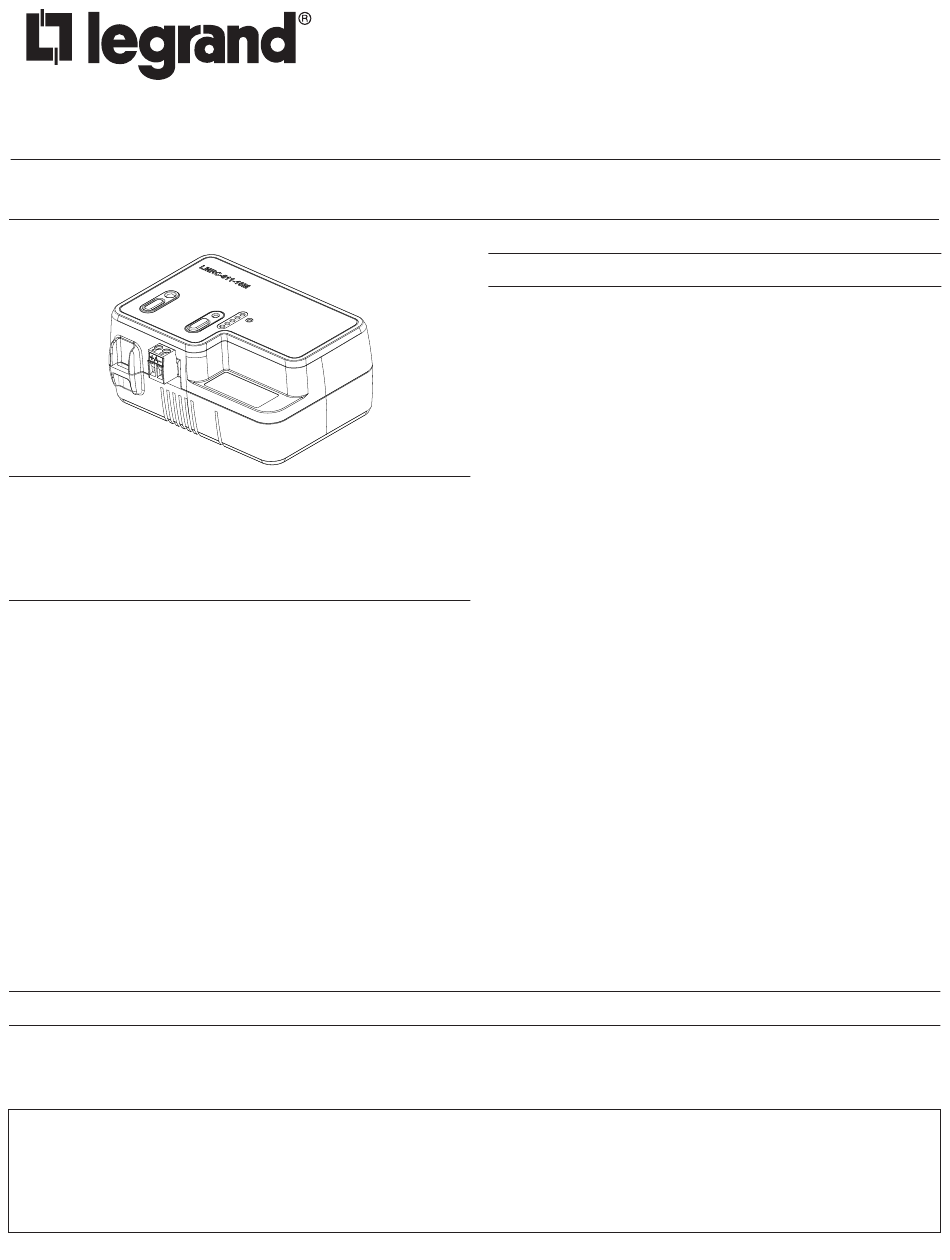

LEGRAND Wattstopper LMRC-611-16M Manual

No: 28388 – 4/24 rev. 8
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMRC-611-16M
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Installation shall be in accordance with all applicable regulations,
local and NEC codes. Wire connections shall be rated suitable for the wire
size employed.
For Class 2 DLM devices and device wiring: To be connected to a Class 2
power source only. Do not reclassify and install as Class 1, or Power and
Lighting Wiring.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. Do not use outdoors.
c. Do not mount near gas or electric heaters.
d. Equipment should be mounted in locations and at heights
where it will not readily be subjected to tampering by
unauthorized personnel.
e. The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
f. Do not use this equipment for other than intended use.
g. Installation should be performed by qualified service
personnel.
SAVE THESE INSTRUCTIONS
The LMRC-611-16M is a wireless room controller that is compatible with all Wattstopper IPv6/Bluetooth
DLM sensors and switches. Using Push-to-Pair or the DLM Config App, wireless devices can be paired to a room controller for stand-
alone room operation.
IMPORTANT INSTALLATION NOTES:
• You must maintain a minimum of 6" between each room controller on the same junction box. This means mounting the LMRC on
opposite ends.
• Ceiling mounted LMRCs must be mounted with the label side facing down towards the floor to increase communication
performance with other wireless switch and sensor devices. LMRCs mounted on the wall must have the unit label face into the
room.
Wattstopper
Wireless Dimming 0-10V Room Controller
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido
Input Voltage ........................................................ 120/277VAC, 50/60Hz
Relay rated for up to:
Class 1 & 2 Dimming Output, 0-10V sinks up to 50mA per channel
Metering capability provides power monitoring within 2% of the true value.
Environment:
Connection to DLM Network .............................................................Wireless
Wireless Radio .....................................Single, Concurrent 802.15.4 and
Wireless Communication
IPv6 Mesh range between wire powered devices
Wireless Encryption ...................................... AES-128 bit symmetric key
Compliance/Regulatory
PRODUCT DESCRIPTION
®
SPECIFICATIONS
Incandescent ............................................................16A @120VAC
Ballast and E-Ballast .........................................16A @120/277VAC
Operating Temperature ............................32° to 131°F (0° to 55°C)
Storage Temperature ..............................23° to 176°F (-5° to 80°C)
Relative Humidity ..................................5 to 95% (non condensing)
.................................................Bluetooth Low Energy, 2.4GHz
(LMRC-6xx, LMPL-6xx) ................................................up to 100 ft.
IPv6 Mesh range for battery powered devices .....................up to 60 ft.
Bluetooth low energy range ...........................................up to 30 ft.
UL2043 Plenum rated, FCC, RoHS,
Bluetooth certified
UL and cUL listed (E101196)
UL/CUL listed under UL60730. This model is
Complementary Listed to "Emergency Lighting Equipment",
(UL924) intended for Indoor Dry Locations.
® low energy technology wireless
