User Guide

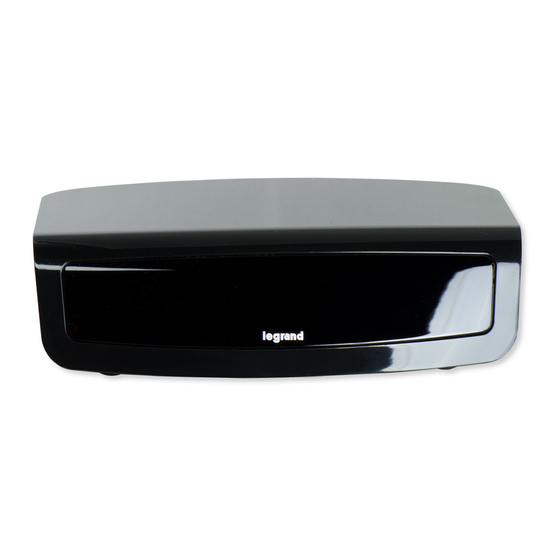

Whole House Lighting Controller
LC7001
radiant
RF Lighting Control
®
adorne
Wi-Fi Ready Lighting Control
®
1308243 REV. F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC7001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND LC7001

Summary of Contents for LEGRAND LC7001

  • Page 1 User Guide Whole House Lighting Controller LC7001 radiant RF Lighting Control ® adorne Wi-Fi Ready Lighting Control ® 1308243 REV. F...
  • Page 2 These Class B digital apparatus comply with Canadian ICES-003. 301 Fulling Mill Road, Suite G Middletown, PA 17057 (800) 223-4162 © Copyright 2019 by Legrand, Inc. All Rights Reserved. www.legrand.us Whole House Lighting Controller - LC7001 1308243 REV. F...

  • Page 3: Table Of Contents

    System Discovery ..........19 Add a Lighting Device ........19 Apple Watch Operation ........36 Using the Legrand Lighting Control App ....20 Accessing the App ......... 36 Turn All Lights ON or OFF ......20 Lights Screen ..........36 View Recent and Upcoming Scenes .....

  • Page 4: Quick Links

    LC7001 Operation Voice Integration How many RF Lighting Control devices can I control How do I use Amazon Alexa to control the LC7001? with the LC7001? How do I use Google Home to control the LC7001? Which legacy RF Lighting Control devices (DRDx...

  • Page 5: Overview

    The LC7001 works in conjunction with the Legrand Lighting Control iOS/Android app to provide uninterrupted control and automation of RF Lighting Control System devices. Connecting the LC7001 to a home network with an Ethernet cable and then using the app through a mobile device enables you to: •...

  • Page 6: Prerequisites

    Prerequisites The proper function and control of the LC7001 Whole House Lighting Controller depends on the following requirements: • proper installation, configuration, and house/group binding of all system components, per Legrand instructions, prior to the installation of the LC7001. •...

  • Page 7: Lc7001 Operation

    The LC7001 allows for remote access to the system via Legrand cloud. Setting up a Legrand cloud account provides voice control capability for the LC7001 through Amazon Alexa and the Google Assistant.

  • Page 8: Setting Up Remote Access

    Select Yes. NOTE: To open the Remote Access Setup prompt, go to Settings > Remote Access Info > Remote Access Setup in the Legrand Lighting Control app. Your setup is complete. You will be redirected back to the app.

  • Page 9: Amazon Alexa Voice Control Integration

    For instruction on creating and integrating a Legrand cloud account with the LC7001, refer to “Setting up Remote Access” in the Legrand Whole House Lighting Controller User Guide or go to Settings > Remote Access Info > Remote Access Setup in the Legrand Lighting Control app.
  • Page 10 Sign in to your Eliot Account. If you don’t have an Eliot Account, select the option to create one. An activation link will be sent, so you can finish creating your account. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 11 Click Accept to grant Amazon Alexa permission to access your Legrand data. After receiving a successful link message, close the window and return to the Skills page. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 12 Device discovery can take up to 20 seconds. • Device discovery must be performed after devices are added to the Legrand Lighting Control app. In the Alexa app, go to Smart Home. Under Your Devices, select Discover Devices. Whole House Lighting Controller - LC7001...

  • Page 13: Grouping Discovered Devices

    Grouping Discovered Devices Use the Alexa app to designate groups of Legrand Lighting Control System devices. Groups allow control of multiple devices using a single Alexa command. Example: A group named “basement” can have multiple devices located in the basement assigned to the group for control at one time.

  • Page 14: Supported Commands

    Turn ON/OFF all the lights Brighten a light (Results in an adjustment level of 45% for dimmable devices) Alexa, turn < on/off > everything Alexa, brighten the < light/room name > Whole House Lighting Controller - LC7001 1308243 REV. F...

  • Page 15: Google Home Voice Control Integration

    For instruction on creating and integrating a Legrand cloud account with the LC7001, refer to “Setting up Remote Access” in the Legrand Whole House Lighting Controller User Guide or go to Settings > Remote Access Info > Remote Access Setup in the Legrand Lighting Control app.
  • Page 16 Sign in to your Eliot Account. If you don’t have an Eliot Account, select the option to create one. An activation link will be sent, so you can finish creating your account. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 17 Now, you can link these devices to your home and sort them into rooms. To add or change devices in your RFLC system in the future, simply say “Hey Google, sync my devices.” Whole House Lighting Controller - LC7001 1308243 REV. F...

  • Page 18: Assigning Devices To A Room

    Assigning Devices to a Room Google Home supports the control of Legrand Lighting Control System devices, and other enabled devices, with a single voice command using the ROOMS tab. For details on setting up rooms, follow Step 4 of the instructions on the Google support site at: https://support.

  • Page 19: Legrand Lighting Control App Functionality

    The system discovery process initiates when opening the Legrand Lighting Control app for the first time. System discovery adds devices to the LC7001 by wirelessly discovering a lighting device in the home after it is touched. A prompt appears to begin adding devices.

  • Page 20: Using The Legrand Lighting Control App

    • : status of each lighting device (blue indicates ON). • : current brightness level. NOTE: If integrating with the QMotion Advanced Shading System, refer to “Display Changes” on page 34. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 21 • : Tap [+] to add a new device to the LC7001. Similar to the system discovery process, when selecting , a prompt appears requesting that you tap the lighting device to be added. Once tapped, the device becomes part of the system and a prompt appears to name the device.

  • Page 22: Go To The Scenes Page

    Never : scene is triggered manually. » Once : scene automatically runs one time. » Weekly : scene repeats weekly based on the » day(s) and time defined. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 23 AM or PM Sunrise or Sunset Press <Repeat to return to the Repeat pop-up box and see your updated selections. Press <Add A Scene to return to the scene creation screen. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 24 NOTE: When using a Legrand Scene Controller with a “Toggle Scene ON/OFF” button assigned, the fade rate applies only when the scene is ON. A second button press turns the lighting devices ON or OFF at the system default rate. This setting is not adjustable. Learn...

  • Page 25: Edit A Scene

    Name of Scene A pop-up box appears with change options for that scene: Name. » Repeat settings. » Fade Rate settings. » » Individual device settings. Whole House Lighting Controller - LC7001 1308243 REV. F...

  • Page 26: Go To Settings

    Set Time Zone Time Zone Check mark the desired time zone by tapping the appropriate time zone name. Set Daylight Savings Time to turn the “Observe Daylight Savings Time” setting ON or OFF. Whole House Lighting Controller - LC7001 1308243 REV. F...

  • Page 27: In-Wall Scene Controllers

    In-Wall Scene Controllers Legrand Scene Controllers provide the ability to manually trigger scenes created in the LC7001 Whole House Lighting Controller. This section describes how to control scene controllers designed to work with the LC7001. NOTES: • The LC7001 supports a maximum of 40 compatible scene controllers.
  • Page 28 Each controller button is called a Bank. > to the right of a bank. New menu options appear, showing a list of all scenes available to assign to a Bank. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 29 LED indicator light. When pressing the button of an inactive scene, the scene activates and the LED indicator becomes bright. Adjust the active scene by repeatedly pressing the “+” and “-“ buttons on the scene controller. Press-and-hold will not function. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 30 Repeat this process for the remaining banks on the scene controller. Removing a Controller Within Settings, select In Wall Scene Controllers Select Edit next to the scene name to be removed. Select Delete Whole House Lighting Controller - LC7001 1308243 REV. F...

  • Page 31: Perform A Firmware Update

    Manually updating firmware is optional. Updates should happen automatically. Check the Current Version of the App The current version of the app appears to the right of the App Version option. Whole House Lighting Controller - LC7001 1308243 REV. F...

  • Page 32: Qmotion ® Advanced Shading System Integration

    The LC7001 supports up to 50 wired or wireless shades and QMotion groups, if they are connected to a Qube bridge that runs on the same home network as the LC7001. The shades and groups are included as part of the LC7001 device maximum (100 devices).

  • Page 33: Integrating Qmotion Shades

    Integrating QMotion Shades To be used with the Legrand Lighting Control System, the QMotion System must be set up through the Qube bridge device, using the Qube Coordinator app. Connecting QMotion to the Legrand Lighting Control System Set up the QMotion shading system through the Qube bridge device, using the Qube Coordinator app.

  • Page 34: Lighting Control App Functionality With Shades From Qmotion

    60 seconds to reflect the updated status of an individual shade device if the command comes from this QMotion group, another QMotion group, or a command sent directly to the QMotion Qube instead of the LC7001. Whole House Lighting Controller - LC7001 1308243 REV. F...

  • Page 35: Shade Device Functionality

    Voice control with Amazon Alexa* or Google Home** is currently limited for shades. Once integrated into the Legrand Lighting App and synced with the Amazon Alexa or Google Home apps, the shades will respond to Set, Dim, and Brighten commands between 1 and 100%.

  • Page 36: Apple Watch Operation

    Legrand Whole House Lighting Controller firmware, version 2.1 or later. • For connection to the Legrand Lighting Control app through the Apple Watch, pair the Apple Watch to an iPhone connected to the same wireless network as the LC7001 Whole House Lighting Controller. •...

  • Page 37: Scenes Screen

    The most used lighting devices and scenes always appear near the top of the list. Scenes Screen The Scenes screen displays the available scenes configured on the LC7001. • Tap the individual scene name to execute the desired scene. Whole House Lighting Controller - LC7001 1308243 REV. F...
  • Page 38 For technical assistance on your Lighting Control app, contact On-Q Technical Support between 8 AM and 6:30 PM EST. Phone: 717-546-5412 Email: technical.support-hs@legrand.us Chat: www.legrand.us/on-q (Click on the icon to open a dialogue box)
