Permobil 102588-99-0 Assembly Instruction Manual

Document type
Assembly Instruction
Document No. Revision
gggg gg
232740 B
Production state
ggggggg
Not Released
SERIES
Preform Date
ggggggg
2008-01-28
Armrest bag
Order no.: 102588-99-0
List of parts in the set

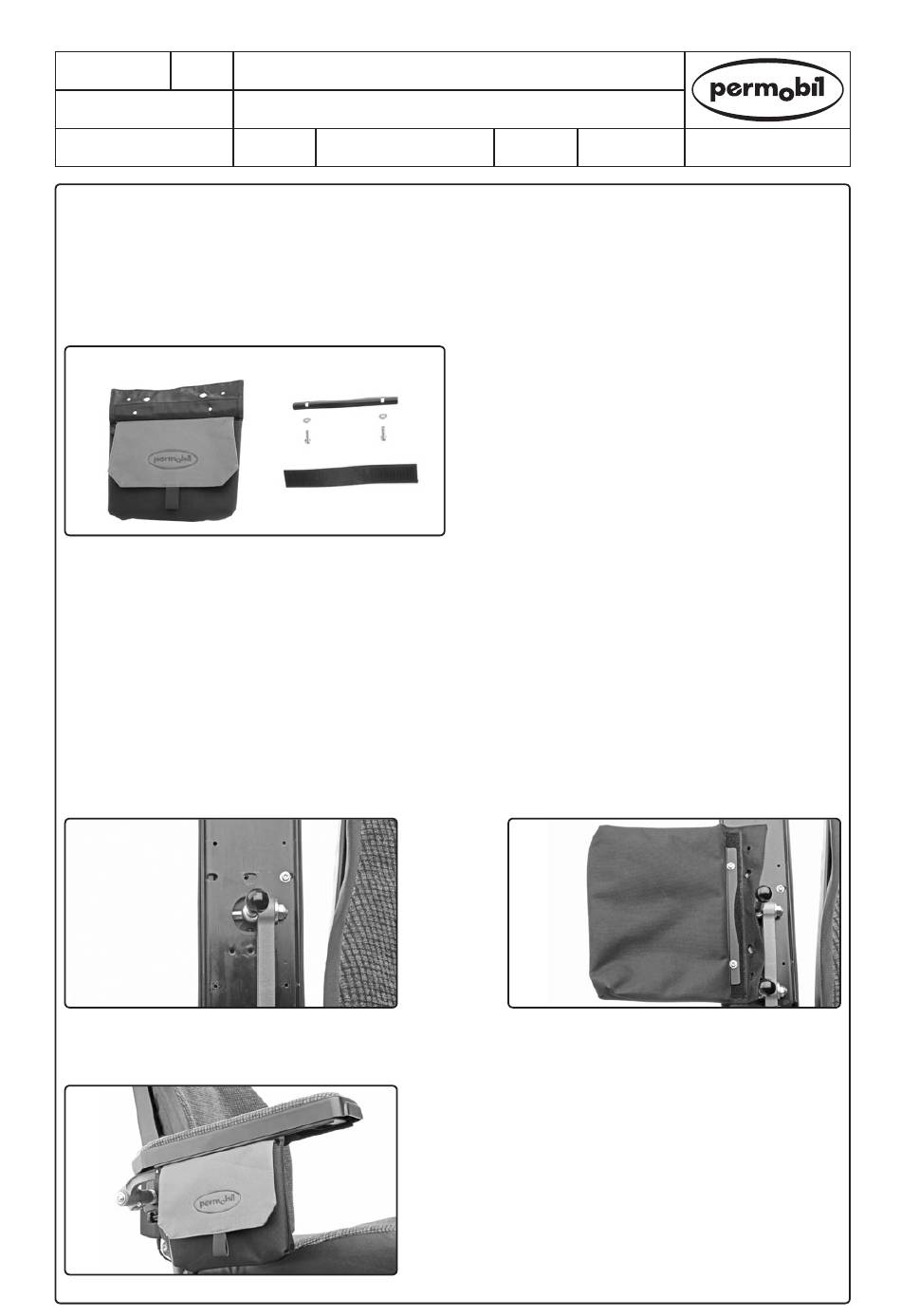

Fig. 1. Parts included in the set.
Read the instructions carefully before starting installation
Mounting the bag on the Corpus II armrest
Mount the bag on the armrest reinforcement plate, which has two pre-drilled holes. Fig. 2. Turn the bent
part of the bracket to face the outer edge of the armrest. Mount a washer on one of the M4x12 screws.
Insert the screw through one of the holes in the bracket. The bag has two holes in the Velcro tape for
mounting purposes. Insert the screw through one of the holes and screw to the armrest. Mount the next
screw with washer. Tighten the screws. Fig. 3.
Fig. 2. The armrest from below. Mount the
bag in the two 4 mm screw holes on the left.
Preform By Approved Date
ggg ggggggg ggg
BTA 2010-06-17
Approved By
GHT
1 pc. Bag.
1 pc. Bracket.
2 pcs. Washers.
2 pcs. Screws M4x12.
1 pc. Self-adhesive Velcro tape.
Fig. 3. The mounted bag. Turn the bent
part of the bracket to face the outer
Fig. 4. The bag in place.
Page
1
edge of the armrest.
