ROHO QUADTRO SELECT
®

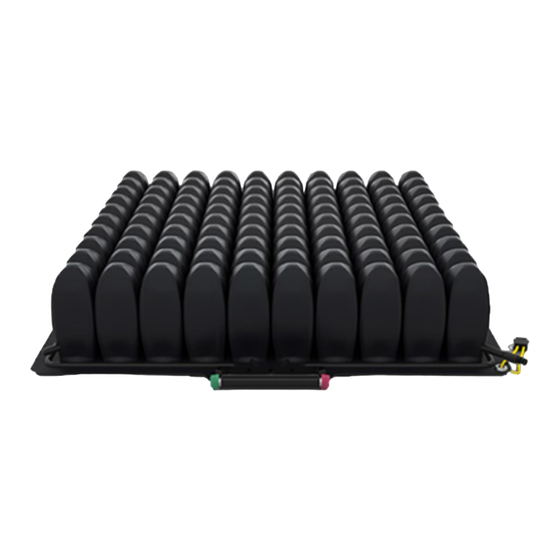

The QUADTRO SELECT has four compartments of air cells. When the ISOFLO
ISOFLO is closed, the air is "locked" within each compartment. The inflation level of each compartment can be separately adjusted. This allows you to correct or
accommodate side-to-side and/or anterior-posterior asymmetries of the pelvis and upper legs. NOTE: Before adjusting the cushion for an asymmetry, you MUST
adjust the air inflation level to the proper cushion inflation setting as outlined below.
Inflate and adjust the ROHO QUADTRO
®
SELECT cushion for a new individual
®

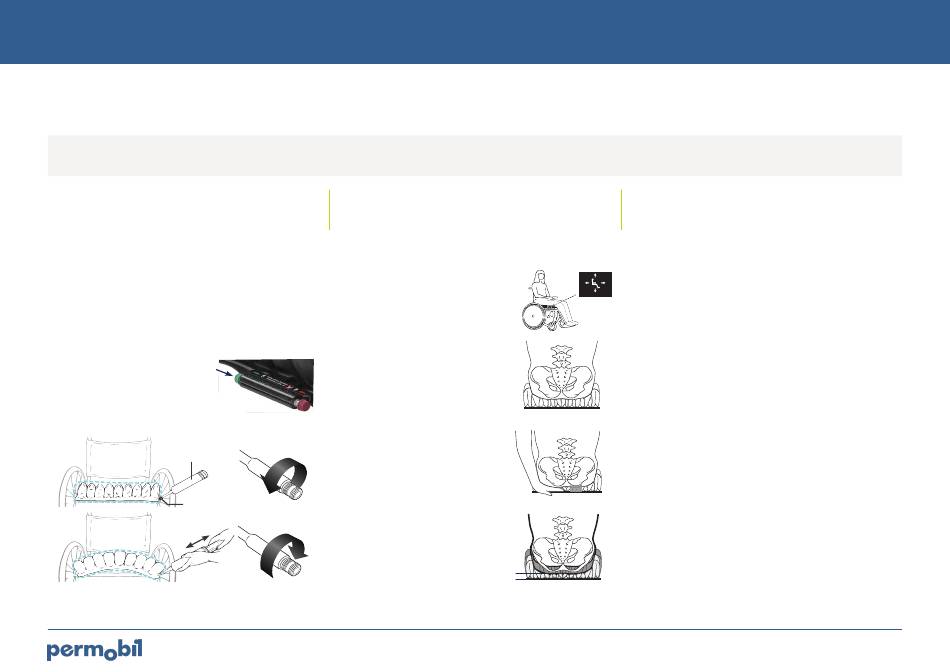

QUADTRO SELECT Setup
®
1. Place the QUADTRO SELECT cushion in the
wheelchair with the air cells facing up and the non-
skid surface of the cover facing down.
2. Before inflating, you must open the ISOFLO Memory
Control so that all of the air cells inflate. To open,
push green knob toward the unlocked position.
3. Slide the rubber nozzle of the hand pump over
the inflation valve. Pinch the
nozzle, turn to open the
inflation valve, and overinflate
the air cells.
Hand
Pump
Inflation Valve
4. Remove the hand pump.
®
Cushion Inflation and Adjustment Guide
Check the inflation level daily
by performing a hand check
QUADTRO SELECT
After overinflating the cushion, perform a hand check to
adjust to the proper cushion inflation setting:
1. The individual should sit in
the chair in their usual
position. The cushion should
be centred beneath the
individual.
2. Perform a hand check:
a. Slide your hand between the
cushion and the individual.
Lift the leg slightly and feel
for the lowest bony
Open
prominence, and then lower
the leg to a sitting position.
b. Open the inflation valve to
remove air, keeping your
hand beneath the
Close
individual's lowest bony
prominence.
c. Release air until you
can slightly move your
fingertips. Close the
inflation valve
®
Memory Control is open, the air flows freely between the compartments. When the
®
Adjustment
½ " - 1 "
Proper cushion inflation setting
½ " - 1 " (1.5 cm - 2 .5 cm)
Re-adjust the inflation level only as
needed (typically every 3-4 months)
Hand Check Results
• If you can slightly move your fingertips: the cushion
is at the proper cushion inflation setting (½" - 1" air
between the lowest bony prominence and the seat
surface) and no further adjustment required.
• If you can easily move your fingertips: there is too
much air between the lowest bony prominence and
the seat surface. Open the inflation valve and slowly
release air until you can barely move your fingertips,
then close the inflation valve.
• If you cannot move your fingertips at all: there is too
little/no air between the lowest bony prominence
and the seat surface. Open the inflation valve and
slowly add air until you can slightly move your
fingertips, then close the inflation valve.
See reverse side for instructions on how to adjust
®
QUADTRO SELECT for postural asymmetries
