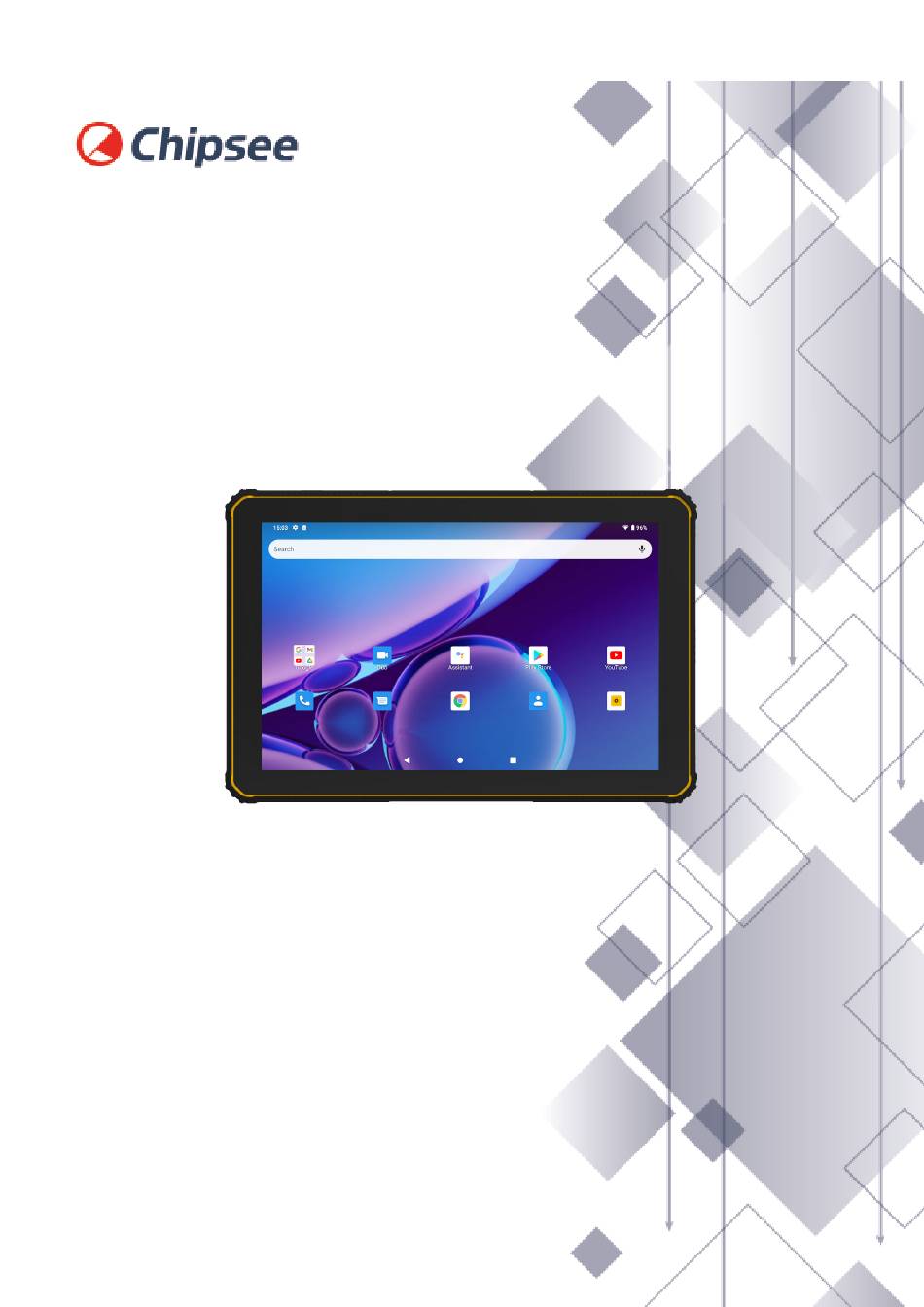

- Page 1 Industrial PC HPC-MT6765-101 PN: HPC-MT6765-101 Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
Contents HPC-MT6765-101 1. Overview 2. Ordering Options 3. Standard Accessories 4. Optional Modules 5. Dimension 6. Hardware Specification 7. While Using the Device 7.1. USB 7.2. Cleaning 7.3. Case and Panel 7.4. Before Moving the Device 7.5. When Not Using the Device 7.6. -
Page 3: Hpc-Mt6765-101
HPC-MT6765-101 HPC-MT6765-101 Front View Chipsee Page 3 of 16... -
Page 4: Rear View
HPC-MT6765-101 Rear View Chipsee Page 4 of 16... -
Page 5: Side View
HPC-MT6765-101 Side View 1 Chipsee Page 5 of 16... - Page 6 HPC-MT6765-101 Side View 2 Chipsee Page 6 of 16...
-
Page 7: Overview
HPC-MT6765-101 Overview Overview The HPC-MT6765-101 Handheld Tablet PC is an 10.1 inch rugged tablet PC, it’s waterproof, dustproof, suitable for outdoor operation scenarios, especially in warehousing, supermarkets, medicare, retail and other fields. The device supports 1D/2D barcode scanner, it takes advantage of GPRS, 4G, WiFi, Bluetooth and other wireless communication channels to transmit data at a high speed efficiently. -
Page 8: Standard Accessories
1 x 5V/3A Charger. • 1 x Packaging Box Optional Modules The HPC-MT6765-101 does not include the following module by default: Barcode Scanner. Dimension The dimension of HPC-MT6765-101 is 234 x 144 x 16.8 mm. Chipsee Page 8 of 16... -
Page 9: Hardware Specification
HPC-MT6765-101 Hardware Specification Hardware Specification Product HPC-MT6765-101 MTK MT6765 Octa Core 2.3GHz(4 x Cortex-A53 @ 1.8GHz, 4 x Cortext-A53 @ 2.3GHz) IMG PowerVR GE8320 RAM/Storage 4GB+64GB 10.1 inch, 1200 x 1920, TFT, 350nits(TYP) 400nits(MAX) Touch 10-point touch, supports stylus Camera... - Page 10 HPC-MT6765-101 Hardware Specification Product HPC-MT6765-101 Waterproof IP65 Dropping Proof 1.2m Dimensions 252.0 x 168.0 x 13.8mm Weight 800±50g Accessories 5V/3A Charger, USB Type-C Cable Table 490 Key Features Chipsee Page 10 of 16...
-
Page 11: While Using The Device
HPC-MT6765-101 While Using the Device While Using the Device Do not short circuit the ports with metal, it might damage the circuits inside the device. Cleaning Please use dry, soft cloth when cleaning. Do not use chemical solvent, or the color might fade and the case might deformate. - Page 12 HPC-MT6765-101 Others Avoid exposure to direct strong sunlight or heat, they might affect the internal circuit and the case. Condensation might occur when environment temperature changes rapidly. In this case, wait an hour before using the device, to allow it to adapt to the new environment.
-
Page 13: Safety
HPC-MT6765-101 Safety Safety Please take care of the following aspects when you use this device: Follow the regulations when the device is used in the hospitals. Keep the device and accessories out of children’s reach. Put the batteries in e-waste bins if the old batteries are to be recycled. - Page 14 HPC-MT6765-101 Safety If the wireless signal is poor, go to the coverage area to take advantage of the wireless communication features. Screen performance might change due to significant temperature changes and long time usage. Chipsee Page 14 of 16...
-
Page 15: Trouble Shooting
HPC-MT6765-101 Trouble Shooting Trouble Shooting If below situations occur, please follow the instructions to fix the issues. Contact a professional if none of these help. • Device Does Not Turn On (Not pressing the power button correctly) Hold the power button for at least 2 seconds. -
Page 16: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
