Summary of Contents for Chipsee PPC-A55-101

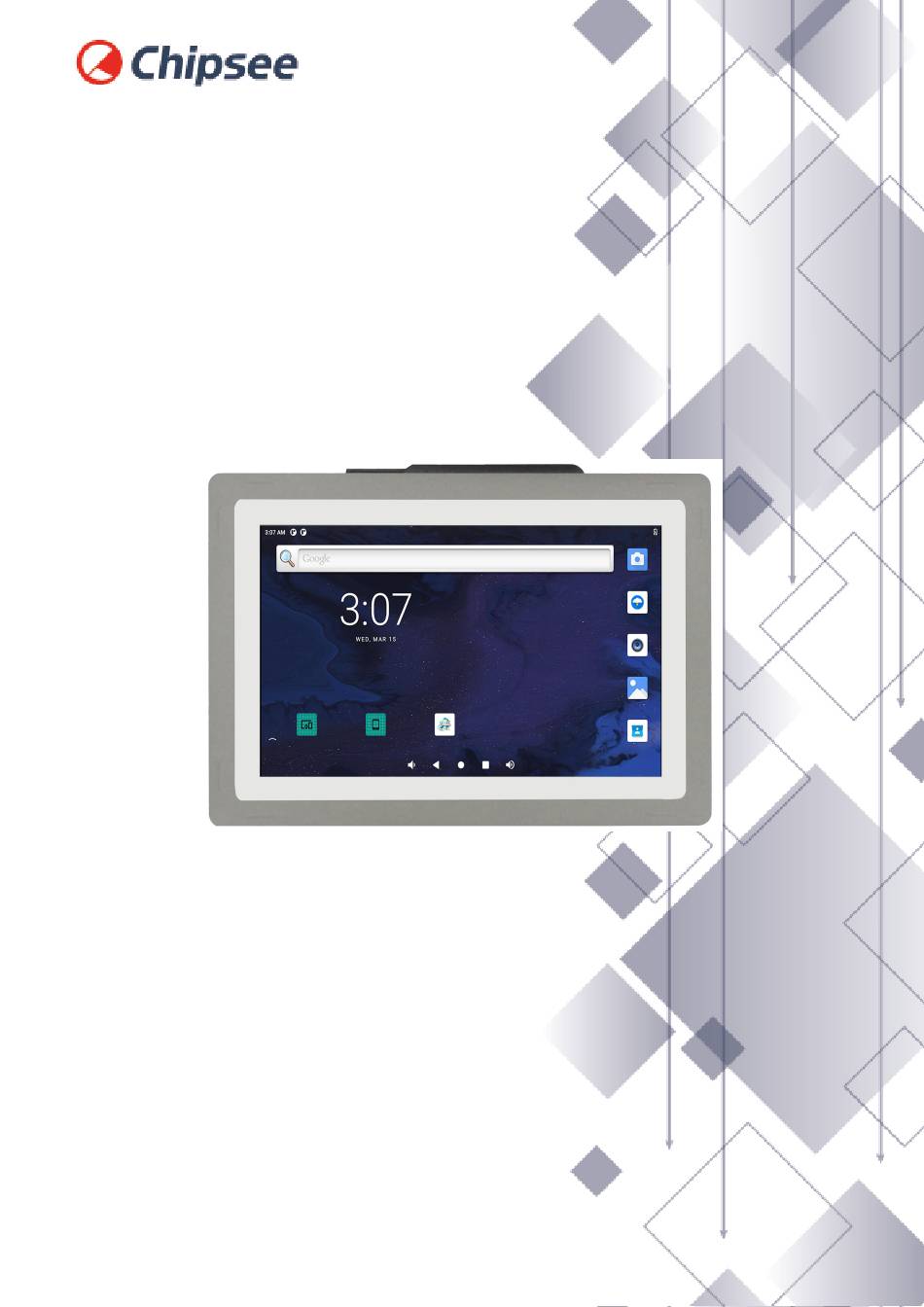

- Page 1 Industrial PC PPC-A55-101 PN: CS12800-RK3568-101P Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-A55-101 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232+RS485+CAN+GPIO Connector 1.6.2. USB Connectors 1.6.3. LAN Connectors 1.6.4. WiFi & BT Module 1.6.5. -
Page 3: Ppc-A55-101

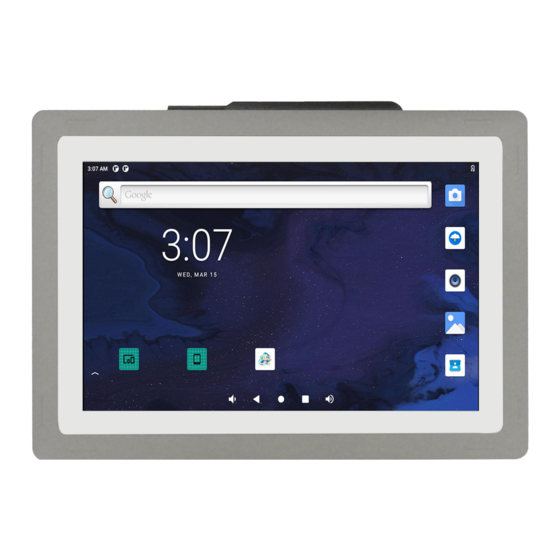

PPC-A55-101 PPC-A55-101 Front View Rear View Chipsee Page 3 of 18... -
Page 4: Product Overview
Product Overview ® The Cortex -A55 series PPC-A55-101 (PN: CS12800-RK3568-101P) is a high-quality IP65- compliant industrial panel PC. It features a 10.1” ten-point capacitive touch screen with a resolution of 1280 x 800 pixels and a brightness of 400 cd/m . -
Page 5: Ordering Options
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 6: Hardware Features
PPC-A55-101 Hardware Features Hardware Features The PPC-A55-101 Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. PPC-A55-101 Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz) -
Page 7: Power Input
Power Input The PPC-A55-101 Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown in the figure below. -
Page 8: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A55-101 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 9: Rs232+Rs485+Can+Gpio Connector
PPC-A55-101 RS232+RS485+CAN+GPIO Connector RS232+RS485+CAN+GPIO Connector The serial communication interfaces (RS485, RS232, and CAN) are routed to a 24-pin 3.81mm terminal, as illustrated in the figure below. Serial communication on both RS485 and RS232 interfaces can reach up to 115200 kbps. - Page 10 PPC-A55-101 RS232+RS485+CAN+GPIO Connector The table below offers a detailed description of every pin: RS232 / RS485 / CAN / GPIO Pin Definition: Pin Number Definition Description Pin 1 CAN0_H CAN H signal Pin 2 CAN1_H CAN H signal Pin 3...
-
Page 11: Usb Connectors
PPC-A55-101 USB Connectors RS232 / RS485 / CAN / GPIO Pin Definition: Pin 21 System Ground Pin 22 GND_ISO Isolated Ground Pin 23 VCC5V System 5V output, up to 1A Pin 24 VDD_ISO Isolated Power Input, supports 5V~24V Table 134 Connectivity Section ... -
Page 12: Lan Connectors
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). WiFi & BT Module The PPC-A55-101 Industrial Panel PC is equipped with the popular Realtek RTL8821CS WiFi/BT module which supports BT/BLE 2.1/3.0/4.2, as well as 802.11ac/abgn 433Mbps 2.4/5.8 GHz Wireless LAN (WLAN). -
Page 13: 4G/Lte Module
PPC-A55-101 4G/LTE Module Figure 593: RTL8821CS WiFi/BT Module The PPC-A55-101 includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below. WiFi+BT Antenna SMA 4G/LTE Module The PPC-A55-101 Industrial Panel PC is equipped with a mini-PCIe connector that can connect a 4G/LTE module. -
Page 14: M.2 Ssd Slot
M.2 SSD Slot There is a M.2 slot on the PPC-A55-101 that allows an optional SSD. The M.2 slot is capable of holding a PCI-E 3.0 x 2, 2280 NVME SSD. The PPC-A55-101 does not come shipped with an SSD by default, if you want a different configuration you can consult us when placing an order. -
Page 15: Audio Connectors
The product does not come shipped with the TF Card by default. Audio Connectors The PPC-A55-101 Industrial Panel PC features some audio peripherals. It has a 3.5mm audio input/output jack, an internal speaker, as well as a small buzzer. Audio Connector (enclosed PC version) The miniature 2W embedded speaker is handy for audio reproduction, the small buzzer can play alarm/notification sounds. -
Page 16: Hdmi Connector
OS in MASKROM mode, the button will be used. Please refer to the software documents for more information. PROG Button Mounting Procedure You can mount PPC-A55-101 with VESA mounting: 100 x 100 mm, 4 x M4 (6mm) screws. You can also mount PPC-A55-101 with panel mounting method. Attention Chipsee... -
Page 17: Mechanical Specifications
Please make sure the display is not exposed to high pressure when mounting into an enclosure. You can find detailed information about mounting in the Mount IPC Guide. Panel mounting (PPC-A55-101) Mechanical Specifications For PPC-A55-101, the outer mechanical dimensions are 275.5 x 193.5 x 46.0mm (W x L x H). Chipsee Page 17 of 18... -
Page 18: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
