- Page 1 Industrial PC PPC-A72-101-C PN: CS12800R101P Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. PPC-A72-101-C 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232+RS485+CAN+GPIO Connector 1.6.2. USB Connectors 1.6.3. LAN Connectors 1.6.4. WiFi & BT Module 1.6.5. -
Page 3: Ppc-A72-101-C

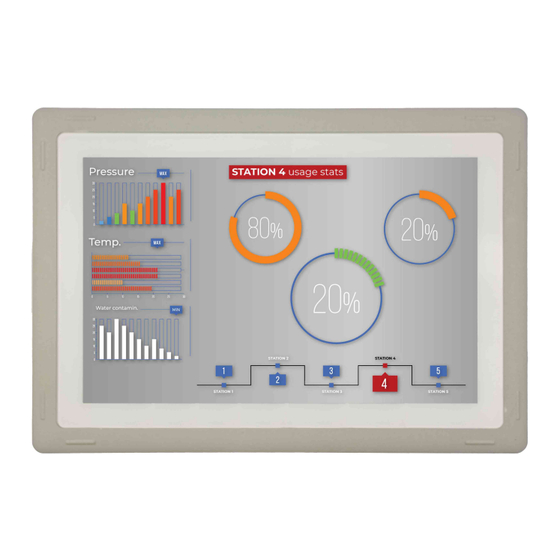

PPC-A72-101-C PPC-A72-101-C Front View Rear View Chipsee Page 3 of 18... -
Page 4: Product Overview
Side View 2 Product Overview ® The Cortex -A72/53 series PPC-A72-101-C (PN: CS12800R101P) is a high-quality industrial panel PC. It features a 10.1” ten-point capacitive touch screen with a resolution of 1280 x 800 pixels and brightness of 400 cd/m . -
Page 5: Ordering Options
It also provides a complete set of peripheral interfaces. Ordering Options Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The... -
Page 6: Optional Features
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 7: Power Input
Power Input The PPC-A72-101-C Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below. -
Page 8: Touch Screen
Note The system ground “G” is connected to power negative “-” on board. Touch Screen The PPC-A72-101-C Industrial Panel PC uses a 10-point capacitive touch screen. Figure 409: Capacitive Touch Screen Connector Attention A capacitive touch screen is susceptible to power noise and Electromagnetic Radiation (EMR). It may cause LCD ripples or even capacitive touch malfunction. -
Page 9: Connectivity
PPC-A72-101-C Connectivity Make sure that the PPC-A72-101-C Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. Bad GND problem can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. - Page 10 PPC-A72-101-C RS232+RS485+CAN+GPIO Connector The table below offers more detailed description of every pin and its definition: RS232 / RS485 / CAN / GPIO Pin Definition: Pin Number Definition Description Pin 1 CAN1_H CAN H signal Pin 2 CPU_RS232_2_RXD CPU UART2, CPU RS232 RXD signal...
-
Page 11: Usb Connectors
PPC-A72-101-C USB Connectors RS232 / RS485 / CAN / GPIO Pin Definition: Pin 20 OUT1 Isolated Output 1 Pin 21 System Ground Pin 22 GND_ISO Isolated Ground Pin 23 VCC5V System 5V output, up to 1A Pin 24 VDD_ISO Isolated Power Input,support 5V~24V Table 86 Connectivity Section ... -
Page 12: Lan Connectors
PPC-A72-101-C LAN Connectors Figure 412: USB Type-C Connector (embedded/enclosed PC version) Warning Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the embedded IPC version. LAN Connectors LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. -
Page 13: Wifi & Bt Module
PPC-A72-101-C WiFi & BT Module WiFi & BT Module The PPC-A72-101-C Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/ BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN). - Page 14 PPC-A72-101-C 4G/LTE Module Figure 416: mini-PCIe Connector & 4G Module Figure 417: SIM Card Holder & 4G Antenna SIM Card Direction Attention The product does not come shipped with the 4G/LTE module by default. Chipsee Page 14 of 18...
-
Page 15: Tf Card Slot
PPC-A72-101-C TF Card Slot TF Card Slot The PPC-A72-101-C Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up to 128GB of memory. Figure 418: TF (micro SD) Card Slot Note The product does not come shipped with the TF Card by default. -
Page 16: Power Button
Figure 420: 2W Micro Speaker and Buzzer Power Button The PPC-A72-101-C Industrial Panel PC has a power button, as shown on the figure below. You can use the button to power ON or OFF the industrial PC. Figure 421: Power Button... -
Page 17: Mechanical Specifications
For PPC-A72-101, the outer mechanical dimensions are 275.5 x 193.5 x 46.0mm (W x L x H). 3D Model PPC-A72-101-C 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc. -
Page 18: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
