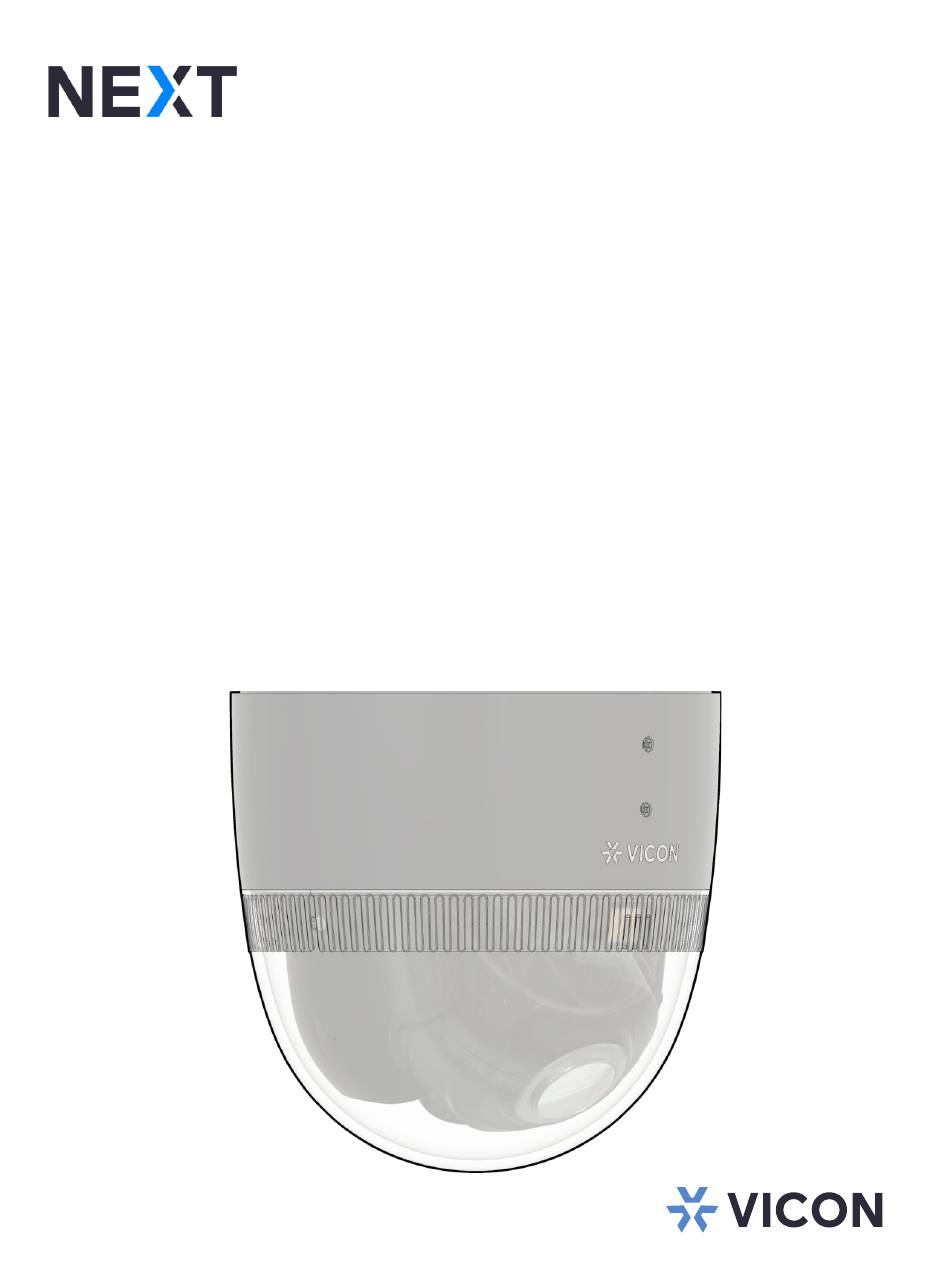

- Page 1 QUICK INSTALLATION GUIDE NEXT MODULAR SYSTEM Solo Fixture Installation...
- Page 2 WARNING • This camera operates at PoE (IEEE 802.3at minimum). • Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. • We are NOT liable of any damage arising either directly or indirectly from inappropriate installation which is not depicted within this documentation.
- Page 3 CE STATEMENT Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer declares that the unit supplied with this guide is compliant with the essential protection requirements of EMC directive and General Product Safety Directive GPSD conforming to requirements of standards EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, and IEC 61000- 4-11 for emission and immunity and UKCA.
- Page 4 IN THIS GUIDE SURFACE MOUNT INSTALLATION Package(s) Contents Installation Determine the Centerline Mount the Base to the Surface Connect the Cables Assemble the Components Install the Camera Sensor CAMERA CONFIGURATION On-Prem Systems Anavio Cloud-Based System Switching Between Anavio and On-Prem Systems...
- Page 5 Sensor Module VNX-FX-SOBK-0 VNX-SN-VRS1-0 • Base • NEXT Camera Sensor • Network Hub • Solo Fixture Vicon Edge Recording Card (optional) VNX-EL-SD5G-0/VNX-EL-SD1T-0 • Mounting Screw Kit • 512GB card • IP67 RJ-45 Connector Shell • 1TB card • T8 Security Torx Wrench...
- Page 6 Once installed, the “C” (for centerline) on the Base will align with the Vicon logo on the Solo Fixture and the lens home position (default position out-of-the-box). So, before you mount the Base to its surface, make sure the “C”...
- Page 7 Mount the Base to the Surface 1. Drill a cable access hole in the surface where the camera will be mounted and expose the ethernet cable and alarm wiring. 2. Once you’ve determined your centerline, use the Base to mark holes for the four mounting screws.
- Page 8 3. Set the Base aside; drill holes and install plastic anchors in those holes (Ǿ6.35 mm). 4. Reposition the Base and attach it to the surface using supplied screws.
- Page 9 Connect the Cables 1. Connect the ethernet cable to the RJ-45 on the Network Hub. NOTE: For outdoor installations, assemble the IP67 Connector Shell over the network cable, then connect and seal. FOR OUTDOOR INSTALLATIONS 2. Connect the Alarm I/O as required. PIN 1 = ALARM IN –...
- Page 10 Assemble the Components 1. Align the single dot indicator on the Network Hub with the dot on the Base and firmly snap the Network Hub into place. Minimum 802.3at PoE is required to power the camera. Observe the LED on the Network Hub to determine if there might be a potential power issue.
- Page 11 Twist the Solo Fixture to the right to lock it into place. The Vicon logo on the Solo Fixture is now aligned with the Base’s centerline (“C”).
- Page 12 Install the Camera Sensor 1. If using edge recording for On-Prem or Anavio solutions, install the Vicon Edge Recording Card (VNX-EL-SD5G-0 or VNX-EL-SD1T-0). NOTE: Only the Vicon Edge Recording cards (VNX-EL-SD5G-0/VNX-EL-SD1T-0) are accepted. 2. Align the double dot indicators on the Camera Sensor with the two lock...
- Page 13 • LED will be solid white for 3 seconds - power is being tested. • LED will flash red - insufficient power. • LED will flash purple/red for 15 seconds - a non-Vicon uSD card is detected. • LED will flash purple/blue for 15 seconds - Vicon uSD card is detected.
- Page 14 3. Turn the security screw approximately 2 turns maximum until it contacts the Base and Camera Sensor. This prevents the camera from being removed. No torque is required (refer to warning label). For added security, use the T8 Security Torx wrench to gently tighten the two lock screws.
- Page 15 On-Prem Systems For On-Prem installations (Valerus and 3rd party VMS platforms), the camera can be accessed using Vicon’s PRONTO Device Manager and Discovery Tool, which can be found on Vicon’s website. • When you start up the PRONTO Device Manager, the tool’s auto-discovery function generates a list of the discovered cameras on the network in a resource list.
- Page 16 Anavio Cloud-Based System You must have an Anavio account to use the cloud-based VMS system. NOTE: Vicon Edge Recording card required. The NEXT camera must be set at default prior to connecting to Anavio. 1. Once your Anavio account is setup, log in and go to the Devices section on the left pane to add the new camera, then click Add Device.
- Page 17 To reuse the camera in Anavio or ONVIF mode, a full factory reset is required. NOTE: When switching from ONVIF to Anavio, the Vicon Edge Storage Card is required. Do not configure credentials on the camera's webpage and ensure the device is connected to the Internet...
- Page 18 Vicon Industries Inc. does not warrant that the functions contained 24-Hour Technical Support: in this equipment will meet your requirements or that the operation 800-34-VICON (800-348-4266) will be entirely error free or perform precisely as described in the UK: 44/(0) 1489-566300 documentation.
