Configuring the VND-970IP
When the dome has been connected to the network check that the dome is in the same IP range as being used by ViconNet,
the default IP address for the VND-970IP is 192.168.0.100. if the IP that is to be used is different then this IP address will
need to be changed to the same range. To change this setup, use a PC on the same IP range as the camera and then use
internet explorer, enter the camera address into the address bar and press go. The dome is set to get IP address automatically.
Go to the nucleus machine and log on.

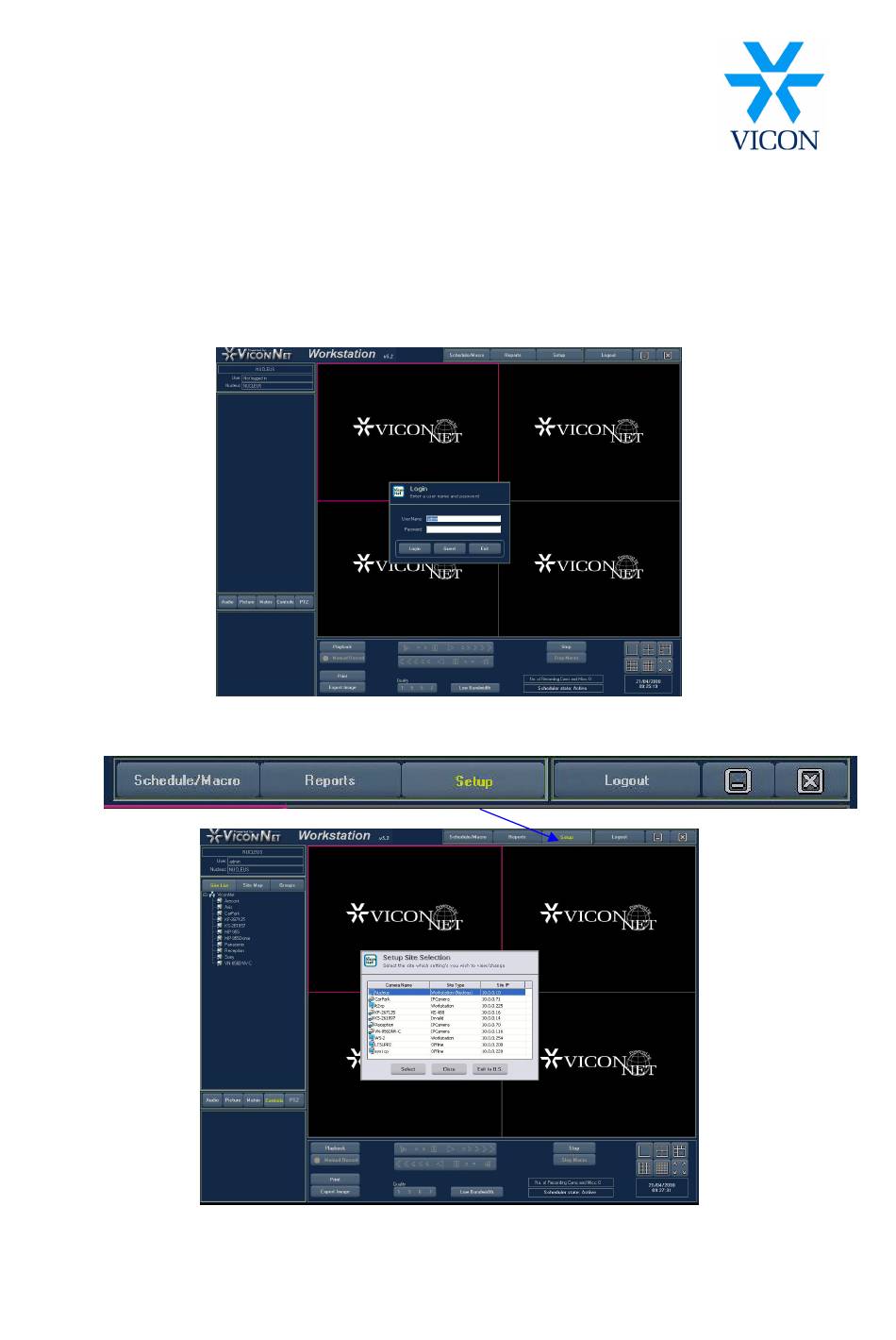

Once logged in click on setup this will then bring up setup site selection
