Renesas RZ/G2L Startup Manual

SMARC EVK of RZ/G2L, RZ/G2LC and RZ/G2UL
Linux Start-up Guide
Introduction
This document provides a guide to prepare RZ/G2L, RZ/G2LC, and RZ/G2UL reference boards to boot up with the
Verified Linux Package.
This guide provides the following information:
• Building procedure
Preparation for use
•
Boot loader and U-Boot
•
How to run this Linux package on the target board
•
• How to create a software development kit (SDK)
Target Reference Board

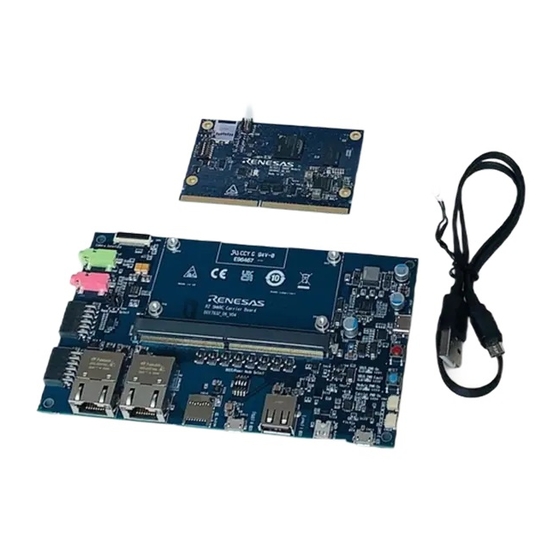

RZ/G2L reference board
RZ/G2L Evaluation Board Kit PMIC version (smarc-rzg2l-pmic) (*1)
•
o RZ/G2L SMARC Module Board (P/N: RTK9744L23C01000BE)
RZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
o
RZ/G2LC reference board
• RZ/G2LC Evaluation Board Kit (smarc-rzg2lc) (*2)
o RZ/G2LC SMARC Module Board (P/N: RTK9744C22C01000BE)
o RZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
RZ/G2UL reference board
RZ/G2UL Evaluation board Kit (smarc-rzg2ul) (*3)
•
RZ/G2UL SMARC Module Board (P/N: RTK9743U11C01000BE)
o
RZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
o
o Parallel to HDMI Conversion board (This board is included with RTK9743U11C01000BE and is not
sold separately, so a part number does not exist.)
Please refer to Appendix 2.2 and 2.3 for how to distinguish and replace each board.
� � � � �
Please refer to Appendix 2.4 for how to connect the Parallel to HDMI Conversion board for RZ/G2UL Evaluation
� � � � �
board Kit (smarc-rzg2ul).
(*1) "RZ/G2L Evaluation Board Kit PMIC" includes the RZ/G2L SMARC Module Board and the RZ SMARC
Series Carrier Board.
(*2) "RZ/G2LC Evaluation Board Kit" includes the RZ/G2LC SMARC Module Board and the RZ SMARC Series
Carrier Board.
(*3) "RZ/G2UL Evaluation board Kit" includes the RZ/G2UL SMARC Module Board and the RZ SMARC Series
Carrier Board.
The "Evaluation board Kit for RZ/G2UL MPU" will be called "RZ/G2UL Evaluation Kit" in the next section.
Target Software
•
RZ/G Verified Linux Package version 3.0.6 or later. (hereinafter referred to as "VLP/G")
R01US0616EJ0103 Rev.1.03
May 31, 2024
R01US0616EJ0103
Rev.1.03
