RZ/N1D, RZ/N1S, RZ/N1L Group
CONNECT IT! ETHERNET RZ/N1x GettingStarted
Introduction
RZ/N1 is a family of scalable ARM® based industrial Ethernet switches. Due to the integrated performant
ARM® Cortex®-A7 CPU, they are ideal choice for building products such as Programmable Logic Controllers
(PLC), complex remote-IO slaves, industrial switches, gateways or operator terminals.
This guide provides an overview of the Solution Kit package and provides reference to the important
documentation for assisting you in a quick evaluation of the RZ/N1x device. It represents a short reference for
the RZ/N1x Solution Kits and provides an overview of the kit packages and a description of their structure.
This guide is an addition to the extensive RZ/N1 device documentation. RZ/N1 board and RZ/N1 software
documentation you may find in the SW packages and/or in the document specific area of the RZ/N1 Solution
Kit release. The Solution Kit boards can solely be used for evaluation purposes. It is not allowed to use those
boards for commercial purposes.
•
Chapter 0 gives an insight into the RZ/N1 Solution Kit content and provides a reference to important
documentation.
•
Chapter 2 describes how to use the Solution Kit Installer to install (copy) the dedicated documents
and SW structures on your PC.
•
Chapter 3 gives a short overview about tools you might need for your HW and SW development.
For jumping directly to the quick start guide for bringing up your board for the first time, please open the
respective quick start guide document from the solution kit's root directory:
CONNECT IT! ETHERNET RZ/N1D : r01qs0022edxxxx-rzn1d-connectit.pdf
CONNECT IT! ETHERNET RZ/N1S : r01qs0021edxxxx-rzn1s-connectit.pdf
CONNECT IT! ETHERNET RZ/N1L : r01qs0020edxxxx-rzn1l-connectit.pdf

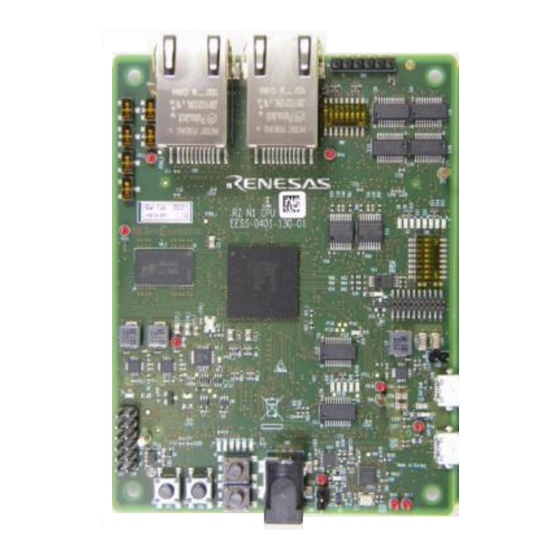

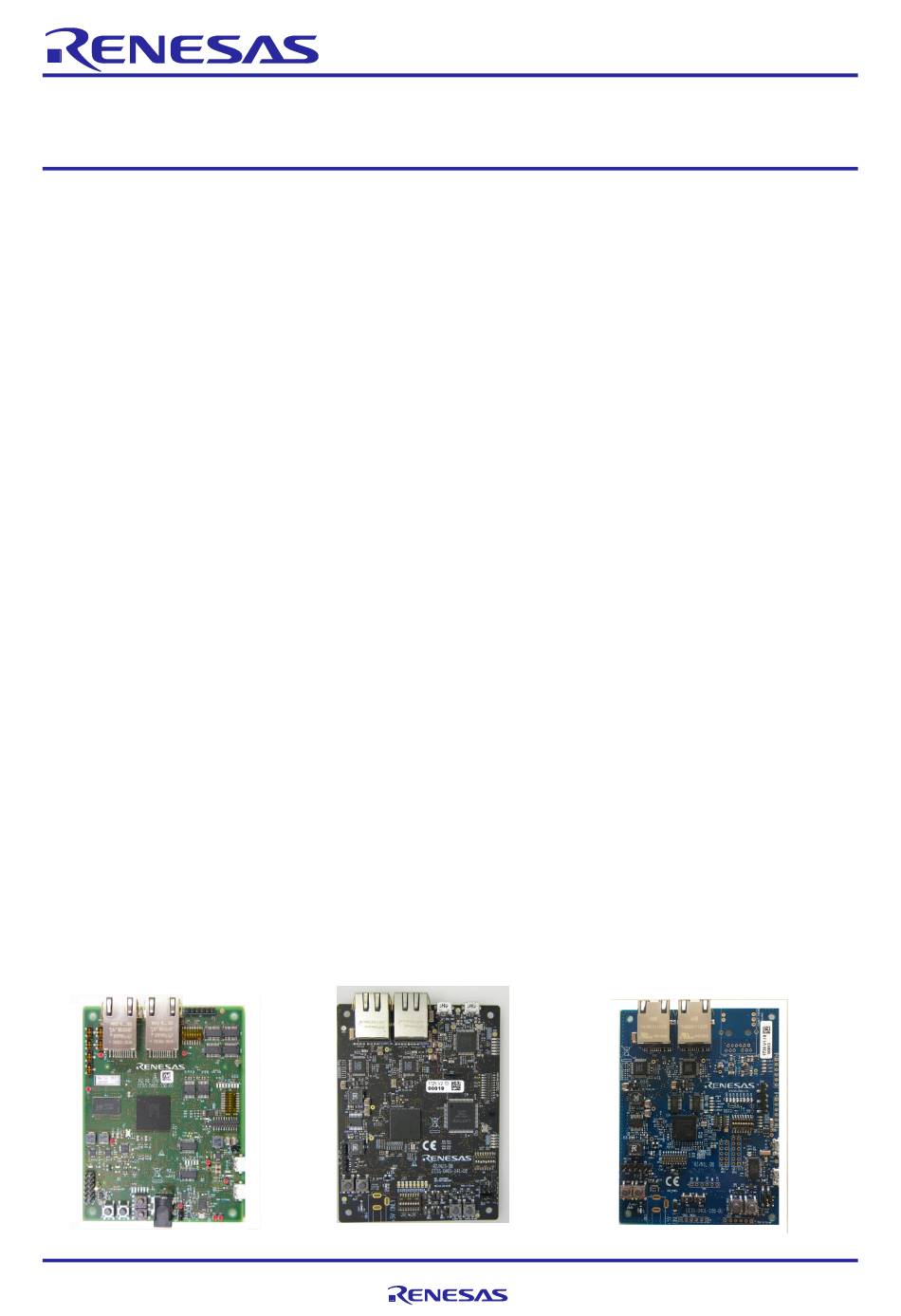

RZ/N1D-EB
R01QS0019ED0190 Rev.1.90
Jan.31.2020
RZ/N1S-EB
Quick Start Guide
RZ/N1L-EB
Page 1 of 16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renesas RZ/N1D
Summary of Contents for Renesas RZ/N1D
- Page 1 For jumping directly to the quick start guide for bringing up your board for the first time, please open the respective quick start guide document from the solution kit’s root directory: CONNECT IT! ETHERNET RZ/N1D : r01qs0022edxxxx-rzn1d-connectit.pdf CONNECT IT! ETHERNET RZ/N1S : r01qs0021edxxxx-rzn1s-connectit.pdf CONNECT IT! ETHERNET RZ/N1L : r01qs0020edxxxx-rzn1l-connectit.pdf...
-
Page 2: List Of Abbreviations And Acronyms
RZ/N1D, RZ/N1S, RZ/N1L Group CONNECT IT! ETHERNET RZ/N1x GettingStarted List of Abbreviations and Acronyms Abbreviation Full Form Short name for Arm Cortex-A7 CPU Short name for Arm Cortex-M3 CPU CTC / MCTC Core-to-Core / Micro- Core-to-Core communication scheme between A7 and M3 Application Programming Interface Programming strategy not using an operation system (OS) –... - Page 3 – a communication block based on the proven multi-protocol R-IN Engine, as well as an application block and a variety of peripherals. In contrast to the RZ/N1D, RZ/N1S includes only a single ARM® Cortex®-A7 CPU without an external DDR interface, but with 6MB internal SRAM. Please refer to the RZ/N1S device documentation for further differences.
- Page 4 The CONNECT IT! ETHERNET RZ/N1L Solution Kit is based on the RZ/N1L, a 3-port, industrial Ethernet communication SoC in a 196BGA package. In contrast to the RZ/N1D and RZ/N1S the device hast just the communication block based on the proven multi-protocol R-IN Engine with 6MB internal SRAM (no ARM®...
- Page 5 CPU boards you can use the optional expansion board CONNECT IT! RZ/N1 Expansion Board (RZ/N1-EB). Together with one of the CPU boards above this gives access to the full set of RZ/N1D or RZ/N1S interfaces. The expansion board has no stand-alone capability and requires an RZ/N1D or RZ/N1S CPU board. On the other side the RZ/N1L-DB board cannot be used together with the RZ/N1-EB board, as all interfaces are already included on the CPU board.
- Page 6 RZ/N1D, RZ/N1S, RZ/N1L Group CONNECT IT! ETHERNET RZ/N1x GettingStarted of several layers of software for accessing the underlying R-IN platform resources, but also to access the protocol stacks via dedicated APIs. Out of the box the middleware provides support for: •...
- Page 7 The RZ/N1 Linux Board Support Package comes distributed for RZ/N1D demo board and runs on the Cortex A7. U-Boot BSP is distributed for both RZ/N1S and RZ/N1D. It includes the drivers for all the required peripherals including clock controller, PinmMux, UART, DDR, QSPI, NAND, Ethernet MAC, 5port Switch, RGMII/GMII Converters, SDHC, I2C and USB Host/Function.
- Page 8 The baremetal driver for RZ/N1L are meant to demonstrate how to interface to the various interface IPs of the Renesas RZ/N1 devices in an OS-less environment. It consists of a sample OS-less application and a set of Firmware Integration Technology (FIT) modules for the following and other features: •...
- Page 9 YCONNECT-IT-RZN_V1.x\Documents\RZN.Software\BaremetalDrivers for further release details. 1.8 RZ/N1 Tools Inside of the Solution Kit software package, Renesas is providing some tools which are useful for typical programmers and designers to work with our platform. The directory in the release is …\YCONNECT-IT- RZN_V1.x\Tools.
- Page 10 Cortex-A7 application side. Renesas provides the exact version used to develop the software on the Cortex-M3 side assuring that it can be further flawlessly developed or adapted. The used IDE installation executable for IAR EWARM can be found in the RZ/N Solution Kit under YCONNECT-IT-RZN_V1.x\Tools\IAREWARM.
- Page 11 RZ/N1D, RZ/N1S, RZ/N1L Group CONNECT IT! ETHERNET RZ/N1x GettingStarted FTDI PC Serial USB Drivers To use the serial USB interfaces of the RZ/N1x Solution Kits you might need to install the FTDI serial USB drivers on your Windows PC. Some Windows PCs are installing it automatically however. The drivers are located under …\YCONNECT-IT-RZN_V1.x\Tools\FTDI.
-
Page 12: Installation Setup
QSPI with the software and running it. U-Boot is available for RZ/N1D and RZ/N1S, Linux is available only for RZ/N1D and ThreadX is available for RZ/N1D and RZ/N1S. 2.1 RZ/N1x Document and Software Installation The installer assists you in copying only the relevant items to your PC. - Page 13 RZ/N1D, RZ/N1S, RZ/N1L Group CONNECT IT! ETHERNET RZ/N1x GettingStarted For the installation with the button Install (a copy process) you can select certain sets of elements available in the release. For this you have to make the following steps: Step 1: Make your RZ/N1 board(s) selection. Depending upon the boards the RZ/N1x Installer selects a different set of documents and software packages.
- Page 14 RZ/N1D, RZ/N1S, RZ/N1L Group CONNECT IT! ETHERNET RZ/N1x GettingStarted 3. Miscellaneous Tools for Hardware and Software Development Several board and SW setup and develop steps might require certain tool depending on your PC. These tools are not included in this release. The following list gives an overview about these tools with a short description and related links to download the tool and for further information: 3.1 dfu-util...
- Page 15 RZ/N1D, RZ/N1S, RZ/N1L Group CONNECT IT! ETHERNET RZ/N1x GettingStarted 3.4 Lattice Diamond The Diamond Toolchain from Lattice is used to design and download CPLD Data. The used MachXO2 device is supported from the free of charge version. The used device configuration data is stored in the board document directories.
-
Page 16: Revision History
Addition of the RZ/N1L Solution Kit related descriptions Addition of Baremetal Drivers 06.Feb.2018 Several updates improvements and corrections Update due to quick start guides creation for RZ/N1D/S/L 01.Mar.2018 Update to correspond to Solution Kit v1.3.1 31.Jul.2018 Update to correspond to Solution Kit v1.4 12.Nov.2018... -
Page 17: General Precautions In The Handling Of Microprocessing Unit And Microcontroller Unit Products
Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products. -
Page 18: Corporate Headquarters
Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
