Pro-Form ZX2 User Manual page 6

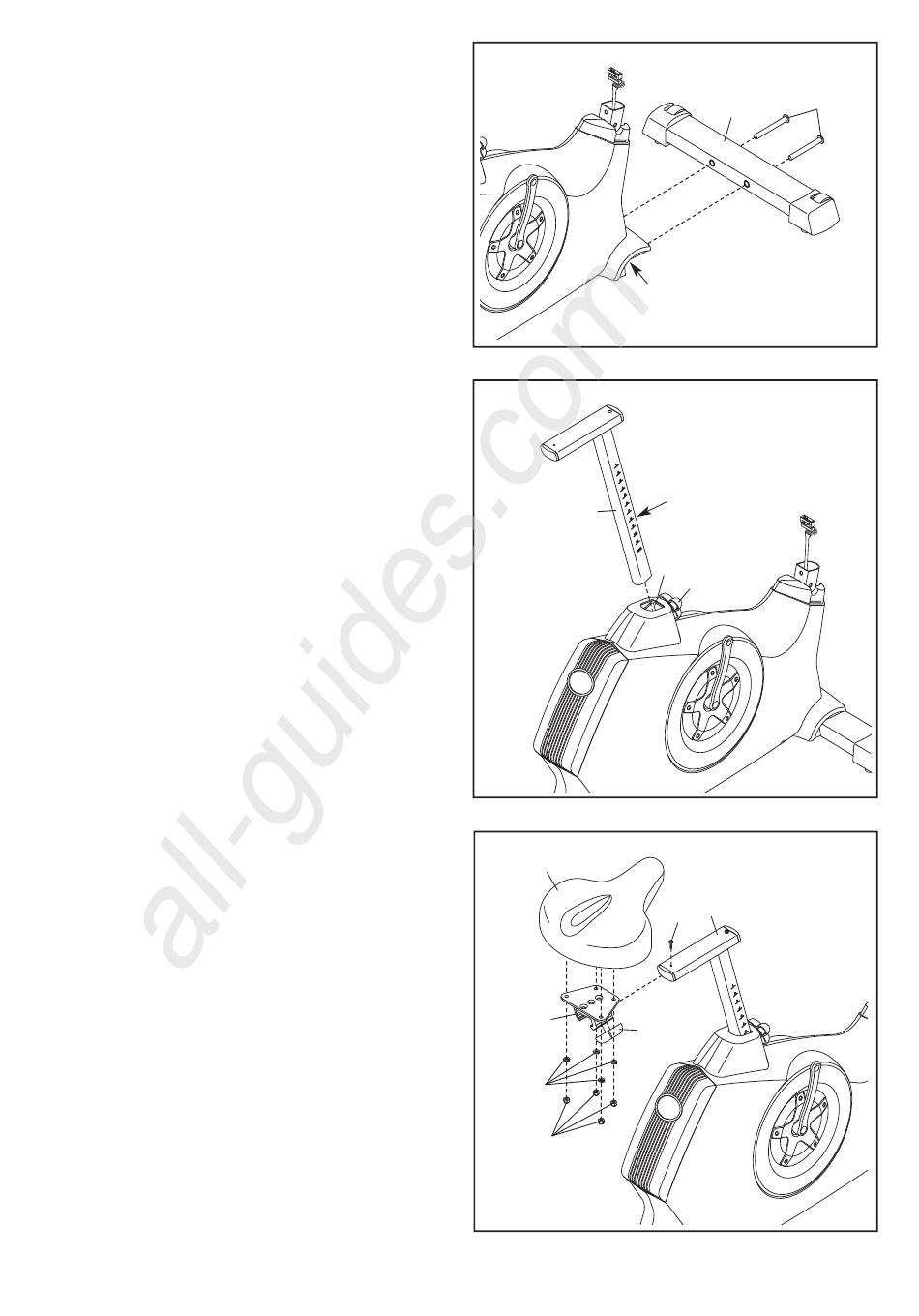

2. Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 95mm Patch Screws (76).
3. Loosen the Adjustment Knob (27) in the Frame
(1) a few turns.
Orient the Seat Post (6) as shown. Then, pull
the Adjustment Knob (27) outward and insert
the Seat Post into the Frame (1). Slide the Seat
Post upward or downward to the desired posi-
tion, and release the Adjustment Knob.
Move the Seat Post (6) upward or downward
slightly to make sure that the Adjustment
Knob (27) is engaged in one of the adjust-
ment holes in the Seat Post. Then, tighten the
Adjustment Knob.
4. Orient the Seat (23) and the Seat Carriage (24)
as shown.
Attach the Seat (23) to the Seat Carriage (24)
with four M8 Locknuts (72) and four M8 Split
Washers (75).
Next, slide the Seat Carriage (24) onto the Seat
Post (6). Slide the Seat Carriage all the way for-
ward, and tighten the Seat Adjustment Knob
(26).
Then, tighten an M4 x 5mm Bright Screw (91)
into the rear of the Seat Post (6).
All manuals and user guides at all-guides.com
6
2
1
3
Adjustment
6
4
23
24
26
75
72
76
2
Holes
1
27
91 6
