ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver
wrench , and a rubber mallet

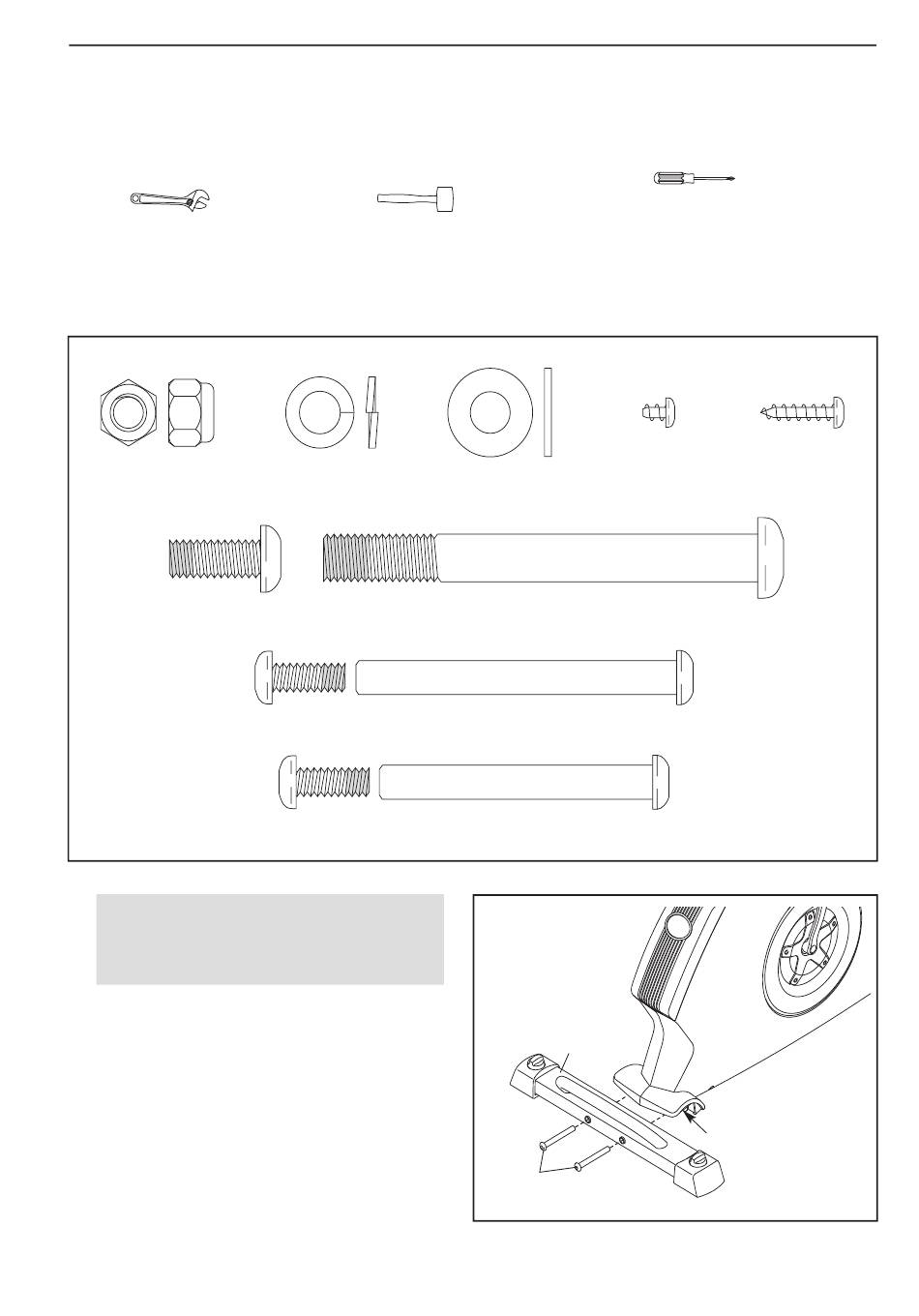

As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit,
check to see if it has been preassembled.
M8 Locknut
(72)–4
M8 x 20mm
Patch Screw (74)–4
1.
To make assembly easier, read the
information at the top of this page before
you begin.
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 95mm Patch Screws (76).
All manuals and user guides at all-guides.com
M8 Split
Washer (75)–8
M6 x 70mm Bolt Set (50)–1
M6 x 60mm Bolt Set (51)–1
.
M4 x 5mm
Bright Screw
M8 Washer
(43)–2
M10 x 95mm Patch
Screw (76)–4
1
3
76
5
, an adjustable
M4 x 16mm
Screw (90)–8
(91)–1
1
