Vertiv Cybex™ SCMV Secure Desktop MultiViewer Switch Installer/User Guide

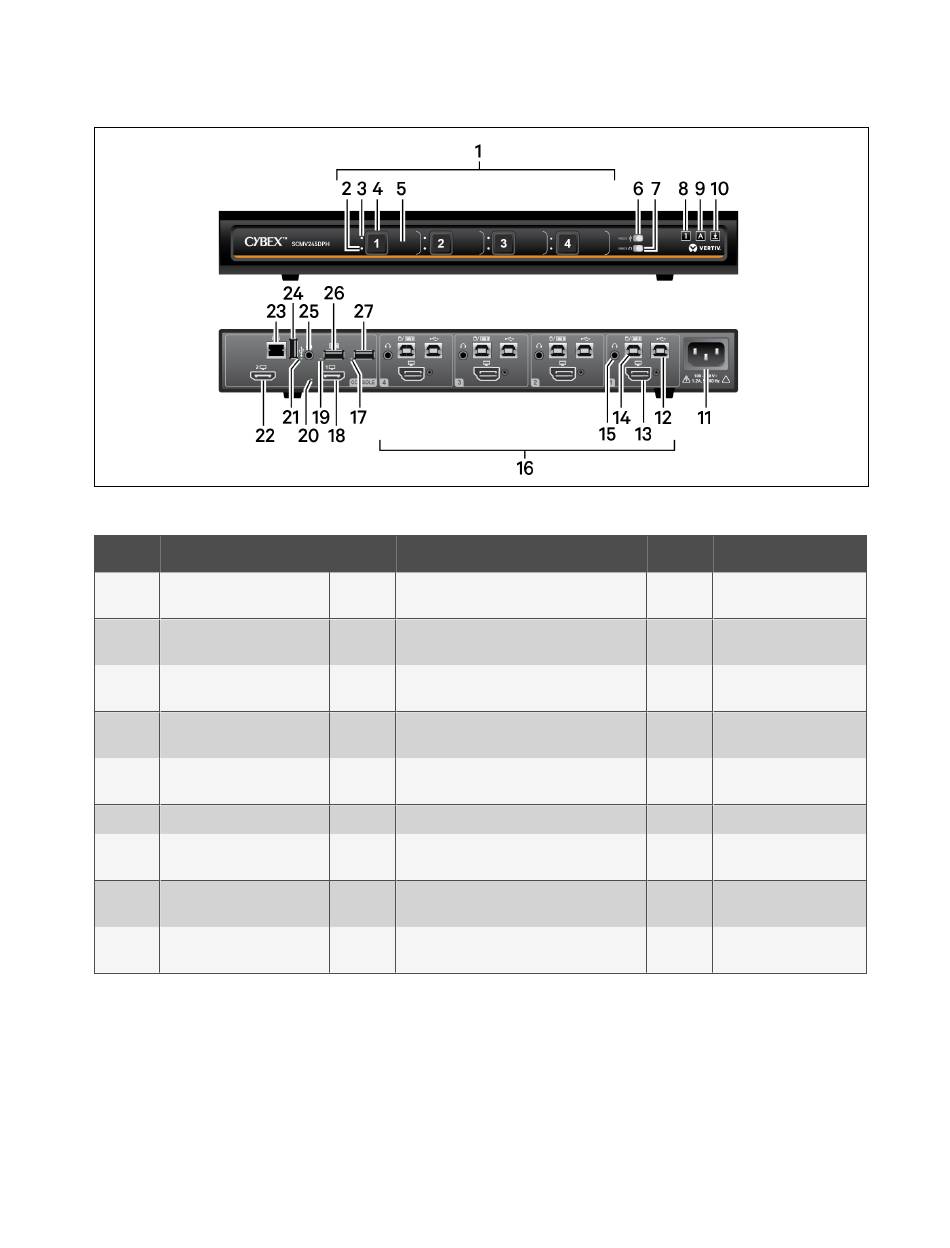

Figure 2.1 Cybex SCMV245DPH Secure MultiViewer Switch
Table 2.1 Cybex SCMV245DPH Secure MultiViewer Switch
Item Description
Computer channel 1-4
1
selectors
2 Audio freeze indicator
3 DPP freeze indicator
4 Channel selector
5 Channel label
6 DPP freeze toggle
7 Audio freeze toggle
Num lock indicator; illuminates
8
when activated
Caps lock indicator; illuminates
9
when activated
4
Item Description
10 Scroll lock indicator; illuminates when activated
11 Power input
12 DPP USB Type-B connector for computer 1
13 DP/HDMI video input for computer 1
Keyboard and mouse USB Type-B connector for
14
computer 1
15 Speaker input for computer 1
Computer connections; the switch shown
16
supports up to four computers
17 Console USB mouse status LED indicator
18 Primary HDMI video output
Item Description
Console USB keyboard
19
status LED indicator
Console video diagnostic
20
LED indicator
Console DPP diagnostic
21
LED indicator
Secondary HDMI video
22
output
23 RCU port; used with AFP
24 DPP console input
25 Console speaker output
Console USB console
26
keyboard input
Console USB console
27
mouse input
