3 On-Screen Display Operation
The MultiViewer switch is managed by an intuitive On-Screen Display (OSD) menu system.
To activate the OSD:
Press L-CTRL | R-CTRL | o
The OSD of the SCMV2160DPH switch is shown for the following description of OSD functions. On each OSD screen, click the
X in the upper right corner to abandon changes and revert to previous settings. Click Save and Exit in the lower right corner to
save and apply changes.
3.1 Video Settings

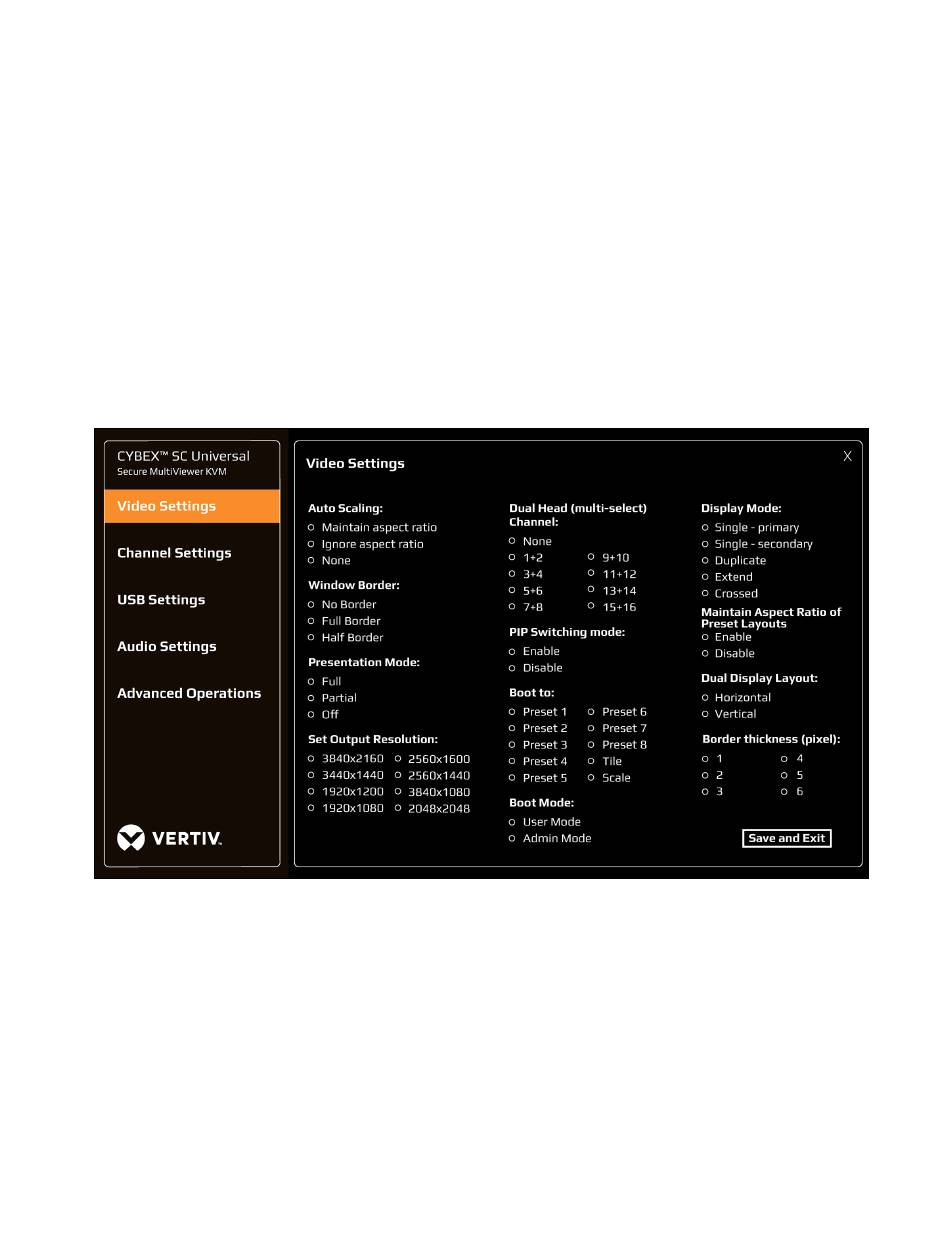

Figure 3.1 Video Settings Screen
3.1.1 Auto Scaling
• Maintain aspect Ratio –Maintains the aspect ratio for the console display based on the vertical axis.
• Ignore aspect ratio – If a computer can be resized to any dimension. Computer image may be distorted.
• None (default) – Auto scaling is disabled. Making the window smaller crops the image; making it larger results in
a letterbox effect.
3.1.2 Windows Border
• No Border – No border on computer windows.
• Full Border (default) – Each window will have a border on all four sides.
