Vertiv Cybex™ SCMV Secure Desktop MultiViewer Switch Installer/User Guide

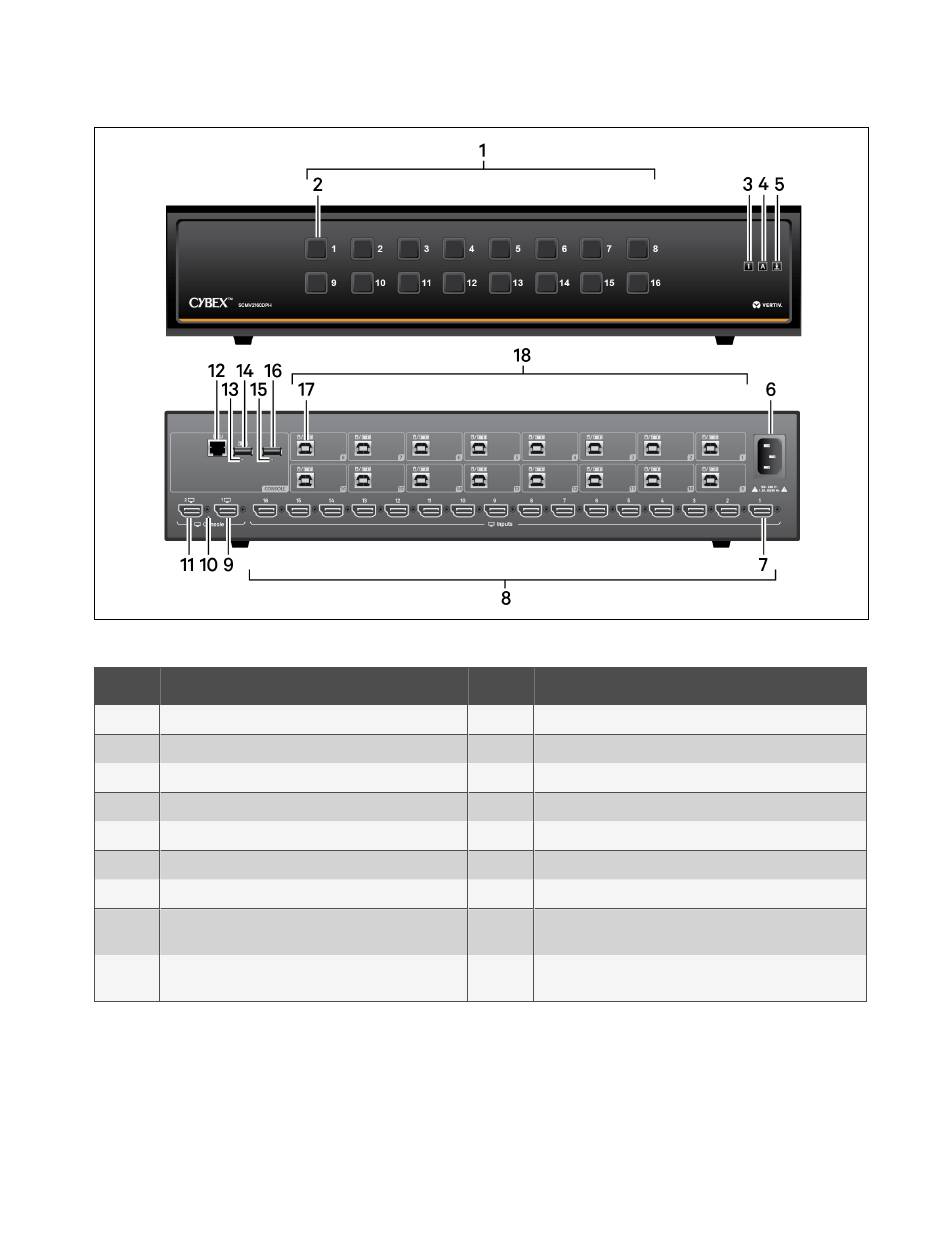

Figure 2.3 Cybex SCMV2160DPH Secure MultiViewer Switch
Table 2.3 Cybex SCMV2160DPH Secure MultiViewer Switch Descriptons
Item Description
1 Computer channel 1-16 selectors
2 Channel selector
3 Num lock indicator; illuminates when activated
4 Caps lock indicator; illuminates when activated
5 Scroll lock indicator; illuminates when activated
6 Power input
7 DP/HDMI video input for computer 1
Computer DP/HDMI video connections for up to sixteen
8
computers
9 Primary DP/HDMI video output
2.2 Control Options
LED indicators on the front and back panels of the switch allow you to view the status of the switch and its connected
computers, displays and peripherals.
6
item Description
10 Console video diagnostic LED indicator
11 Secondary DP/HDMI video output
12 RCU port; used with AFP
13 Console USB keyboard status LED indicator
14 USB console keyboard input
15 Console USB mouse status LED indicator
16 USB console mouse input
17 Keyboard and mouse USB Type-B connector for computer 1
Computer USB keyboard/mouse connections for up to sixteen
18
computers
2 Basic Operation
