- Page 1 ComPar 1 User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra can not be held responsible for any damage or injury caused by improper use.
- Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV...
-
Page 5: Box Contents
Box contents Box contents 1x ComPar 1 fixture 1x bracket kit with included mounting hardware 1x power cable IEC C13 to Schuko 1x power cable IEC C13 to UK plug Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 6: Device Overview
Device overview 1. Beam output 2. Double bracket 3. Bracket tightening knob 4. Menu display with buttons 5. DMX input (3p XLR) 6. DMX output (3p XLR) 7. IEC output 8. IEC input with fuse 9. Safety eye Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 21-11-2013 RV Revision date + author initials: 25-11-2014 RV... -
Page 7: Setting Up The Unit
Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001. - Page 8 XLR – XLR cables (not included). DMX: The ComPar 1 can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
- Page 9 12CH mode: DMX channel Function&Value Channel 1 Brightness 0-15 black out 16-255 from dark to bright Channel 2 Strobe 0-15 black out 16-255 strobe speed Channel 3 Red dimmer 0 black out 1-255 red dimmer Channel 4 Green dimmer 0 black out 1-255 green dimmer Channel 5 Blue dimmer...
- Page 10 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 11 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.
-
Page 12: Technical Specifications

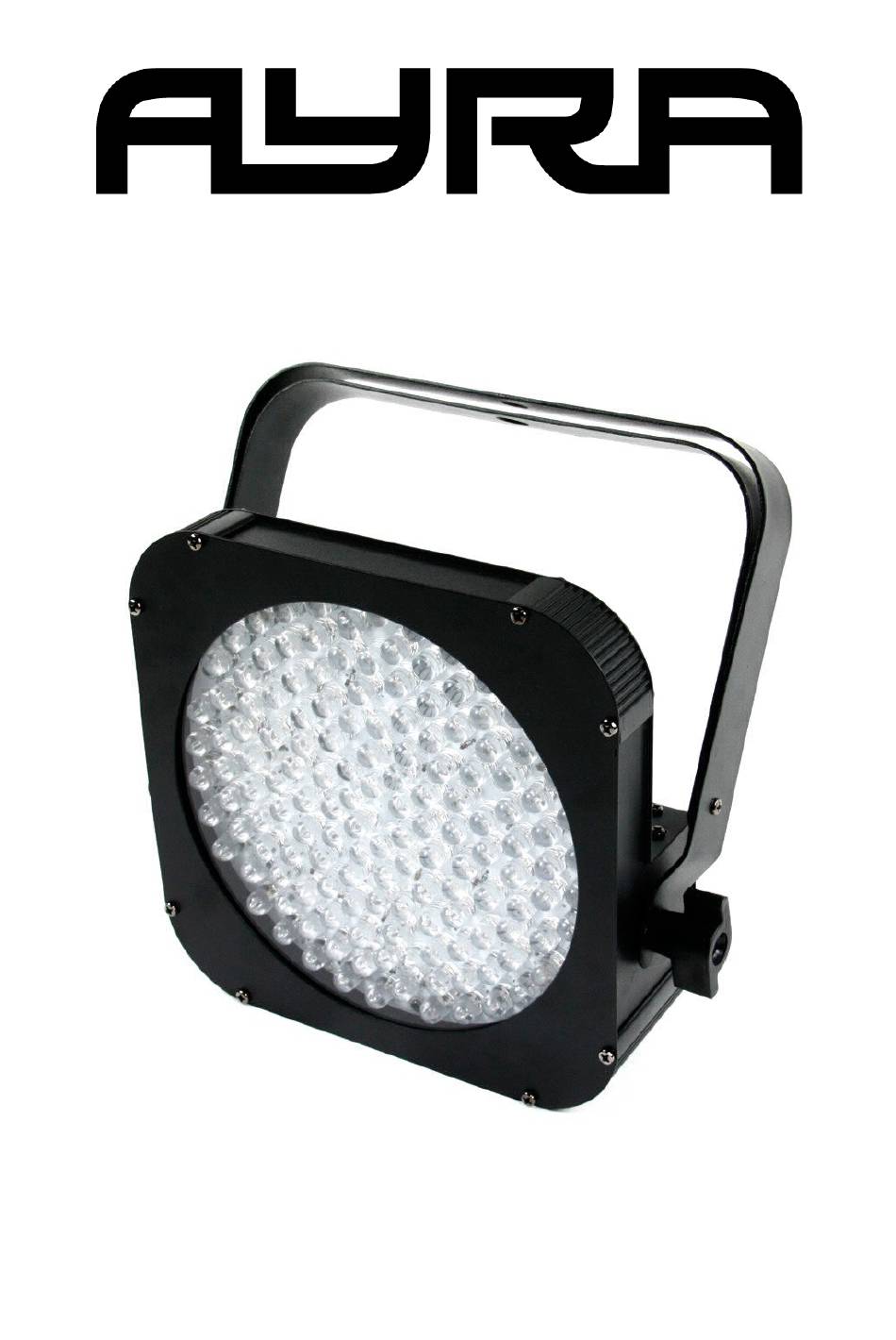

Technical specifications Party effect light and colourful uplighting LED spotlight Slimline design, easy transport and storage Light source: 144 LEDs (30 Red, 30 Green, 30 Blue, 30 Amber, 24 White) Colourful and dynamic effects Extensive colour palette, RGB colour mixing + white (cool white) + amber (warm white) Create amazing colour combinations and true pastel/warm colours High power light source for bright and intense projection Built-in colour macro’s, automatic chase/fade shows and extensive control via DMX...
