Summary of Contents for Belden HIRSCHMANN EAGLE40-6M

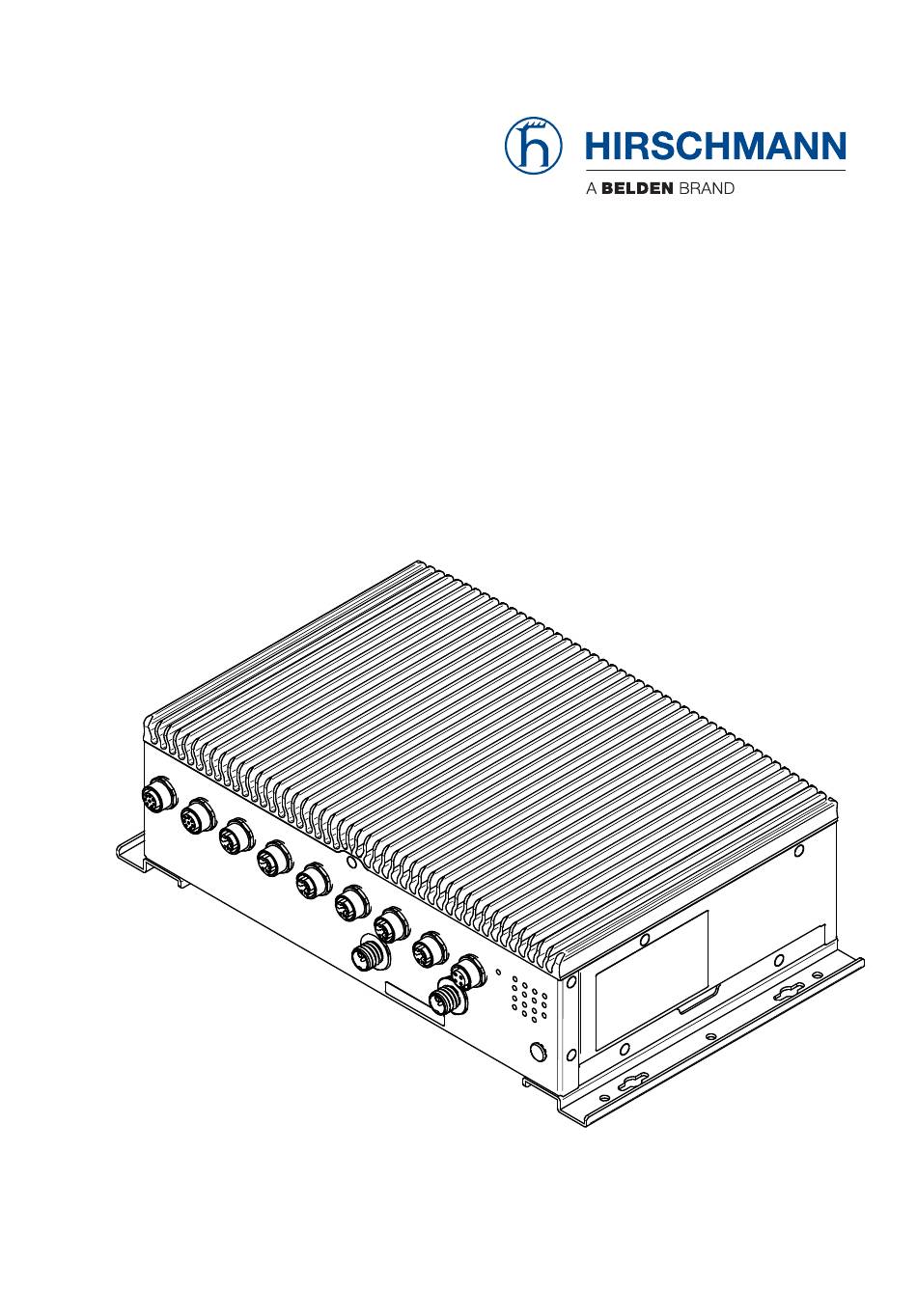

- Page 1 User Manual Installation Industrial Ethernet Security Router EAGLE40-6M Technical Support Installation EAGLE40-6M https://hirschmann-support.belden.com Release 01 - 04/2025...
- Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...
-
Page 3: About This Manual
About this manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. Documentation mentioned in the “Installation” user manual that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com... -
Page 4: Important Information
Important information Read these instructions carefully, and familiarize yourself with the device before trying to install, operate, or maintain it. The following notes may appear throughout this documentation or on the device. These notes warn of potential hazards or call attention to information that clarifies or simplifies a procedure. Installation EAGLE40-6M Release 01 - 04/2025... -
Page 5: Warning Symbols
Warning symbols This is a general warning symbol. This symbol alerts you to potential personal injury hazards. Observe all safety notes that follow this symbol to avoid possible injury or death. If this symbol is displayed in addition to a safety instruction of the type “Danger” or “Warning”, it means that there is a danger of electric shock and failure to observe the instructions will inevitably result in in... - Page 6 NOTICE NOTICE provides information about procedures that do not involve the risk of injury. Installation EAGLE40-6M Release 01 - 04/2025...
-
Page 7: Symboles D'avertissement
Symboles d'avertissement Il s'agit d'un symbole d'avertissement général. Ce symbole vous avertit des risques potentiels de bles sures. Respectez les consignes accompagnant ce symbole afin d'éviter toute blessure ou accident mor tel. La présence de ce symbole sur une étiquette "Danger" ou "Avertissement" signale un risque d’électrocu tion qui provoquera des blessures physiques en cas de non-respect des consignes de sécurité. - Page 8 AVIS AVIS indique des pratiques n’entraînant pas de risques corporels. Installation EAGLE40-6M Release 01 - 04/2025...
-
Page 9: Table Of Contents
Contents A bout this manual....................3 I mportant information................... 4 W arning symbols....................5 S ymboles d'avertissement..................7 1. S afety instructions..................12 1.1. Q ualification requirements for personnel..........13 1.2. I ntended use..................13 1.3. - Page 10 3.4. E thernet ports..................27 3.4.1. T wisted pair port 10/100/1000/2500 Mbit/s........27 3.5. D isplay elements..................29 3.5.1. D evice status................29 3.5.2. P ort status..................29 3.6. I nput/output interfaces................. 30 3.6.1. D igital input................30 4.
- Page 11 9.4. D imension drawings................47 9.4.1. D imension drawings..............47 9.5. C limatic conditions during operation............48 9.6. C limatic conditions during storage............48 9.7. I mmunity....................48 9.8. E lectromagnetic compatibility (EMC)........... 49 9.8.1. E MC interference emission............49 9.8.2.
-
Page 12: Safety Instructions
1 - Safety instructions 1. Safety instructions WARNING UNCONTROLLED MACHINE ACTIONS Failure to follow these instructions can result in death, serious injury, or equipment damage. To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. Before you start any machine which is controlled via data transmission, be sure to complete the configuration of all data transmission devices. -
Page 13: Qualification Requirements For Personnel
1.1 - Qualification requirements 1 - Safety instructions for personnel 1.1. Qualification requirements for personnel Only allow qualified personnel to work on the device. Qualified personnel have the following characteristics: • Qualified personnel are properly trained. Training as well as practical knowledge and experience make up their qualifications. -
Page 14: Installation Site Requirements
1.3 - Installation site 1 - Safety instructions requirements 1.3. Installation site requirements WARNING FIRE HAZARD Failure to follow these instructions can result in death, serious injury, or equipment damage. If you connect the device to a power supply that does NOT meet the requirements for Limited Power Source, NEC Class 2 or PS2 according to IEC/EN 62368-1 and is NOT limited to 100 W output power, the device must be... -
Page 15: Strain Relief
1 - Safety instructions 1.5 - Strain relief • Never insert pointed objects (narrow screwdrivers, wires, etc.) into the device or into the connection terminals for electric conductors. Do not touch the connection terminals. • Keep the ventilation slits free to ensure good air circulation. •... -
Page 16: Shielding Ground
1 - Safety instructions 1.6 - Electrical connections 1.6.2. Shielding ground The overall shield of connectable twisted pair cables is connected to the ground connection of the device casing as a conductor. • Beware of possible short circuits when connecting a cable section with conductive shielding braiding. -
Page 17: General Requirements For Connecting The Supply Voltage
1 - Safety instructions 1.6 - Electrical connections 1.6.4. General requirements for connecting the supply voltage WARNING FIRE HAZARD Failure to follow these instructions can result in death, serious injury, or equipment damage. The power is supplied by a secondary circuit which is separate from the MAINS CIRCUITS. - Page 18 1 - Safety instructions 1.6 - Electrical connections AVERTISSEMENT RISQUE D'INCENDIE Le non-respect de ces instructions peut entraîner la mort, des blessures graves ou des dommages matériels. L'alimentation est fournie par un circuit secondaire séparé des CIRCUITS PRINCIPAUX. Elle est assurée par un transformateur UL R/C, dans lequel les enroulements primaires sont séparés des enroulements secondaires par I'SOLATION RENFORCÉE ou DOUBLE.
- Page 19 1 - Safety instructions 1.6 - Electrical connections • The supply voltage corresponds to the voltage specified on the type plate of the device. • The power supply cable is suitable for the required voltage, current, and physical load. • The cross-section of the ground conductor is the same size as or larger than the cross-section of the power supply cables.
-
Page 20: Specific Requirements For Connecting The Supply Voltage
1 - Safety instructions 1.7 - Recycling note 1.6.5. Specific requirements for connecting the supply voltage Before connecting the supply voltage, ALWAYS verify that the requirements listed are complied with. The following requirements apply without restrictions: 1.7. Recycling note The symbol of a crossed-out wheeled bin shown on the device indicates that the device MUST NOT be disposed of with household waste at the end of its service life. -
Page 21: Approvals
2 - Approvals 2. Approvals 2.1. CE marking The labeled devices comply with the regulations contained in the following European directive(s): • 2011/65/EU and 2015/863/EU (RoHS) Directive of the European Parliament and of the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 22: Fcc Note
2.2. FCC note Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information EAGLE40-6M U.S. Contact Information Belden Inc. – St. Louis 1 N Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with Part 15 of the FCC Rules. Operation is subject... -
Page 23: Description
3 - Description 3. Description The Hirschmann network components help you ensure continuous communication across all levels of the company. The device is designed for the special requirements of industrial automation. The device meets the relevant industry standards, provides very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. -
Page 24: Device Name And Product Code
The characteristic values stand for specific product properties. You have numerous options of combining the device characteristics. You can determine the possible combinations using the configurator which is available in the Belden Online Catalog, on the web page of https://catalog.belden.com the device. -
Page 25: Device Views
3 - Description 3.2 - Device views 3.2. Device views 3.2.1. Front view Figure 1. Front view of device Eagle40-6M Table 2. Description of device elements: Front view of device Eagle40-6M 8-pin, “A”-coded M12 socket for the digital input 5-pin, “A”-coded M12 socket USB interface (5 V, 0.0535 A) 6 ×... -
Page 26: Iew From Below
3 - Description 3.3 - Power supply 3.2.2. View from below Figure 2. Bottom view of device Eagle40-6M Table 3. Description of device elements: Bottom view of device Eagle40-6M Wall mounting bracket Wall mounting bracket 3.3. Power supply The following options for power supply are available: 3.3.1. -
Page 27: Ethernet Ports
3 - Description 3.4 - Ethernet ports You will find information on connecting the supply voltage here: Connecting the supply voltage on page 38 3.4. Ethernet ports You can connect end devices and other segments to the device ports using twisted pair cables. - Page 28 3 - Description 3.4 - Ethernet ports Table 4. Pin assignment 8-pin M12 socket, “X”-coded 10/100 Mbit/s 1000/2500 Mbit/s BI_DB+ BI_DB- BI_DA+ BI_DA- – BI_DC+ – BI_DC- – BI_DD- – BI_DD+ Installation EAGLE40-6M Release 01 - 04/2025...
-
Page 29: Display Elements
3 - Description 3.5 - Display elements 3.5. Display elements 3.5.1. Device status This LED provides information about conditions which affect the operation of the whole device. Figure 3. LED display elements for device status Table 5. LED: Color, activity and meaning Activity/Sta... -
Page 30: Input/Output Interfaces
3 - Description 3.6 - Input/output interfaces Figure 4. Port status: Location of the port display elements on the device Display Color Activity Meaning 1 … 6 Link status None No link is established (LED top) Yellow Lights up Link has been established Flashing The connection is active Speed... - Page 31 3 - Description 3.6 - Input/output interfaces Table 6. Pin assignment (continued) Digital input Function 8-pin, “A”-coded M12 socket (male) DO ground DO ground The digital input allows you to capture and forward signals from digital sensors. In the configuration, you specify how the device uses the digital input.
-
Page 32: Installation
4 - Installation 4. Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. To install the device, perform the following work steps: • Checking the package contents on page 32 •... -
Page 33: Mounting The Device
4 - Installation 4.2 - Mounting the device 4.2. Mounting the device CAUTION BURN HAZARD Failure to follow these instructions can result in injury or equipment damage. The surfaces of the device casing may become hot. Avoid touching the device while it is operating. If ambient temperatures are ≥45 °C (≥113 °F), exclusively install the device in “restricted access locations”... -
Page 34: Mounting On A Wall
4 - Installation 4.2 - Mounting the device 4.2.1. Mounting on a wall WARNING FIRE HAZARD Failure to follow these instructions can result in death, serious injury, or equipment damage. Install the device in a fire enclosure according to IEC/ EN 62368-1 if you install the device vertically. - Page 35 4 - Installation 4.2 - Mounting the device Figure 6. Mounting on a wall: Center marking holes on the wall. Center marks Ground 4. Drill 4 holes at the center marks about 6 mm in diameter and 19.5 mm in depth. This is approximately the same size as the wall anchors of the device.
- Page 36 4 - Installation 4.2 - Mounting the device Figure 8. Mounting on a wall: Wall anchors. Mounting anchor 6. Insert 4 mounting screws into the wall anchors with 2 mm length left remaining. Figure 9. Mounting on a wall: Wall mounting screw. 2 mm 7.
-
Page 37: Grounding The Device
4 - Installation 4.3 - Grounding the device 4.3. Grounding the device CAUTION ELECTRIC SHOCK Failure to follow these instructions can result in minor injury, or equipment damage. Ground the device before connecting any other cables. All device variants have a protective ground connection. Figure 10. -
Page 38: Connecting The Supply Voltage
4.5 - Connecting the supply 4 - Installation voltage Table 8. DI Ports DI Ports Maximum permitted input voltage range -32 V DC ... +32 V DC Nominal input voltage +24 V DC Input voltage, low level, status "0" -0.3 V DC ... +11 V DC Input voltage, high level, status "1" +11 V DC ... +30 V DC Maximum input current at nominal input voltage 30 mA Permitted closed-circuit current for 2-wire sensors 30 mA... -
Page 39: Operating The Device
4 - Installation 4.6 - Operating the device Table 10. 5-pin M12 connector, “K”-coded Graphic Function Plus terminal Do not use Minus terminal Do not use Functional ground connection To connect the supply voltage, perform the following work steps: • Mount the power supply cable to the power supply connector of the device. -
Page 40: Connecting Data Cables
4 - Installation 4.7 - Connecting data cables Note: O bserve the instructions in chapter General requirements for connecting electrical wires on page 16. 4.7. Connecting data cables Note the following general recommendations for data cable connections in environments with high electrical interference levels: •... -
Page 41: Basic Settings
5 - Basic settings 5. Basic settings 2 or more devices configured with the same IP address can cause unpredictable operation of your network. Perform the following work step: Install and maintain a process that assigns a unique IP address to every device in the network. - Page 42 • Log on to the device again with your new password. Note: I f you lost your password, use the System Monitor to reset the password. For further information, see https://hirschmann-support.belden.com/en/kb/ required-password-change-new-procedure-for-first-time-login. Installation EAGLE40-6M Release 01 - 04/2025...
-
Page 43: Monitoring Ambient Conditions
6 - Monitoring ambient conditions 6. Monitoring ambient conditions 6.1. Monitoring the ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. Climatic conditions during operation on page The ambient air temperature is the temperature of the air at a distance of 5 cm (2 in) from the device. -
Page 44: Maintenance And Service
You find information and software downloads on the Hirschmann product pages on the Internet (https://www.belden.com). • Depending on the pollution degree in the operating environment, check regularly that the ventilation slots in the device are not obstructed. -
Page 45: Disassembly
8 - Disassembly 8. Disassembly 8.1. Removing the device WARNING ELECTRIC SHOCK Failure to follow these instructions can result in death, serious injury, or equipment damage. Disconnect the grounding only after disconnecting all other cables. Perform the following work steps: •... -
Page 46: Technical Data
9 - Technical data 9. Technical data 9.1. General data Table 11. General data EAGLE40-6M Dimensions Dimension drawings on page 47 W × H × D Weight 4.2 kg (9.25 lb) Mounting Mounting on a wall on page 34 Pollution degree Degree of protection IP40 (Certified by Antek Certifications Inc.) 9.2. -
Page 47: Power Consumption/Power Output
9.3 - Power consumption/power 9 - Technical data output 9.3. Power consumption/power output Table 13. Power consumption/power output Device name Total power consumption Total Power output Eagle40-6M 25 W 85 Btu (IT)/h 9.4. Dimension drawings 9.4.1. Dimension drawings 0,98 0,98 0,98 0,98 0,98 0,98 0,98 0,98... -
Page 48: Climatic Conditions During Operation
9.5 - Climatic conditions during 9 - Technical data operation 9.5. Climatic conditions during operation Table 14. Climatic conditions during operation Climatic conditions during operation Minimum clearance around the device Top and bottom device side: 10 cm (3.94 in) Left and right device side: 2 cm (0.79 in) Ambient air temperature -40 °C ... -
Page 49: Electromagnetic Compatibility (Emc)
9.8 - Electromagnetic 9 - Technical data compatibility (EMC) Table 16. Immunity: Standard applications EN 61131-2, CE, FCC – applies to all devices (continued) Applicable standard IEC 60068-2-64, test Fc Vibration 13.2 Hz ... 100 Hz with 0.7 g (0.247 oz) IEC 60068-2-27, test Ea Shock – 9.8. -
Page 50: Emc Interference Immunity
9.8 - Electromagnetic 9 - Technical data compatibility (EMC) 9.8.2. EMC interference immunity Table 19. EMC interference immunity: Standard applications EN 61131-2, CE, FCC – applies to all devices Applicable standard Electrostatic discharge EN 61000-4-2 Contact discharge ±4 kV EN 61000-4-2 Air discharge ±8 kV Electromagnetic field EN 61000-4-3... - Page 51 9.8 - Electromagnetic 9 - Technical data compatibility (EMC) Table 20. EMC interference immunity: Railway applications (trackside) According to EN 50121-4 (continued) Applicable standard EN 61000-4-4 Power supply connection ±2 kV EN 61000-4-4 Data line ±2 kV Voltage surges - power supply connection EN 61000-4-5 line/ground ±2 kV EN 61000-4-5 line/line...
-
Page 52: Network Range
9 - Technical data 9.9 - Network range 9.9. Network range Note: T he cable lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and Bandwidth Length Product BLP/ Dispersion). 9.9.1. Twisted pair port 10/100/1000/2500 Mbit/s Table 22. -
Page 53: Scope Of Delivery
10 - Scope of delivery 10. Scope of delivery Table 23. Scope of delivery Amount Article 1 × Device 1 × Safety and general information sheet 1 × Open Source Information 1 × 5-pin “K”-coded M12-Power connector for power supply Installation EAGLE40-6M Release 01 - 04/2025... -
Page 54: Order Numbers
(EAGLE40-066T6EEEE9HSSRAUNXX.X.XX Unified Protection Suite (All enforcers: DNP3 + Modbus + OPC) 11.2. Accessories You find more information on available accessories in the Belden Online Catalog at https://catalog.belden.com. Note: S ome products recommended as accessories do not support the entire temperature range specified for the device and can thus restrict the possible range of usage for the overall system. ... -
Page 55: Underlying Technical Standards
You will find out whether your device has other shipping approvals on the Hirschmann website at: https:// in the product information. www.belden.com Table 25. List of the technical standards EN 45545-2 Railway applications – Fire protection in railway rolling stock – Part 2: Requirements regard... -
Page 56: Further Support
For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at: https://www.belden.com A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at: https://hirschmann-support.belden.com... - Page 57 Installation EAGLE40-6M Release 01 - 04/2025...
