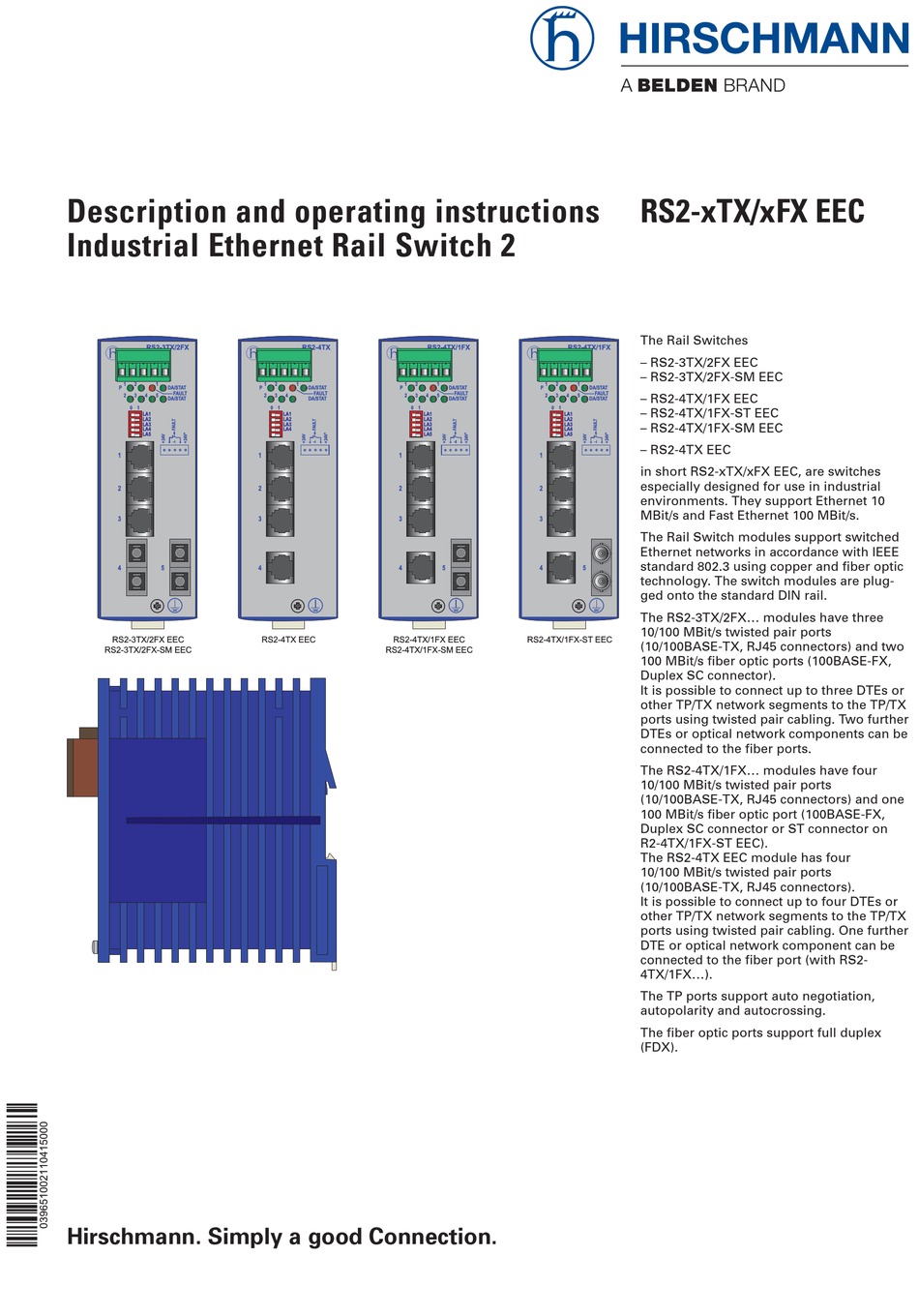

Belden HIRSCHMANN RS2-xTX/xFX EEC Series Description And Operating Instructions

Description and operating instructions
Industrial Ethernet Rail Switch 2
RS2-3TX/2FX
x
1 2 1
P DA/STAT
FAULT
2 3 4 5
DA/STAT
0 1
LA1
LA2
LA3
LA4
LA5
1
2
3
4 5
RS2-3TX/2FX EEC
RS2-3TX/2FX-SM EEC
Hirschmann. Simply a good Connection.

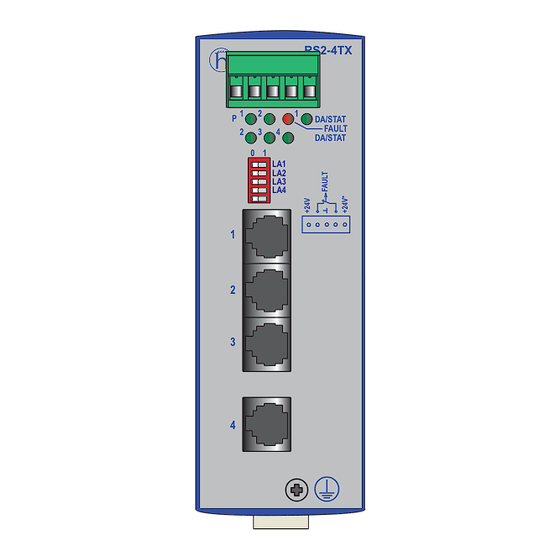

RS2-4TX
x x
1 2 1 1 2
P DA/STAT P
FAULT
2 3 4 2 3
DA/STAT
0 1 0 1
LA1
LA2
LA3
LA4
1 1
2 2
3 3
4 4
RS2-4TX EEC RS2-4TX/1FX EEC
RS2-4TX/1FX-SM EEC
RS2-4TX/1FX RS2-4TX/1FX
x
1 1 2 1
DA/STAT P DA/STAT
FAULT FAULT
4 5 2 3 4 5
DA/STAT DA/STAT
0 1
LA1 LA1
LA2 LA2
LA3 LA3
LA4 LA4
LA5 LA5
1
2
3
5 4 5
RS2-4TX/1FX-ST EEC
RS2-xTX/xFX EEC
The Rail Switches
– RS2-3TX/2FX EEC
– RS2-3TX/2FX-SM EEC
– RS2-4TX/1FX EEC
– RS2-4TX/1FX-ST EEC
– RS2-4TX/1FX-SM EEC
– RS2-4TX EEC
in short RS2-xTX/xFX EEC, are switches
especially designed for use in industrial
environments. They support Ethernet 10
MBit/s and Fast Ethernet 100 MBit/s.
The Rail Switch modules support switched
Ethernet networks in accordance with IEEE
standard 802.3 using copper and fiber optic
technology. The switch modules are plug-
ged onto the standard DIN rail.
The RS2-3TX/2FX... modules have three
10/100 MBit/s twisted pair ports
(10/100BASE-TX, RJ45 connectors) and two
100 MBit/s fiber optic ports (100BASE-FX,
Duplex SC connector).
It is possible to connect up to three DTEs or
other TP/TX network segments to the TP/TX
ports using twisted pair cabling. Two further
DTEs or optical network components can be
connected to the fiber ports.
The RS2-4TX/1FX... modules have four
10/100 MBit/s twisted pair ports
(10/100BASE-TX, RJ45 connectors) and one
100 MBit/s fiber optic port (100BASE-FX,
Duplex SC connector or ST connector on
R2-4TX/1FX-ST EEC).
The RS2-4TX EEC module has four
10/100 MBit/s twisted pair ports
(10/100BASE-TX, RJ45 connectors).
It is possible to connect up to four DTEs or
other TP/TX network segments to the TP/TX
ports using twisted pair cabling. One further
DTE or optical network component can be
connected to the fiber port (with RS2-
4TX/1FX...).
The TP ports support auto negotiation,
autopolarity and autocrossing.
The fiber optic ports support full duplex
(FDX).
