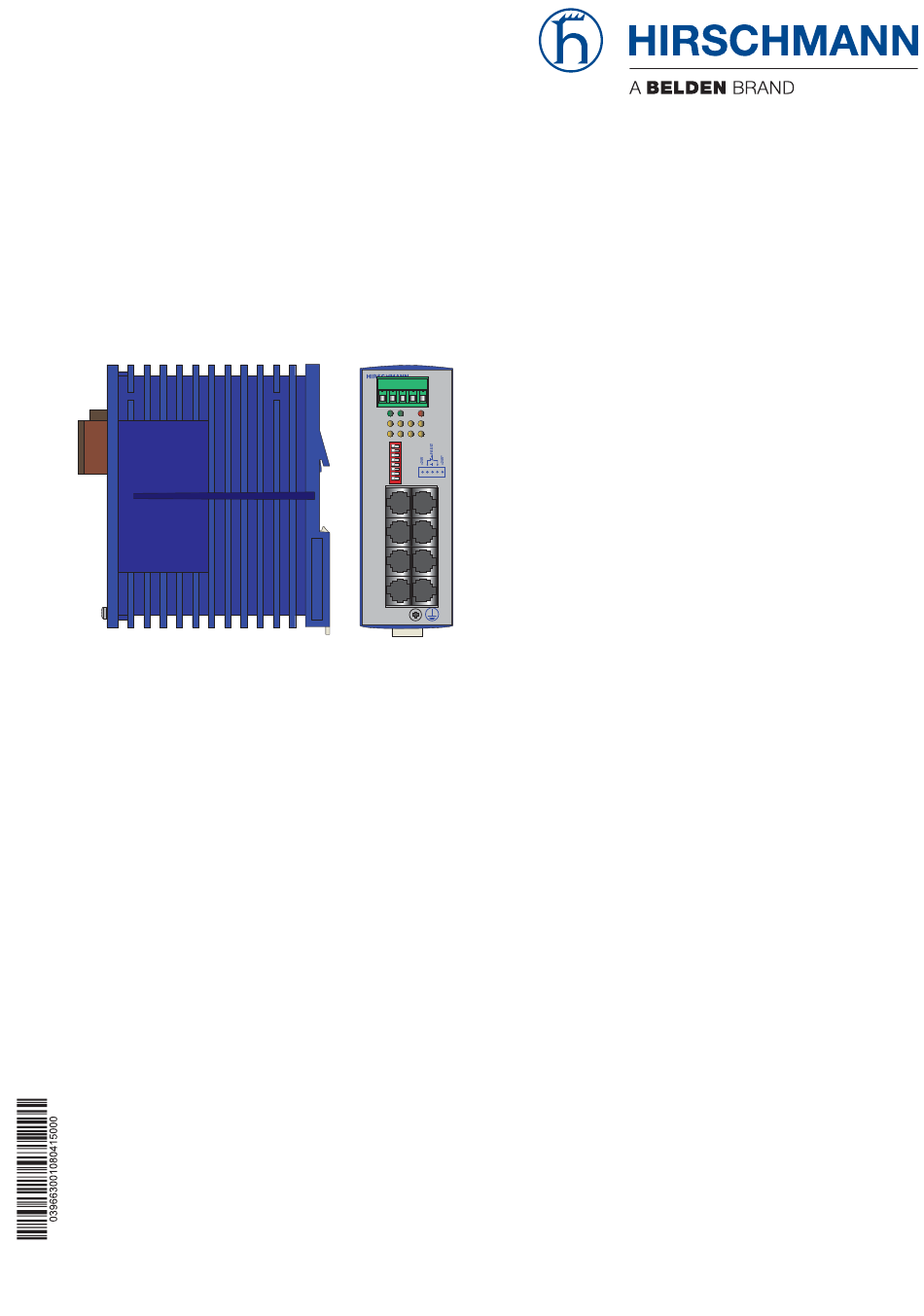

Description and operating instructions
Industrial Ethernet Rail Switch 2
Hirschmann. Simply a good Connection.
RS2-TX
1
2
P
FAULT
1
3
5
7
DA/STAT
2
4
6
8
0 1
LA1
LA2
LA3
LA4
LA5
LA6
LA7
LA8
1
2
3
4
5
6
7
8
RS2-TX
Order No.
943 686-003

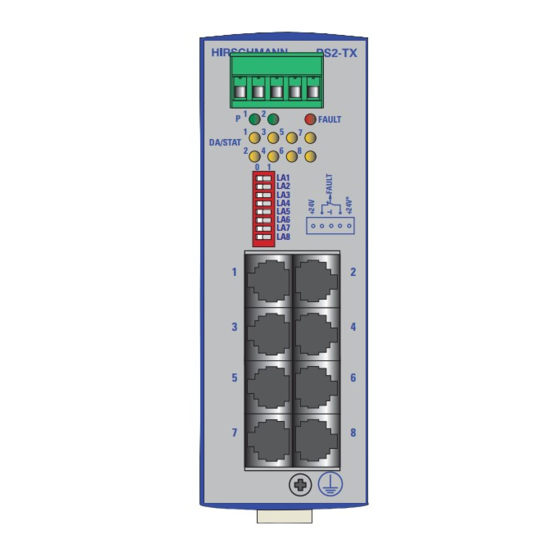

The Rail Switch RS2 has been especially
designed for use in industrial environments.
It supports ETHERNET 10 MBit/s and Fast
ETHERNET 100 MBit/s.
The Rail Switch modules support switched
ETHERNET networks in accordance with
IEEE standard 802.3 using copper technolo-
gy. The switch modules are plugged onto
the standard bar.
The RS2-TX modules have eight 10/100
MBit/s twisted pair ports (RJ45 connectors).
It is possible to connect up to eight data ter-
minal equipments or other network seg-
ments to the 10/100 Mbit/s ports using twi-
sted pair cabling. The ports support auto
negotiation, autopolarity and autocrossing.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hirschmann RS2-TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Belden Hirschmann RS2-TX

  • Page 1 Description and operating instructions RS2-TX Order No. Industrial Ethernet Rail Switch 2 943 686-003 The Rail Switch RS2 has been especially RS2-TX designed for use in industrial environments. It supports ETHERNET 10 MBit/s and Fast ETHERNET 100 MBit/s. FAULT DA/STAT The Rail Switch modules support switched ETHERNET networks in accordance with IEEE standard 802.3 using copper technolo-...
  • Page 2 The performance features described here Safety Guidelines Caution! are binding only if they have been expressly means that light injury or damage to Power Supply guaranteed in the contract. We have property can result if the appropria- checked that the contents of the technical te safety measures are not taken.
  • Page 3 HAZARDOUS LOCATION Class NON HAZARDOUS LOCATION I, Division 2 Groups A, B, C, D Detail: RS2-xxx Power Supply: (Redundant: P1, P2) 24 V DC Relay Contacts: Associated Apparatus: Equipment with nonincendive fi eld wiring Detail: RT2-xxx Power Supply: (Redundant: P1, P2) 24 V DC Relay Contacts: Associated Apparatus:...
  • Page 4 Safety Guidelines Environment Only personnel that have received Notes on CE appropriate training should operate identification this device or work in its immediate Warning! The devices comply with the regula- vicinity. The personnel must be fully The device may only be operated in tions of the following European familiar with all of the warnings and the listed ambient temperature...
  • Page 5 1. Functional description 1.3 FURTHER FUNCTIONS – Pin configuration of the RJ45 socket: AND FEATURES – 1 line pair: pin 3 and pin 6 Reset – 1 line pair: pin 1 and pin 2 The 10/100BASE-T(X) ports of an RS2-TX The RS2-TX will be reset by the following –...
  • Page 6: Startup Procedure

    EMEA region at operate condition. The following procedure Tel.: +49 (0)1805 14-1538 is appropriate for assembly: E-mail: hac.support@belden.com Check whether the switch pre-setting suits your requirements (see chap. 1.5). in the America region at Pull the terminal block off the RS2-TX Tel.: +1 (717) 217-2270...
  • Page 7 5. Technical data General data Operating voltage NEC Class 2 power source 24 V DC (-25% +33%) safety extra-low voltage (SELV) (redundant inputs decoupled), 5 A maximum Buffer time min. 10 ms at 24 VDC Potential difference between input Potential difference to input voltage, +24 VDC: 32 V DC voltage and housing Potential difference to input voltage, ground: -32 V DC Current consumption at 24 VDC...
  • Page 8 Hirschmann Automation and Control GmbH Stuttgarter Straße 45-51 72654 Neckartenzlingen Germany Tel.: +49 (0)1805 14-1538 Fax: +49 (0)7127 14-1551 E-mail: hac.support@belden.com Internet: http://www.hirschmann.com 039 663-001-08-0415...
