Install drive
Slide the tape drive into the open bay, aligning the tray or rails with the slots in the bay, as shown in
on page 23.
Figure 7

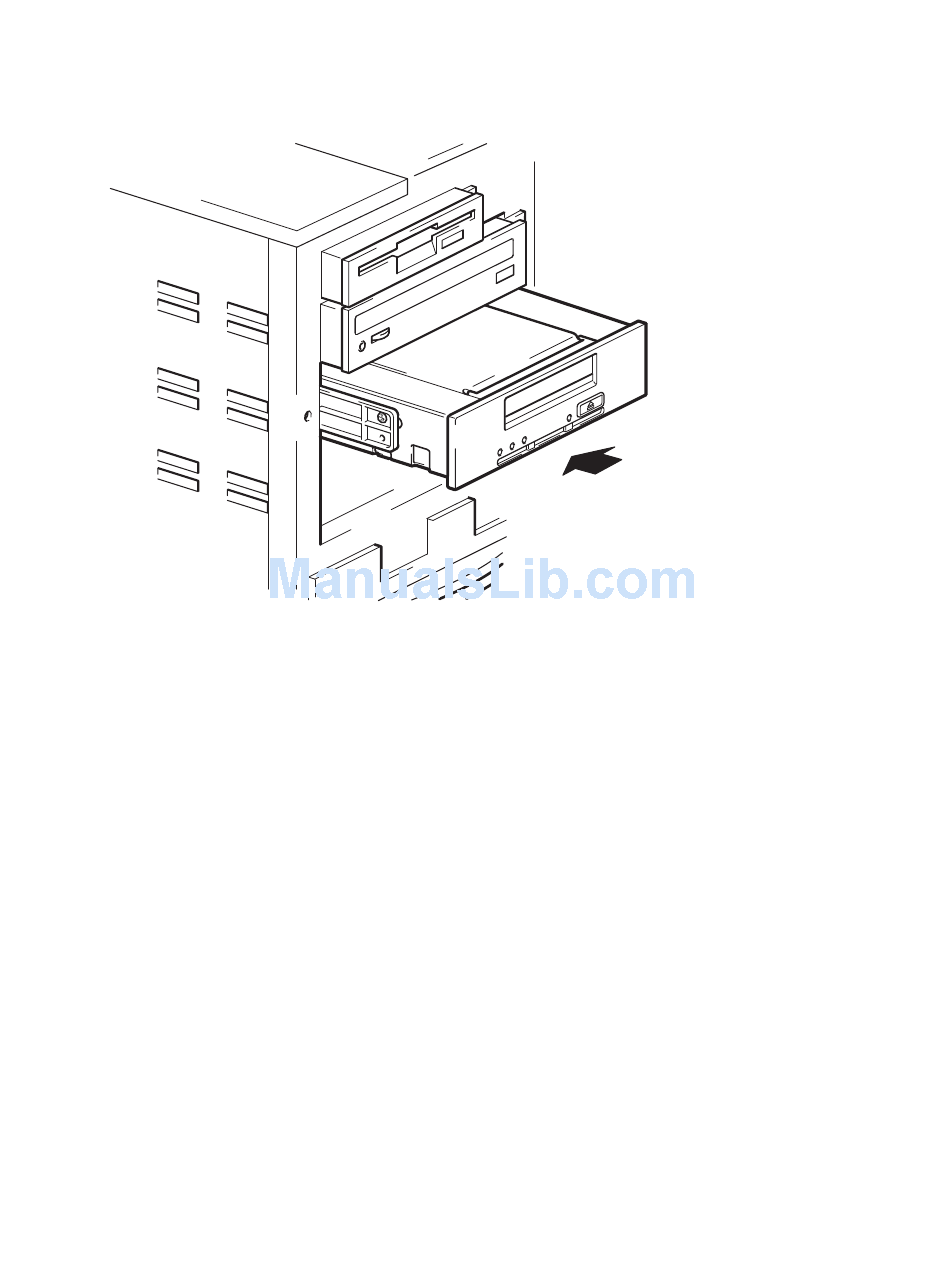

Figure 7 Installing tape drive
If your server does not use mounting hardware, check that the holes in the chassis are aligned with
the holes in the side of the tape drive.
Do not secure the drive at this point because you may have to move the drive to get the cables into place.
Attach USB cable

Decide which cable to use

Several USB cables are supplied with your tape drive because there are various options for connecting
the tape drive to your server:
• To an internal 4-pin USB port on your server's system board; this option uses the special, 4-pin
USB cable and is appropriate for many HP ProLiant servers. Two cables are supplied for
connecting to a 4-pin USB connector because there are two types of pin layout.
• To an internal standard USB port, possibly on your server's system board or on an internal USB
card; this option uses the standard USB cable
• To an external USB port on your server; this option uses the Cable Routing kit and the standard
USB cable
