No mounting hardware used
1.
Use the M3 screws provided with the tape drive. Check that the holes in the chassis are aligned
with the holes in the sides of the drive and use a regular Phillips screwdriver to secure the M3
screws, as shown in

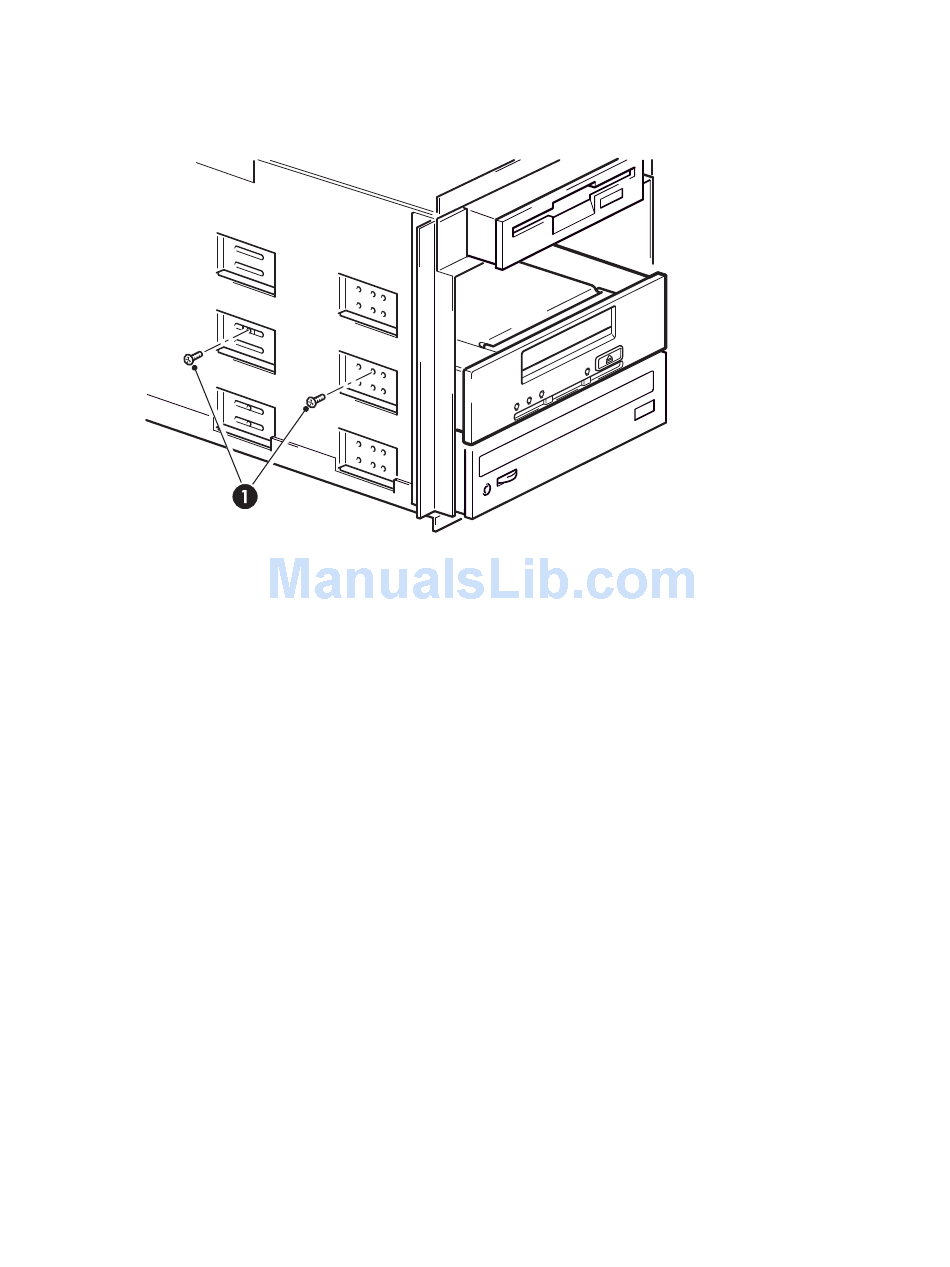

1. M3 screws, supplied with tape drive
Figure 13 Securing drive, no mounting hardware used
2.
Ensure blanking plates are in place over empty bays and replace the cover on the server.
Figure 13
on page 29.
DAT USB Tape Drives
29
