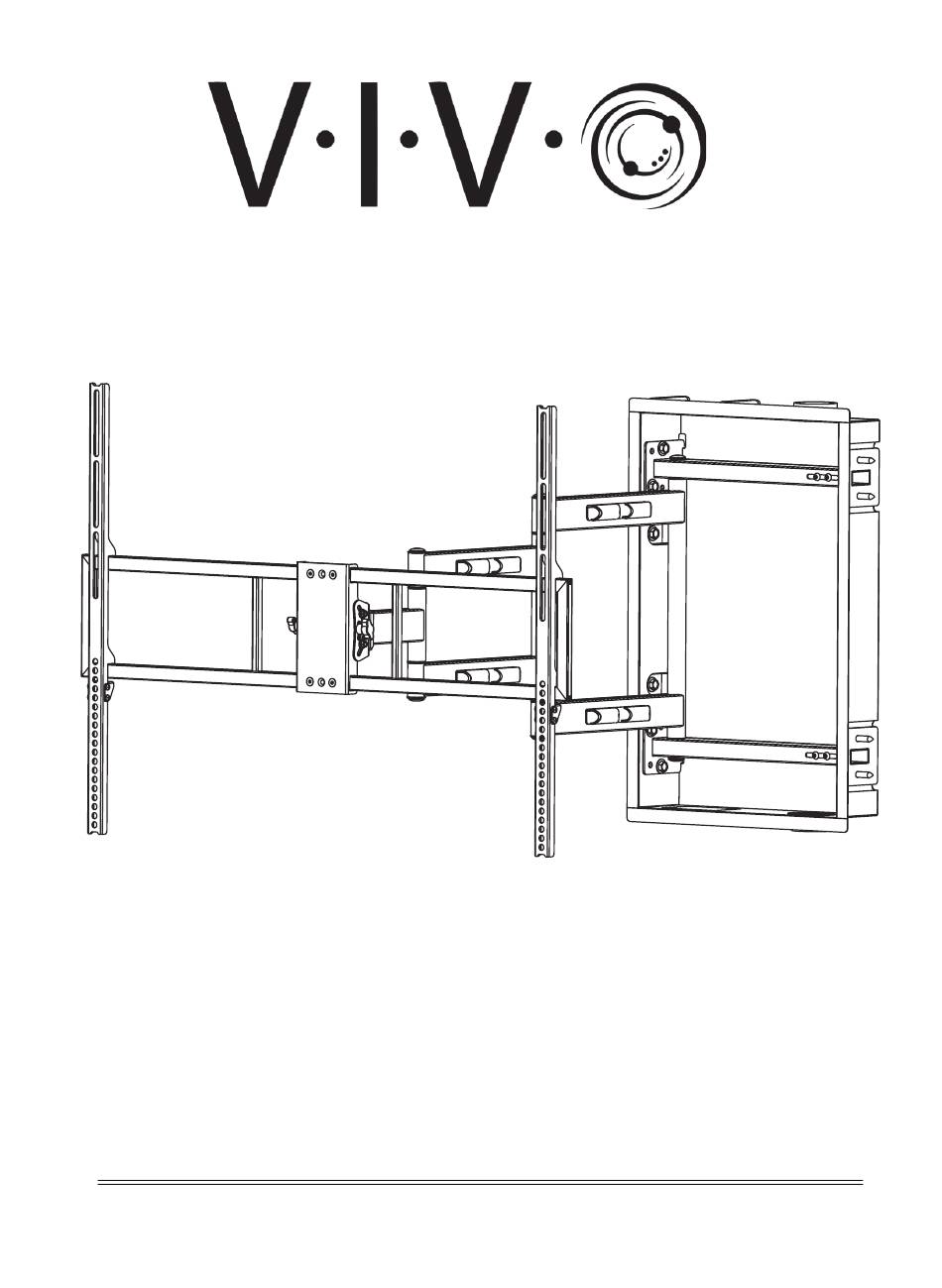

  • Page 1 Premium Recessed Large TV Wall Mount MOUNT-REC02 Assembly Manual...

  • Page 2: We're Here For You

    Saturday 8am-4pm CST US-Based Customer Support from Trained Professionals Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process.

  • Page 3: Please Read

    Returns: We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. Product Specific Warnings: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.

  • Page 4: Package Contents

    Package Contents A (x1) B (x1) C (x2) D (x2) Mount Bracket Rail VESA Bracket E (x4) F (x2) G (x4) H (x4) I (x2) Cable Management Cable Grommet Spacer Block Adhesive Pad Insert Clip Included Hardware & Tools S-A (x4) M-A (x4) M-B (x4) M-C (x4)

  • Page 5: Weight Capacity

    Tools Needed: Tape Drill Stud Finder Pencil Measure Phillips Screwdriver Drywall Saw 3mm Drill Bit 10mm Drill Bit Socket Wrench Weight Capacity: 110lbs (50kg)

  • Page 6: Option 1: Wood Stud Installation

    Option 1: Wood Stud Installation ***Concrete/Brick Installation on Page 10*** STEP 1 Find stud locations using a stud finder Hold the Mount (A) up between two and mark the edge of each stud. studs at the desired height with the back side touching the wall and trace the perimeter using a pencil.
  • Page 7 STEP 2 Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 1/8” (3mm) Hole Depth: 1.2” (30mm) Install Mount (A) to the left stud by Install Cable Grommets (F) to top and the two center mounting holes using bottom of Mount. M8x30mm Screws (W-A), M8 Washers (W-C), and a 13mm socket wrench.
  • Page 8 STEP 2 Option 1: Wood Stud Installation - Cont’d Slide the tabs on the left side of Arm (B) Loosen the Screws (B1) on Arm (B) using into the slots on Mount (A). 4mm Allen Wrench (T-A). Extend the arm until it reaches the right stud.
  • Page 9 STEP 3 With arms fully extended to the right pillar, secure Arm (B) to both pillars using M8x30mm Screws (W-A), M8 Washers (W-C), and a 13mm socket wrench. Proceed to STEP 4 on Page 15...
  • Page 10 Option 2: Concrete/Brick Installation STEP 1 If covered in drywall, hold Mount (A) Find the edges the concrete/brick pillar. with Bubble Level (T-B) up to the desired mounting location with the back side touching the wall and trace the perimeter using a pencil.
  • Page 11 STEP 1 - Cont’d Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 3/8” (10mm) Hole Depth: 2.4” (60mm) Place Mount back into wall, Install Cable Grommets With Mount (A) removed, and attach to left pillar with (F) to top and bottom of insert Concrete Anchors M8x30mm Screws (W-A), M8 Mount.
  • Page 12 STEP 2 Option 2: Concrete/Brick Installation - Cont’d Loosen the Screws (B1) on Arm (B) using Slide the tabs on the left side of Arm (B) 4mm Allen Wrench (T-A). Extend the arm into the slots on Mount (A). until it reaches the right stud. Ensure that the arm is level then tighten Screws.
  • Page 13 STEP 3 With Arm (B) removed, insert Concrete Anchors (W-B) into all of the drilled holes. Reinstall Arm (B) to Mount (A), following Steps 2.1 and 2.2 on the previous page. Secure Arm to both pillars using M8x30mm Screws (W-A), M8 Washers (W-C), and a 13mm socket wrench.
  • Page 14 Optional: Power Receptacle Installation ***To resume standard assembly, go to Next Page*** If installing a power receptacle, remove the square plates on the top and bottom of the Mount (A) by bending the metal back and forth. Attach Adhesive Pads (H) to Spacer Blocks (G) and then onto Mount (A) offset from the cutout. We recommend using a recessed outlet receptacle to provide more space for device plugs.
  • Page 15 STEP 4 Position Bracket Rails (C) into arm slots on Arm (B), as shown. Secure Inserts (I) and Bracket Rails (C) to Arm (B) using M6x20mm Screws (S-A) and 4mm Allen Wrench (T-A).
  • Page 16 STEP 5 Attach VESA Brackets (D) to the back of the TV using combination of Screws (M-A through M-H) and M6 Washers (M-I). Spacers (M-J) may be required. Tighten with a Phillips screwdriver. Flat Back TV Non-Flat Back TV M-A~M-H M-A~M-H...
  • Page 17 STEP 6 Hang the TV with VESA Brackets (D) onto Bracket Rails (C). Flip the latch on the underside of VESA Brackets (D) and tighten the security screws using a Phillips screwdriver to secure them in place.
  • Page 18 STEP 7 Install Cable Management Clips (E) onto Arm (B) and route cables through the clips and Cable Grommets (F).
  • Page 19 Securely store your PC in Clamp on & under desk and more with our clamp-on an under desk mount or keyboard tray options for and wall mount solutions. cart for easy access. all setup types. Explore Endless Workspace Solutions www.vivo-us.com...
