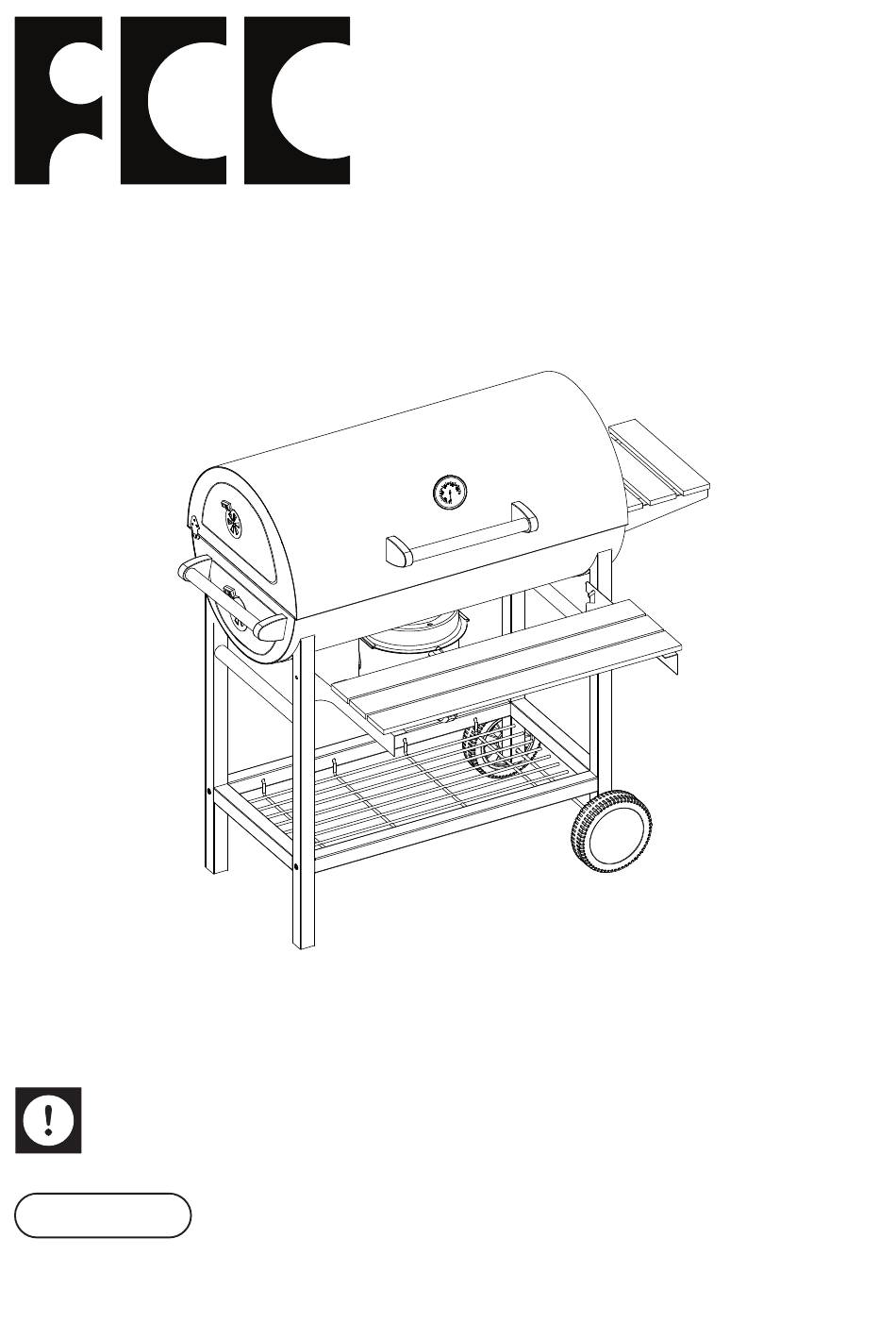

- Page 1 Barrel 70 Kettle grill OUTDOOR USE ONLY! Read the operating instructions and warnings before using the appliance. FCC-C-20570 Assembly, maintenance and safety...
- Page 2 Barrel...
-
Page 3: The Story Of Fcc
THE STORY OF FCC The Flying Culinary Circus is the world’s first traveling cooking group. In 2005 Trond, Hans-Kristian, Mathias, and Tor went to New York. A journey that ended up being an adventure of a lifetime. With 65 countries and 300,000 hours of culinary experience in the Chef... -
Page 4: Table Of Contents
CONTENTS The story of FCC................3 Read before assembly ..............5 Safety and warnings ..............6 Correct amount of charcoal ............8 Parts list ..................10 Exploded drawing ..............11 Assembly instructions ............12 Lighting methods ..............18 Advice, tips and safety ............20 Maintenance ................21 Consumer Contact ..............22... -
Page 5: Read Before Assembly
If the grill is damaged during transport, do not assemble the grill before contacting your dealer or support@fccproducts.no. Transport damage to parts, varnish or paint must be reported to the dealer or FCC Products before mounting and using the grill. If damage is reported after, there is a possibility that damage may have occurred during assembly. -
Page 6: Safety Information
SAFETY INFORMATION! • KEEP CHILDREN, ANIMALS AND OTHERS WHO NEEDS SUPERVISION AT A SAFE DISTANCE FROM THE BARREL . THE BARREL CAN BE EXTREMELY HOT. • NEVER MOVE THE BARREL ONCE LIT OR WHILE IT IS STILL HOT. • DO NOT TOUCH THE BARREL BODY WHEN LIT, IT CAN BE EXTREMELY HOT AND THERE IS A RISK OF BURNS. - Page 7 WARNINGS! ● For outdoor use only! Do not use under awnings, canopies, parasols or the like. ● Place the Barrel on a firm, even and stable surface at a safe distance from buildings, trees and other flammable materials. ● Never move the Barrel when in use. ●...
-
Page 8: Correct Amount Of Charcoal
RECOMMENDED AMOUNT OF CHARCOAL RECOMMENDED AMOUNT OF CHARCOAL 1,3 KG MAXIMUM AMOUNT OF CHARCOAL 1,7 KG RECOMMENDED AMOUNT OF BRIQUETTES 2,0 KG MAXIMUM AMOUNT OF BRIQUETTES 2,2 KG NOTE! NEVER OVERFILL THE BARREL WITH CHARCOAL AS IT MAY DAMAGE THE LACQUERED SURFACES. -
Page 10: Parts List
PARTS LIST CODE DESCRIPTION BOTTOM-SHELF HOLDER BOTTOM SHELF RIGHT LEG LEFT LEG WHEEL AXLE WHEEL FIRE PIT SIDE TABLE HOLDER FOR ASH CUP STRUT FOR AIR ADJUSTMENT AIR ADJUSTMENT ASH CUP HANDLE ASH CUP FRONT TABLE BRACKET HANDLE AIR VENT THERMOMETER HANDLE FOR LID BRACKET... -
Page 11: Exploded View
EXPLODED VIEW M6x50 M6x50 M6x50 M6x50 M6x50 M6x50 M6x50 M6x50 M6x20 M6x50 M6x20 M6x20 M6x12 M6x20 M6x50 M6x50 M6x20 M6x50 M6x20 M5x40 M5x40 M6x12 M6x20 M6x12 M6x20 M5x40 M5x40 M6x12 M6x12 M6x20 M6x20 M5x40 M5x40 M6x12 M6x12 M6x2 M6x12 M5x40 M5x12 M5x12 M5x40... -
Page 12: Assembly Instructions
ASSEMBLY STEP 1 Mount part 1 bottom shelf holders together with part 2 bottom shelf. Step 1 STEP 2 Mount part 3 right leg and part 4 left leg together with bottom shelf using 4 pcs A screws. Step 3 Step 2 M6x50 Barrel... - Page 13 Step 2 ASSEMBLY Step 3 STEP 3 Mount part 5 wheel axel and wheel part 6. Secure with 2 pcs of B nuts. Then attach part 26 wheel cover. M6x50 Step 4 Step 5 STEP 4 Place part 7 bottom on the legs.
- Page 14 Step 1 ASSEMBLY Step 2 STEP 5 Mount part 15 bracket to the grill body with 4 pcs C screws and 4 pcs D nuts. Step 5 2. Mount part 8 side table to the brackets. M6x12 Step 3 Step 4 STEP 6 Mount part 13 ash cup handle with 2 pcs D nuts.
- Page 15 ASSEMBLY STEP 7 Mount part 16 handle to grill body with 2 pcs H screws. Mount part 17 air vent with J screw and G nut. Attach part 14 front table into the hooks on legs. Step 6 M5x12 M6x12 Step 7...
- Page 16 ASSEMBLY M5x12 STEP 8 Mount part 19 Lid handle with 2 pcs H screws. M6x12 Mount part 21 bracket on lid part 20 with 6 pcs J screws. Then install the lid on the grill body with 2 pcs screw F. Mount part 18 thermometer to lid.
- Page 17 ASSEMBLY STEP 9 Mount 6 pcs K screws and 6 pcs nut D on part 24 charcoal board and place it in the grill. Place part 22 cooking grill in the grill barrel. Hang part 25 warming rack on screw to air vent. Step 8 M6x16 The grill is now fully assembled.
-
Page 18: Lighting Methods
LIGHTING METHODS We recommend using lighting briquettes, charcoal starter or electric grill starter for lighting charcoal/ briquettes. lighter fluid is not recommended. DURING LIGHTING Grills with lids: Always have the lid off or open during lighting. Never close the lid before the flames from the charcoal have died down, to avoid damaging the lid surface. - Page 19 LIGHTING METHODS WE RECOMMEND USING LIGHTING BRIQUETTES FOR LIGHTING CHARCOAL. USE DRY CHARCOAL FOR FUEL, PREFERABLY BIRCH. LIGHTER FLUID IS NOT RECOMMENDED. ● Place charcoal in a pyramid. ● Place 2–3 lighting briquettes between the charcoal and light them with a match. ●...
-
Page 20: Advice, Tips And Safety
USING THE BARREL ● Read page 8 for correct amount of charcoal. ● Do not overfill the Barrel with charcoal. The Barrel can get too hot for cooking and the heat can represent a risk to people or animals in the vicinity. ●... -
Page 21: Maintenance
IMPORTANT THIS BARREL IS MADE OF PAINTED STEEL WHICH CAN RUST ON SURFACE AND JOINTS. THIS DOES NOT AFFECT THE FUNCTIONALITY OF THE BARREL. TO MINIMIZE RUST FORMATIONS MAKE SURE: ● Not to exceed recommended quantities of charcoal stated in the user manual. ●... -
Page 22: Consumer Contact
+ carriage and administration fee. If new parts are needed or in the event of a warranty claim, please contact your dealer or consumer contact: FCC Products AS Kjeller vest 3, 2007 Kjeller, Norway +47 924 78 600 Support opening hours: Mon–Fri 10:00–14:00...
