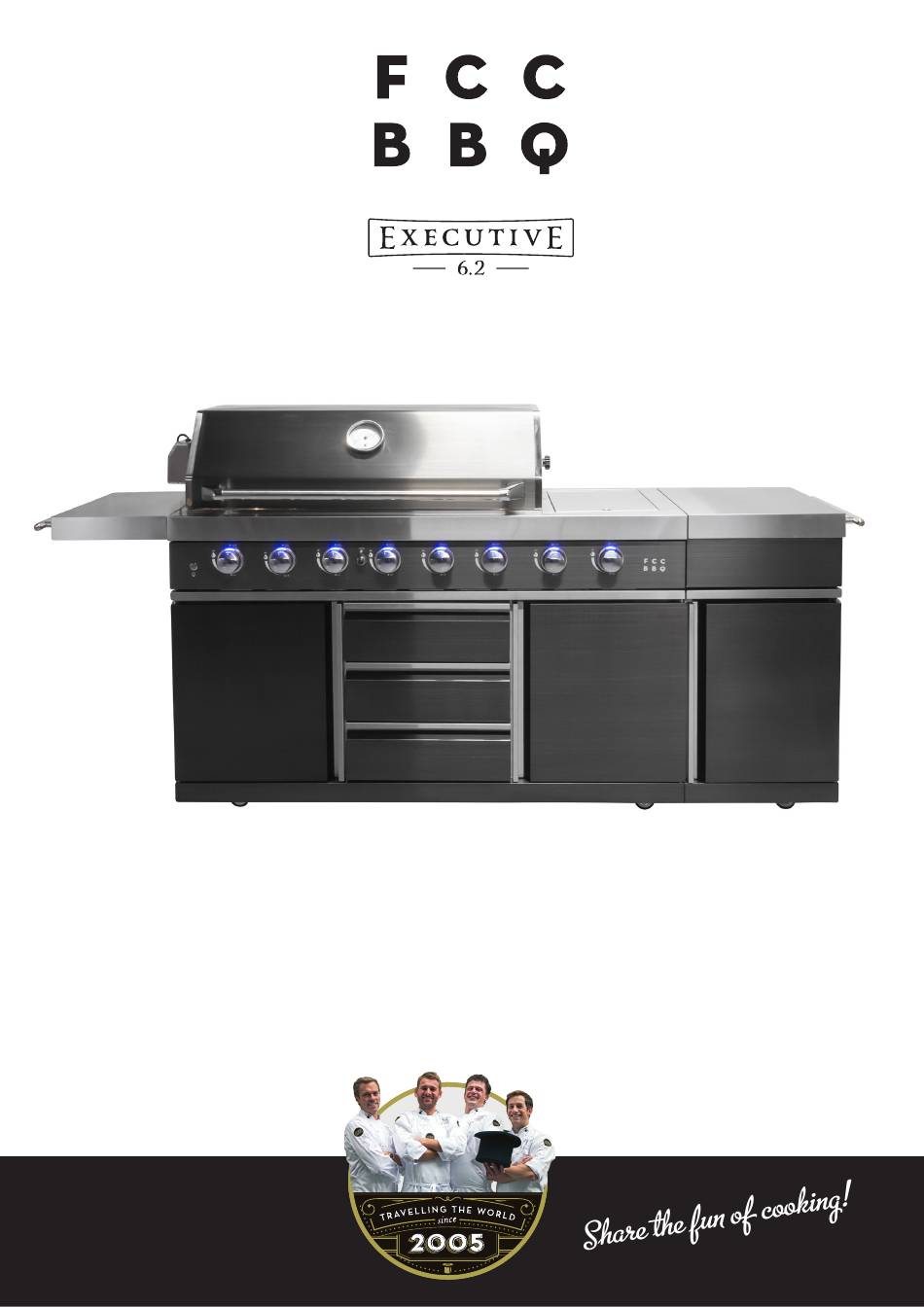

- Page 1 Instructions and maintenance MANUAL FCC-G-20350-62SE / 611i-F2G-1 OUTDOOR USE ONLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE.
-
Page 2: Table Of Contents
Contents Warnings Technical data Parts list Assembly Regulator and hose Check for leaks Lighting instructions Last check Maintenance Troubleshooting Consumer contact... -
Page 3: Warnings
Warnings • THIS PRODUCT IS DESIGNED AS A HOME APPLICANCE AND NOT SUITABLE FOR PROFFESIONAL USE IN A RESTAURANT OR SIMILAR. • FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND FIXED INSTALLATIONS. •... -
Page 4: Technical Data
Technical Data Tekniske data Total Heat input: 27.7 kW Gas consumption: 2016 gram/hour Gasbottle (not included): Use standard bottle approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region. -
Page 5: Parts List
Parts list CODE DESCRIPTION WARMING RACK COOKING GRID COOKING GRID FLAME TAMER FIREBOX ASSY SIDE BURNER GRID INFRARED SIDE BURNER HANDLE SIDE TABLE DRIP TRAY CABINET CABINET FOR GAS TANK ROTISSERIE ROTISSERIE MOTOR BRACKET FOR ROTISSERIE MOTOR TRANSFORMER COVER M6x10 SCREW... -
Page 6: Assembly
Assembly Before beginning assembly of product make sure all parts are present. Compare parts with package contents list. If any parts are missing or damaged, do not attempt to assembly the product. Remove all packing material from the grill. Tools required: Philips Screwdriver Gloves (if necessary) 1. -
Page 7: Flame Tamer
Assembly 3. Flame tamer assembly (No. 4) 4. Flame tamer assembly (No. 4) 5. Warming Rack Assembly (No. 1) 6. Side burner grid (No. 6) - Page 8 Assembly 7. Fat tray (No. 10) 8. Igntion 1XAA BATTERY NEEDED. BATTERY NOT INCLUDED 9. For gas tank 10. Rotisserie kit...
- Page 9 Assembly Replacing the main burner Replacing the barbecue lights Replacing the LED light 1. Take off the light rear cover 1. Take off the control knob and unscrew the knob bezel 2. Take off the light 2. Take off the unit and disconnect the cable 3.
-
Page 10: Regulator And Hose
Regulator and hose Follow these instructions carefully to avoid serious damage your barbecue and causing injury to yourself and to property. HOSE • Connect the gas hose to the gas rail inlet on the left hand side of the barbecue. Do not overtighten. •... -
Page 11: Check For Leaks
Check for leaks Before use please check for leaks Never check for leaks with a naked flame, always use a soapy water solution 1. Make a mixed solution (water and liquid detergent / soap). 2. Ensure that there are no naked flames, heat sources and cigarettes in the vicinity when performing a leak test. -
Page 12: Lighting Instructions
Lighting Instructions LIGHTING INSTRUCTIONS The lid must be open when lighting the burner. Do not stand with your face directly over the gas grill when lighting it. With all gas controls on the gas grill in the “OFF” position, turn the gas cylinder valve to the ON position at the regulator. -
Page 13: Last Check
Last Check PLACEMENT OF THE BBQ • Ensure that the BBQ is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. • Do not place the BBQ under a roof or overhang. •... -
Page 14: Maintenance
Maintenance Keep the barbecue body and the accessories clean to avoid grease fire. IN CASE OF GREASE FIRE CLEANING In case of grease fire, close the gas supply and All cleaning and maintenance should be disconnect the controller and wait until the fire carried out when the appliance is cool and goes out by itself. -
Page 15: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Gas bottle is empty Replace gas bottle Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT Electrode is broken or dirty Clean the electrode LIGHT Ignition knob is broken... -
Page 16: Consumer Contact
Always attach your receipt and product serial number when making a warranty claim. Serial number is located on the side of the BBQ. Produced in China for FCC Products AS We are always looking for ways we can improve our products. Therefore, we reserve the right to change technical...
