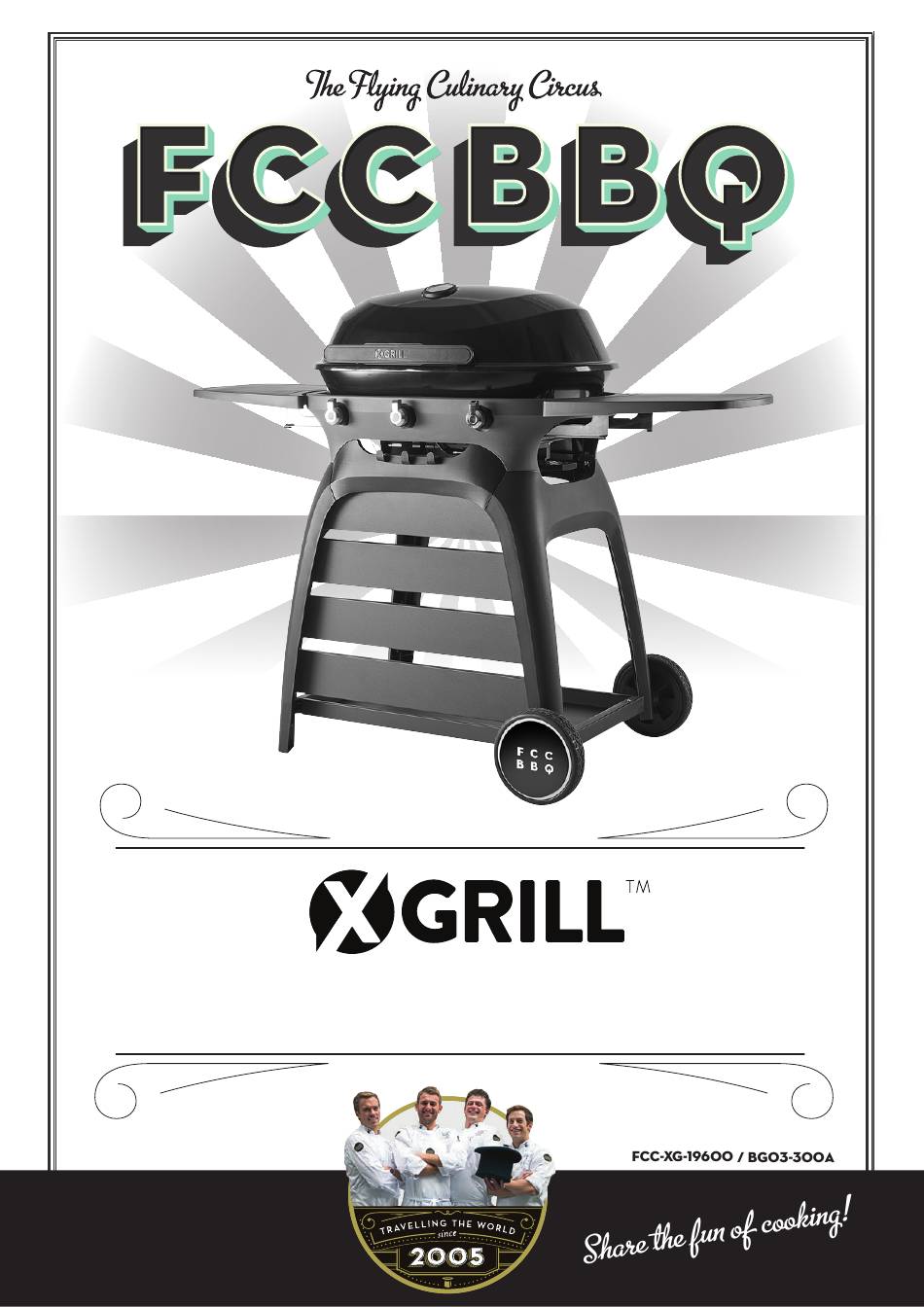

- Page 1 CHEF INSTRUCTION MANUAL AND MAINTENANCE OUTDOOR USE ONLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE.
-
Page 2: Table Of Contents
Contents Warnings ..........................3 Technical Data ........................4 Gas category ...........................4 Exploded Drawing .......................5 Parts list .............................6 Hardware ..........................7 Assembly instructions ......................8 Moving the grill........................14 Gas leak test .........................16 Last check ..........................17 Lighting instructions ......................18 Warnings ..........................19 Maintenance ........................20 Grease fire ..........................21 Grilled Leeks ........................22 Troubleshooting ........................23 Consumer Contact ......................24... -
Page 3: Warnings
Read carefully WARNINGS • FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND FIXED INSTALLATIONS. • THE BBQ IS INTENDED FOR OUTDOOR USE ONLY IN WELL- VENTILATED AREAS. NEVER BBQ IN ENCLOSED SPACES OR UNDER A ROOF, DUE TO THE DANGER OF THE LACK OF OXYGEN. -
Page 4: Technical Data
Technical Data Tekniske data W: 144cm H:108 cm Total Heat input: 7.5 kW Gas consumption: 547 gram/time Gasbottle (not included): Use standard bottle approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region. -
Page 5: Exploded Drawing
Exploded Drawing... -
Page 6: Parts List
Parts List CODE DESCRIPTION HANDLE BAKELITE HEAT SHIELD THERMOMETER THERMOMETER BASE RIGHT GRILL LEFT GRILL MIDDLE GRILL LEFT BURNER MID BURNER THE FIRE TANK RIGHT BURNER COLLECTOR BOX RIGHT SUPPORT SIDE TABLE LEFT SUPPORT SIDE TABLE FURNACE BODY SIDE TABLE CONNECTING PLATE ASSEMBLY KNOB BASE VALVE PIPE ASSEMBLY... -
Page 7: Hardware
Hardware HARDWARE CODE DESCRIPTION CODE DESCRIPTION ST4.2x10 Screw M6 Butterfly Nut M6 Washer M4x8 Screw M5x65 Screw M8 Locking Nut M5 Spring Washer M8 Washer Hinge Hexagonal Wrench M5 Washer Allen Wrench M6x25 Screw WARNING! EXERCISE CAUTION WHEN USING ELECTRIC TOOLS –... -
Page 8: Assembly Instructions
X-GRILL Assembly PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP. Step 1: Fix the left and right side panels (25) (27) of the frame to the left and right sides of the frame bottom plate (26) with screws A. ASSEMBLY INSTRUCTIONS X-GRILL PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP. - Page 9 Assembly Fix the front panel (28) (29) (30) (31) of the frame to the left and right side panels of the frame in Step 3: sequence by screws A, and fix the tool hook (24) to the front cross of the frame with screws A. Fix the front panel (28) (29) (30) (31) of the frame to the left and right side panels of the frame in Step 3: sequence by screws A, and fix the tool hook (24) to the front cross of the frame with screws A.
- Page 10 Assembly Pass the wheel axle (33) through the wheel (34) and the right side of the frame, and fix it with K, J. Step 5: (As shown in the figure, use the hex wrench M1 to fix the wheel axle at the card slot and clamp it with M2. Turn it clockwise to lock it) 2PCS Pass the wheel axle (33) through the wheel (34) and the right side of the frame, and fix it with K, J.
- Page 11 Assembly Place the frame assembly (15) on the frame as shown and secure it with B.G.H. Step 7: Place the frame assembly (15) on the frame as shown and secure it with B.G.H. Step 7: 4PCS 4PCS 4PCS 4PCS 4PCS 4PCS NOTE TWO PERSONS IS...
- Page 12 Assembly Use the screw E to fix the side plate assembly to the left and right sides of the furnace assembly Step 9: (use the Allen key L to lock the E clockwise). 4PCS Use the screw E to fix the side plate assembly to the left and right sides of the furnace assembly Step 9: (use the Allen key L to lock the E clockwise).
- Page 13 Assembly Place the grilling net (7) in the left grilling net (6) on the right grilling net (5) on the furnace body as Step 11: shown in the figure. Place the grilling net (7) in the left grilling net (6) on the right grilling net (5) on the furnace body as Step 11: shown in the figure.
-
Page 14: Moving The Grill
Moving the grill IMPORTANT! INSTRUCTION OF MOVING THE GRILL CORRECTLY: Gently lift the edge of the side table 45 degrees. Gently pull the side table to the edge about 20mm. Gently lower the side table and attach it to the side panel of the frame CHEF... - Page 15 Assembly Grasp the joint between the front and rear plates of the furnace body with both hands and lift it up to push the grill. Always fold the side table before lifting to move the grill.
-
Page 16: Gas Leak Test
Gas Leak Test WARNING ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BBQ. LEAK TEST ANNUALLY, AND WHENEVER THE GAS BOTTLE IS REMOVED OR REPLACED. ALWAYS PERFORM A LEAK TEST IN A WELL-VENTILATED AREA. Make a mixed solution ( water and liquid detergent / soap). WARNING Ensure that there are no naked flames, heat sources and cigarettes in the vicinity when performing a leak test. -
Page 17: Last Check
Last Check LOCATION Ensure that the BBQ is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. Do not place the BBQ under a roof or overhang Ensure the BBQ is placed where there is plenty of ventilation. Do not BBQ below normal ground level. -
Page 18: Lighting Instructions
Lighting Instructions LIGHTING INSTRUCTIONS MANUAL IGNITION 1. Turn all knobs to “OFF” (O), then You can light the burner manually if open the tank valve. the electronic ignition fails. Wearing a protective glove, hold a long kitchen 2. Open lid during lighting match or extended gas lighter alongside 3. -
Page 19: Warnings
Read Carefully WARNINGS • ALWAYS KEEP AN EYE ON THE BBQ WHEN IN USE. NEVER ALLOW CHILDREN OR OTHERS WHO REQUIRE SUPERVISION NEAR THE BBQ WHEN IN USE. • THIS BBQ IS ONLY INTENDED FOR OUTDOOR USE AND MUST NOT BE USED UNDER A ROOF. -
Page 20: Maintenance
Maintenance MAINTENANCE INSECTS AND VERMIN After long-term storage, insects and other vermin can Check that the burners are burning correctly regu- be found in the BBQ. If you experience problems with larly. lighting or irregular flames, it can be due to unwanted Remove the BBQ grates. -
Page 21: Grease Fire
Grease Fire Lack of maintenance may result in a grease fire because old fat and grease takes fire when it reaches high temperatures. PREVENT GREASE FIRE • Clean the BBQ regularly to avoid rease fire. Always, remove residues of grease and food after the BBQ has been used. IN CASE OF GREASE FIRE In case of grease fire, close the gas supply and disconnect the control- ler. -
Page 22: Grilled Leeks
Recipe Try to make one of our favorites GRILLED LEEKS Heat up a pan and melt the sugar until brown, 2 leeks but make sure it doesn’t burn. When the sugar is 3 slices of stale bread caramelised add the almonds and stir. 100 g caramelised almonds Place them on a greaseproof paper to cool off and 3 tbs sugar... -
Page 23: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Empty gas bottle Replace gas bottle Damaged regulator Check/replace the regulator Burner is blocked Clean the burner Gas supply is blocked Clean gas ventury or hose BURNER WILL NOT LIGHT Electrode is broken or dirty Clean the electrode Place the BBQ in a less Windy conditions... -
Page 24: Consumer Contact
Always attach your receipt and product serial number when making a warranty claim. Serial number is located on the side of the BBQ. Produced in China for FCC Products Co., Ltd. We are always looking for ways we can improve our products. Therefore, we reserve the right to change technical specifications at any time.
