Purpose
This document describes the procedure for attaching legs to the jackknife sofa. The aftermarket leg kit is
PN
364582
and contains two 11
Resources Required
• Socket wrench
1/2
•
" socket
1/2
•
" open-end wrench
Installation
1.
Stand sofa on its side to provide access to one leg bracket.
2.

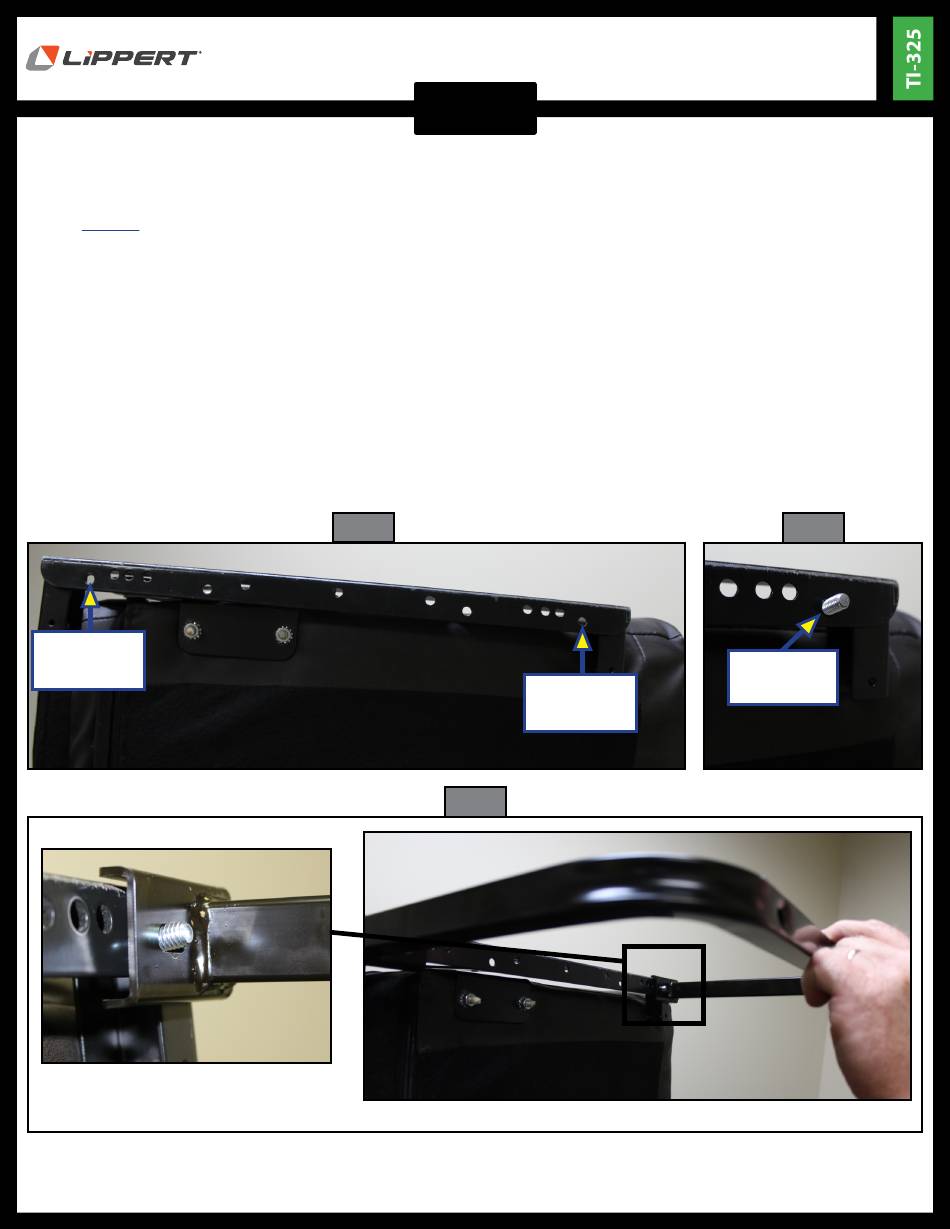

Install bolts facing outward in the holes on the end of each side of the leg bracket (Figs 1 and 2).
3.
Insert leg section onto the bolts (Fig. 3).
Hole at End
of Bracket
Rev: 12.12.2024
JACKKNIFE SOFA SUPPORT LEG
INSTALLATION GUIDE
FURNITURE
1/2
5/16
" x 2" legs, four
Fig. 1
Fig. 3
Page 1
3/4
" - 18 x
" bolts and four nylon locknuts.
Hole at End
of Bracket
Fig. 2
Bolt Facing
Outward
CCD-0002702
