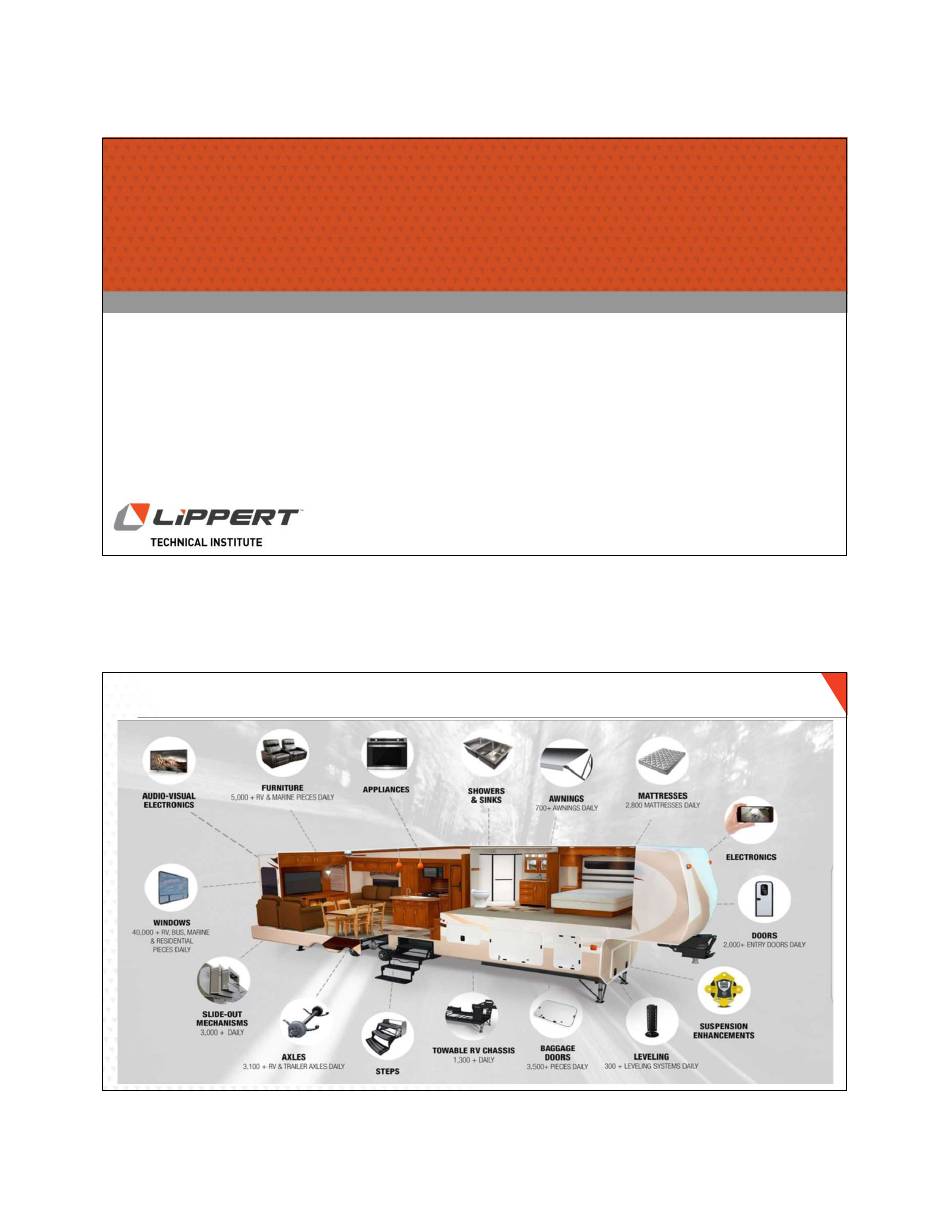

- Page 1 6/10/2022 WELCOME TO LIPPERT TECHNICAL TRAINING TRAINING INTRODUCTION RV PRODUCT LINES...
-
Page 2: Online Resources
Hours of Operation Current 24/7 Offering Monday – Friday: 8AM – 7PM (ET) www.Lippert.com Saturday: 9AM – 5:30PM (ET) Technical Institute Youtube Channel 432-LIPPERT (432-547-7378) • Technical Videos customerservice@lci1.com • Owners and Aftermarket Videos MyLCI App Emergency (After Hours) Contact... - Page 3 View listings for service schools, regional and webinar Complete the final exam to ensure credit for the training. Contact information can also be found here. course. After passing, your certificate will become available to you. There is also a survey for feedback. LEVEL-UP TOWABLE HYDRAULIC LEVELING...
-
Page 4: Operation
6/10/2022 14,000 LANDING GEAR JACKS8,000 JACKS Current Mounting Holes Original Current Mounting Mounting Holes Holes Current Current Original Footpad Footpad Footpad OPERATION • Unhitching (Extend Landing Gear Jacks) • Auto Level • Reconnect (Left and Right/Auto Hitch/Hitch Height) • Auto Retract (Auto Retract/Retract All) Auto Leveling LCD Touch Pad OneControl Touch Panel... - Page 5 6/10/2022 SETTING THE ZERO POINT LCD TOUC H PAD • Manually run the jacks to level the unit. This is best achieved by placing a level in the center of the unit and leveling it both front to back and side to side. •...
- Page 6 6/10/2022 • Battery must be maintained at full capacity • Remove dirt and debris from jacks • Silicone lubricant every 3 months or 4-6 weeks in MAINTENANCE salty environment • Clean and inspect all electrical connections • Dexron III or Mercon V Class “A” ATF SCHWINTEK IN-WALL SLIDE-OUT...
- Page 7 6/10/2022 UPPER COLUMN ASSEMBLY Gear Rack Motor Column Upper Bearing Block Coupler Shoe Spur Gear Gibs V-Roller Torque Shaft LOWER COLUMN ASSEMBLY Torque Shaft Lower Bearing Block Shoe Spur Gear Gibs V-Roller...
-
Page 8: Error Codes
6/10/2022 H-Column Wiper Seal Motor Retention Screw Hole Notch Variant Code Sticker ERROR CODES LED Error Codes Electronic Manual override • Mode Button: press 6x, hold on 7 • Use switch to operate room • To exit mode: press and hold mode button Green Mode... -
Page 9: Manual Override
6/10/2022 MANUAL OVERRIDE Disconnect Motor Harness Disengage Motor • Locate controller. • Bend back wipe seal. • Unplug both harnesses • Remove retention screw Push or pull slide room in as desired Pull the motor up until disengaged • • •... -
Page 10: Technical Support
6/10/2022 Question and Answer If you have questions, please feel free to ask us now. Otherwise, we are available and happy to discuss anything presented with you. TECHNICAL SUPPORT www.Lippert.com 432–LIPPERT customerservice@lci1.com...
