SlimRack
Plus Slide-out
®
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SlimRack Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lippert SlimRack Plus

Summary of Contents for Lippert SlimRack Plus

  • Page 1 SlimRack Plus Slide-out ® OWNER'S MANUAL...

  • Page 2: Table Of Contents

    The Lippert SlimRack® Plus Slide-Out system maximizes interior RV space by providing added comfort and offering a practical solution for additional space needs. The Lippert SlimRack Plus Slide-Out system combines versatile above-floor placement with attractive, seamless flush-floor style for a sleek, polished, high-end look with no step up.

  • Page 3: Safety

    Failure to correctly follow the provided instructions may result in death, serious personal injury, severe product and/or property damage, including voiding of the Lippert limited warranty. The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause death or serious personal injury if not performed safely and within the parameters set forth in this manual.

  • Page 4: Operation

    Operation Always make sure that the slide-out room path is clear of people and objects before and during operation of the slide-out room. Always keep away from the gear racks when the slide-out is being operated. Prior to Moving the Slide-Out Room •...

  • Page 5: Modes

    Modes The SlimRack Plus Slide-Out controller has multiple operating modes. Normal Operating Mode This is the operating mode which extends and retracts the slide while maintaining synchronization between the two sides. The controller will self-synchronize, detect end-of-travel, detect and store faults and electronically protect the slide-out when certain faults are detected.

  • Page 6: Manual Override Mode

    When manually retracting the slide-out room, make sure that both sides of the slide-out room move together. Damage to the slide-out room may result if movement is not uniform. Manual Override Mode In the event that power is lost to the slide-out motor(s), the slide-out room can be manually retracted by following these steps.

  • Page 7: Alternate Override Modes

    Alternate Override Modes If none of the previous override methods retract the slide-out room, it may be possible to manually retract the slide-out room by one of the following alternate methods. Both of these procedures will only be possible if there is access to the described areas. Manually retract the slide-out room using a ratchet and socket attached to the end of the coupler (Fig.
  • Page 8 When manually retracting the slide-out room, make sure that both sides of the slide-out room move together. Damage to the slide-out room may result if movement is not uniform. 1/2” Manually retract the slide-out room by turning the square drive shaft of each vertical channel assembly.

  • Page 9: Troubleshooting

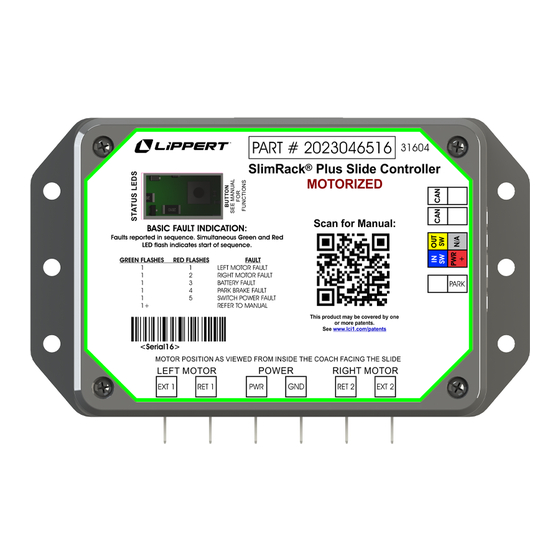

    Troubleshooting The SlimRack Plus Slide-Out controller detects several faults. LEDs on the controller are used to indicate when the controller is driving a slide-out and faults. The QR code on the controller can be scanned with a mobile phone camera and leads to more troubleshooting documentation (Fig. 7).

  • Page 10: Switching Between Operating Modes

    Switching Between Operating Modes It is possible to switch between operating modes using the mode button. The controller will return to normal operating mode on its own after 2 minutes, even if being driven. NOTE: When in electronic override mode, electronic protections will be disabled. Operating Modes Presses Function...

  • Page 11: Controller Connections

    Controller Connections The controller has connections on two sides (Fig. 8). The connections on one side are for power into the controller and extend and retract outputs to each motor. The connections on the other side are for an external switch, a parking brake input and CAN communications to OneControl systems.

  • Page 12: Led Indications

    LED Indications • When driving motors, the green LED and red LED will blink synchronously. • When indicating faults, the LEDs blink sequentially, report all faults and repeat. The green LED will blink once or twice to indicate the reporting mode, followed by one to several blinks of the red LED to indicate each fault.

  • Page 13: Maintenance

    Maintenance The Lippert slide-out system has been designed to require very little maintenance. To ensure the long life of the slide-out system, follow these simple procedures: When slide-out room is extended, visually inspect the slide gear rack assemblies. Check for excess buildup of dirt or other foreign material.

  • Page 14: Wiring Diagram - Towable

    Wiring Diagram - Towable Wall Switch Slide-Out Controller OEM- Supplied Wire Connector 30 Amp Circuit Chassis Breaker Page 14 Rev: 06.14.24 CCD-0007721...

  • Page 15: Wiring Diagram - Motorized

    Wiring Diagram - Motorized Wall Switch Slide-Out Controller To Park Brake Signal OEM- Supplied Wire Connector 30 Amp Circuit Chassis Breaker Page 15 Rev: 06.14.24 CCD-0007721...
  • Page 16 Lippert representative has been provided.  Any unauthorized use shall void any applicable warranty.  The information contained in this manual is subject to change without notice and at the sole discretion of Lippert.  Revised editions are available for free download from lippert.com.
