- Page 2 ADDAC200BNC Assembly Guide March.2025 ADDAC SYSTEM page 2...

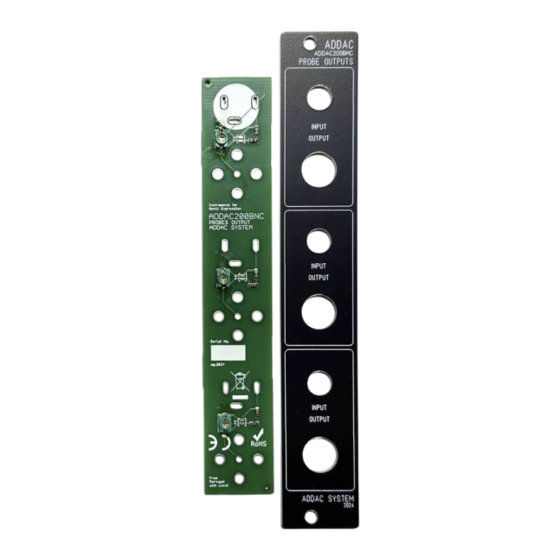

- Page 3 ADDAC200BNC Assembly Guide STEP 1: Grab the pcb and place the BNC connectors, discard the round washers with the flange. Notice the orientation of the BNC, allign all side flanges to the right of the panel. STEP 2: Locate the jacks and cut the thinest leg like shown below.
- Page 4 ADDAC200BNC Assembly Guide STEP 3: Place the jacks on the front pcb do not solder them just yet. STEP 4: Attach the frontpanel to the pcb, and tighten all the jack nuts, then proceed by soldering their legs and trimming the excess wire.
- Page 5 ADDAC200BNC Assembly Guide STEP 5: Finish it by soldering the BNC side flange to the pcb hole below. From underneath fill the hole with solder then from the top add solder to the BNC flange and make sure the top solder flowed into the hole underneath making a good connection.
- Page 6 ADDAC200BNC Assembly Guide CALIBRATION: For each input, insert a square oscillator at about 500Hz to the input and the BNC output to your oscilloscope. Then, using a tiny flat screwdriver, adjust the trimming capacitors to have a flat square transition.
- Page 7 ADDAC200BNC Assembly Guide You’re all done! Happy Patching! ADDAC SYSTEM page 7...
-
Page 8: Assembly Guide
For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC200BNC ASSEMBLY GUIDE Revision.01 March.2025...
