- Page 2 ADDAC219IN Assembly Guide March.2025 ADDAC SYSTEM page 2...

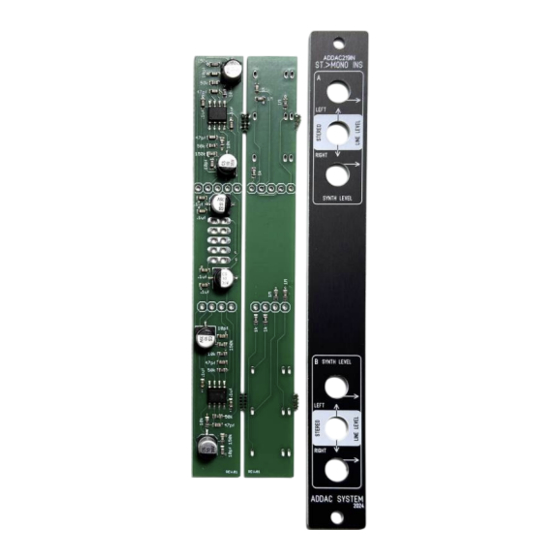

- Page 3 ADDAC219IN Assembly Guide STEP 1: Grab the pcb, and locate the male and female pinheaders. STEP 2: Insert the male pinheaders on corresponding female pinheaders, place them between both pcbs and solder them. ADDAC SYSTEM page 3...
- Page 4 ADDAC219IN Assembly Guide STEP 4: Place the Power IDC connector and solder it. Notice the orientation of the IDC connector STEP 6: Place the jacks on the front pcb following the color placement shown below. Place the front panel and tighten all the jack nuts, then proceed by soldering their legs.
- Page 5 ADDAC219IN Assembly Guide You’re all done! Happy Patching! ADDAC SYSTEM page 5...
-
Page 6: Assembly Guide
For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC219IN ASSEMBLY GUIDE Revision.01 March.2025... - Page 7 ADDAC219IN Assembly Guide STEP 4: Finish it by attaching both front and back pcbs. ADDAC SYSTEM page 4...
