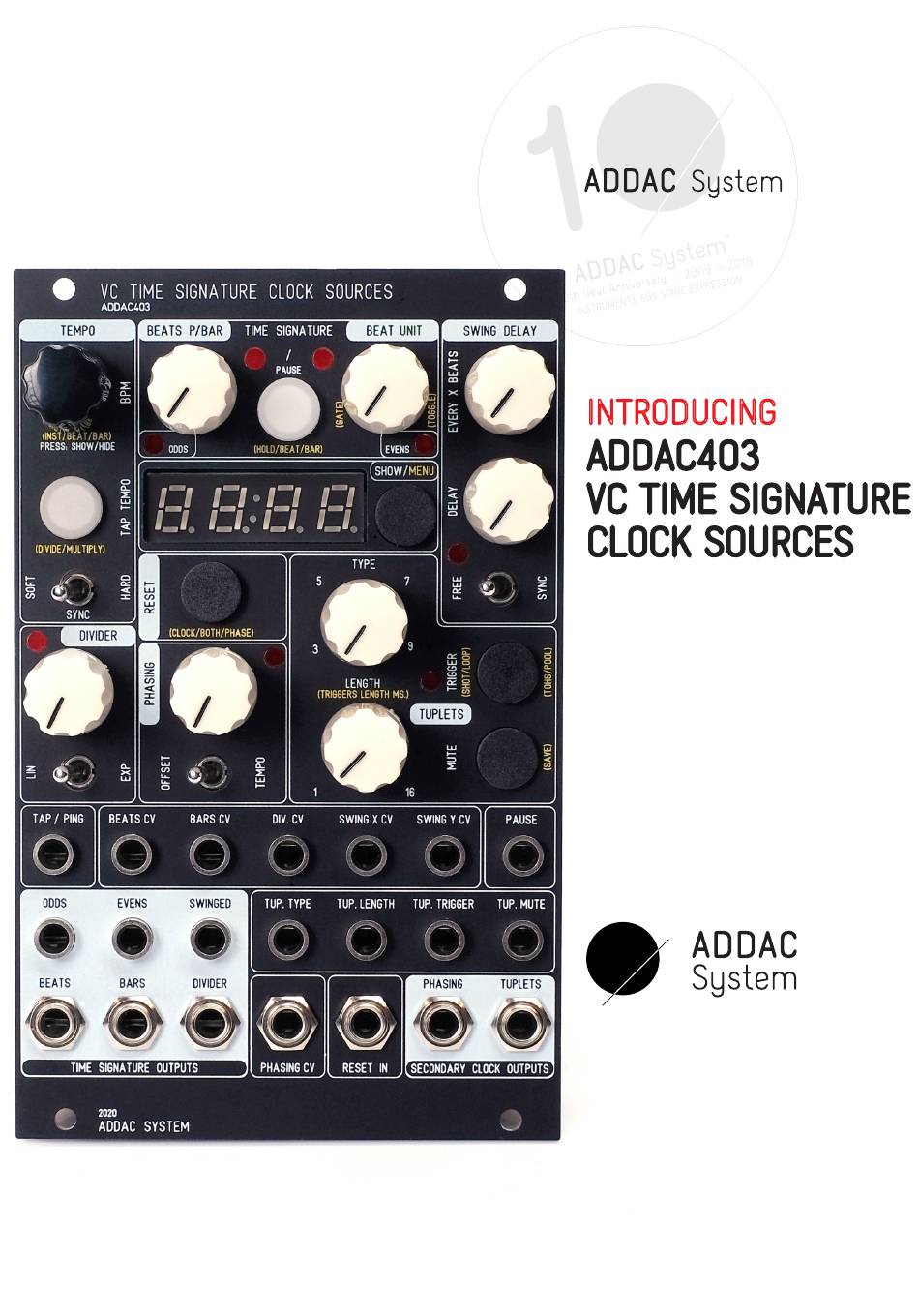

- Page 1 Instruments for Sonic Expression Est.2009 INTRODUCING ADDAC403 VC TIME SIGNATURE CLOCK SOURCES USER’S GUIDE . REV01 October.2020 From Portugal with Love!

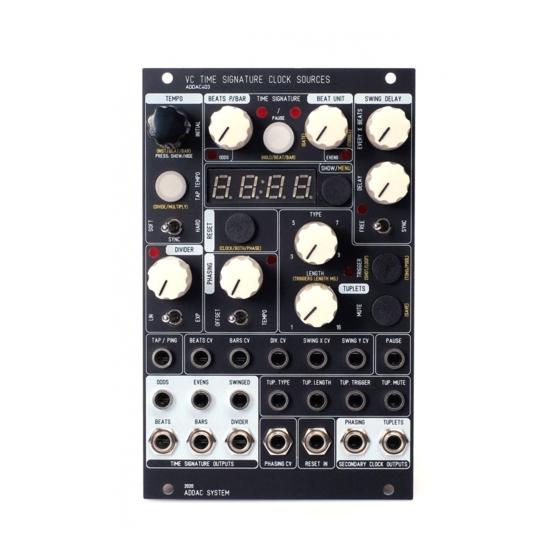

- Page 2 Welcome to: ADDAC403 VC TIME SIGNATURE CLOCK SOURCES USER’S GUIDE Revision.01 November.2020 DESCRIPTION This is our long due Eurorack Clock module, featuring multiple sections for a combined total of 8 independent trigger outputs. Introducing standard time signature musical notation along with the possibility to generate syncopation, irregular tempo ratios and phasing all at once in a single straight forward unit.
- Page 3 ADDAC403 User’s Guide DESCRIPTION CV and TRIGGER Inputs locations All sections feature they’re own monitor LEDs. By default Display shows the current Time Signature status. Pressing the [SHOW/MENU] button sequentially will display each sections settings. After 3 seconds it automatically returns to default Time Signature status.
-
Page 4: Signal Flow Diagram
ADDAC403 User’s Guide SIGNAL FLOW DIAGRAM SHOW/MENU PAUSE PAUSE TRIGGER INPUT RESET RESET TRIGGER INPUT TEMPO (BPM CONTROL) DISPLAY ENCODER TAP TEMPO BEATS GATE OUTPUT TAP/PING: TRIGGER INPUT BARS GATE OUTPUT SYNC: SOFT/HARD ODDS GATE OUTPUT CLOCK GENERATOR EVENS GATE OUTPUT... - Page 5 ADDAC403 User’s Guide CLOCK SECTIONS TEMPO (BPM): BPM can be set with the [BPM] Encoder from 0.1 to 250.0 BPM BPM can also be set by [TAP TEMPO], push button 4 times to set tempo, likewise for CV Input. Button LED will blink at every button push or trigger input.
- Page 6 ADDAC403 User’s Guide CLOCK SECTIONS RESET: [RESET] Button and Trigger In immediatelly resets clock MENU SETTINGS: There’s 3 Reset Modes: CLOCK: Resets Clock. BOTH: Resets Clock & Phasing Clock PHASE: Resets Phasing Clock SWING DELAY: Swing [DELAY] delays one Beat [EVERY X BEATS] [SYNC] The delay can be set to 2 Modes: FREE (0-63): Divides 1 Beat by 64.
- Page 7 ADDAC403 User’s Guide Lorem ipsum CLOCK SECTIONS PHASING: PHASING generates a secondary clock. [PHASING] sets the OFFSET/TEMPO deviation [OFFSET/TEMPO] Sets the Clock Mode: OFFSET: Offset to the main clock (0/16 to 15/16) - same BPM TEMPO: BPM decrease/increase from main clock = -16 to +16 BPM...
- Page 8 ADDAC403 User’s Guide MENU SHOW/MENU: To Enter Menu press [MENU] button for 3 seconds While in MENU STATE [PAUSE] button LED will Blink To Exit Menu press [MENU] Button one time Holding [BPM] encoder while in MENU STATE for 5 seconds Resets the module to “Factory Settings”...
- Page 9 ADDAC403 User’s Guide SAVE SAVE: There’s a single save state that will be recovered at startup. To save the current state get inside the Menu State and press [SAVE] button once. The display will then show: “SAVE” Press [SAVE] button once more.
- Page 10 ADDAC403 User’s Guide CONTROLS OVERALL DESCRIPTION BARS CONTROL PAUSE SHOW/MENU(HOLD) BEATS CONTROL SWING X CONTROL TEMPO : BPM (ENCODER) DELAY CONTROL TAP TEMPO DELAY MODE: SYNC: SOFT/HARD FREE/SYNC RESET TUPLET TYPE TUPLET TRIGGER DIVIDER CONTROL TUPLET LENGTH DIVIDER: TUPLET MUTE...
- Page 11 For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC403 USER’S GUIDE Revision.01 November.2020...
